Assembly Instructions – 4089P
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4
Step 2 – Install Feet

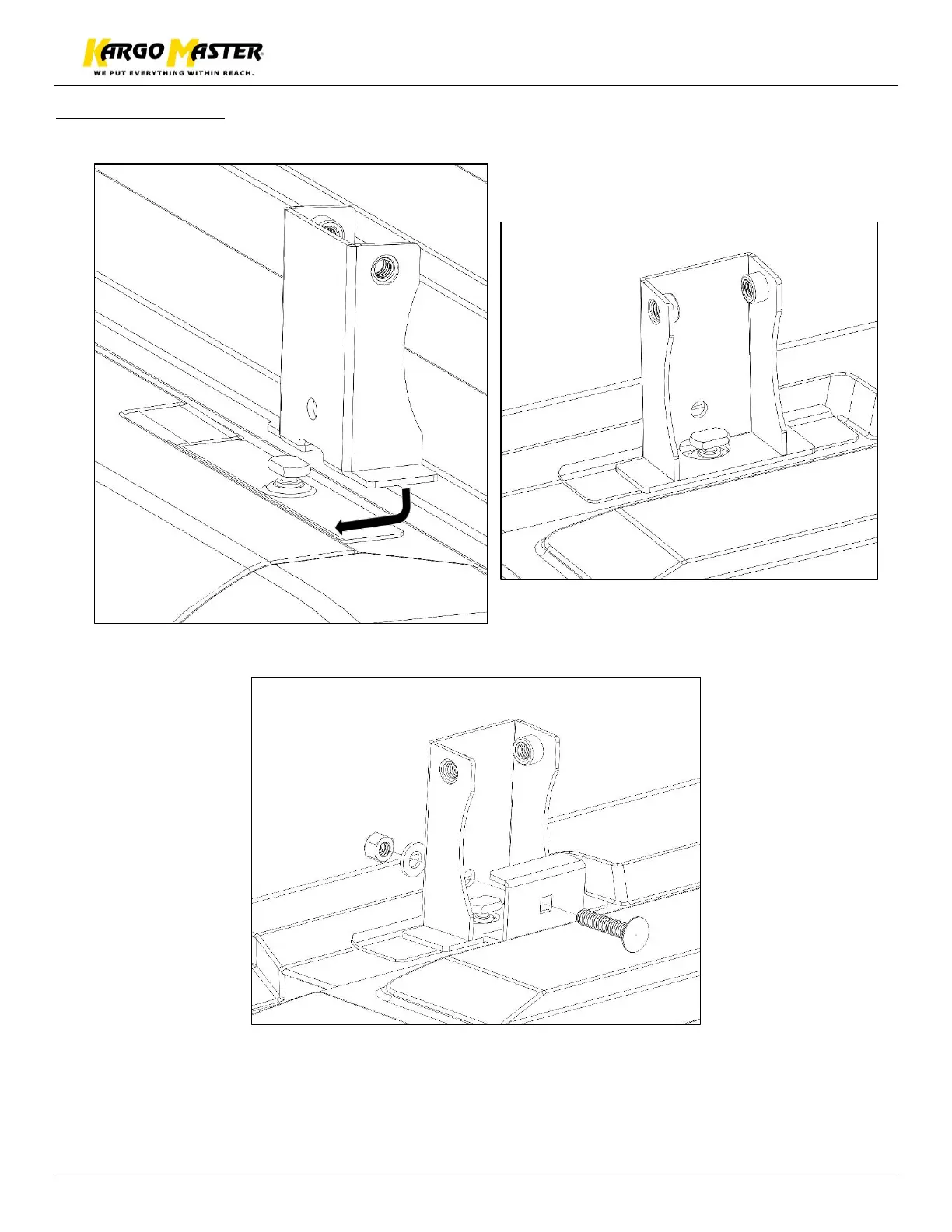

Place foot and mount bracket over the stud protruding from the roof in the orientation shown below.
Bolt through the foot and the mount bracket using a 5/16" x 1-1/2” carriage bolt, a 5/16" flat washer, and a
5/16” lock nut as shown.
Tighten, but allow some movement until the rack is placed onto the feet. DO NOT over-tighten.
Repeat a total of 6 times.
To Next Page
