4.8 Armrest Adjustment
The standard armrest is flip-back height-adjustable armrest.
4.8.1 To flip-back the armrest:
Press the key locker of and lift the armrest up to flip it back. (See Figure
4.27 and 4.28)
4.8.2 To adjust the height of the armrest.
4.8.2.1 Gently press the spring lock at the armrest and lift it up. (See Figure
4.29 and 4.30)
4.8.2.2 Adjust the height as desired.

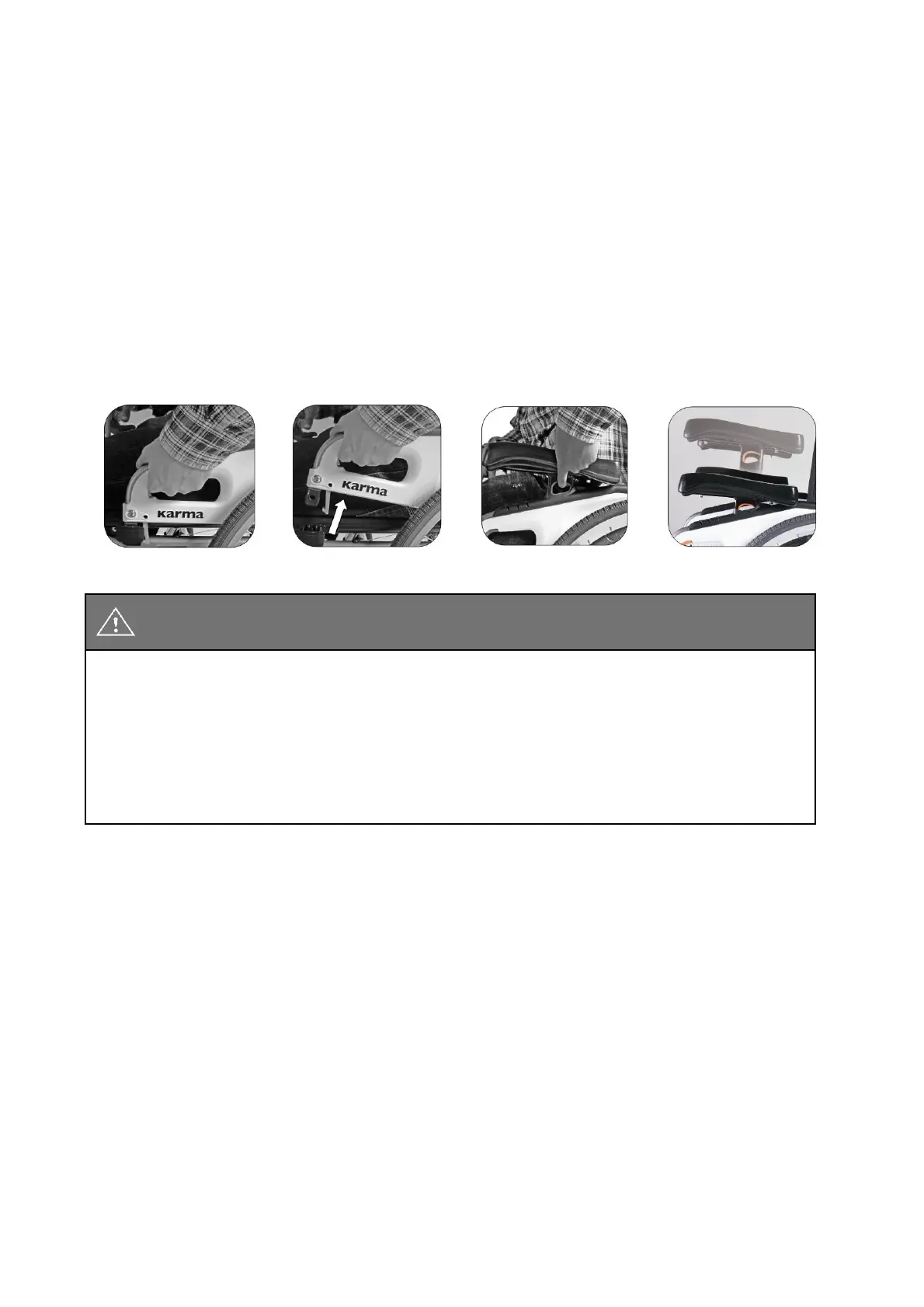

Figure 4.27
Figure 4.28
Figure 4.29
Figure 4.30
CAUTION:
● The adjustment is in increments of 2 cm (5 positions), and the range of
adjustment is 8 cm.
● Before the user uses the armrest to release pressure or transfer, please
make sure that the armrest height is secured in the effective range.
● When the attendant is moving the chair when it is occupied, lower the
armrest to the lowest point.
● Do not sit on the armrest in any circumstances.
4.9 Footplate Height Adjustment
To adjust the footplate height, follow the instruction as listed below:
4.9.1 Use the tool provided by KARMA to loosen the bolts at the bottom part
of the footrest. (See Figure 4.31)
4.9.2 Adjust the height till the user feel comfortable or the user's thighs are
parallel to the ground. Retighten the bolts.
