Karma Flexx HD - ADJUSTMENT MANUAL; Wheelbase Length Adjustment

34
CAUTION:
● Never disassemble or modify the wheelchair frame structure. Otherwise,
injury or damage may occur. This will void the warranty.
● As with any wheelchair, the wheels and tires should be checked
periodically for cracks and wear, and should be replaced. Failure to keep
tires at the correct pressure will reduce the braking efficiency.
5.3 Adjustment Manual
5.3.1 Wheelbase Length Adjustment
Seat Depth = 16"(Flexx HD only)
Align the axle plate with one of the three adjustment holes. There are
four positions possible：(See Figure 5.1)
(1) Factory Setting is Standard position "A". For better stability, please
set it as Passive position "B" or "C".

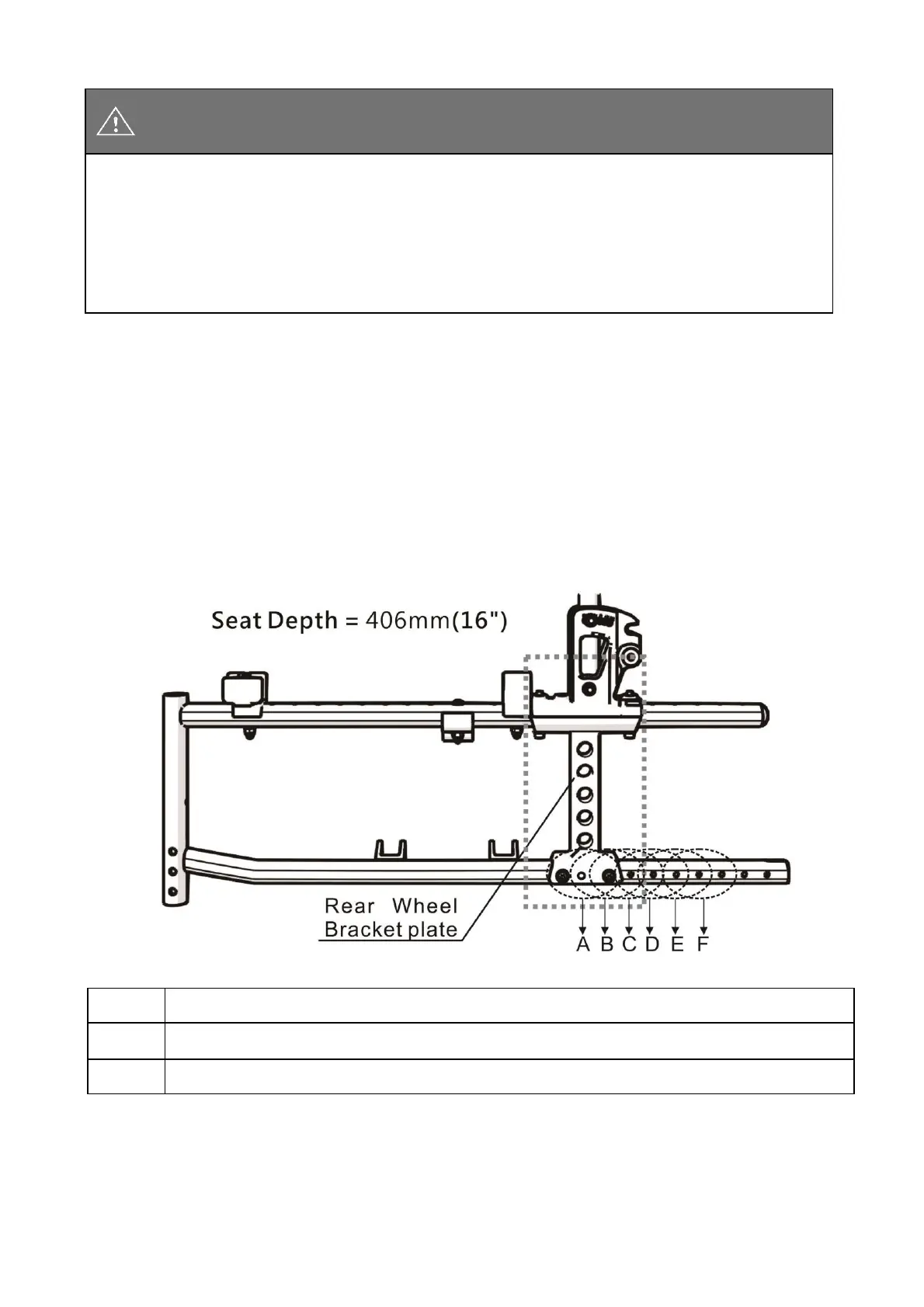

See Figure 5.1
I
Axle plate at A position= Standard position. (Factory Setting)
II
Axle plate at B position= Medium position.
III
Axle plate at C position= Passive position.
