12 Starting Installation

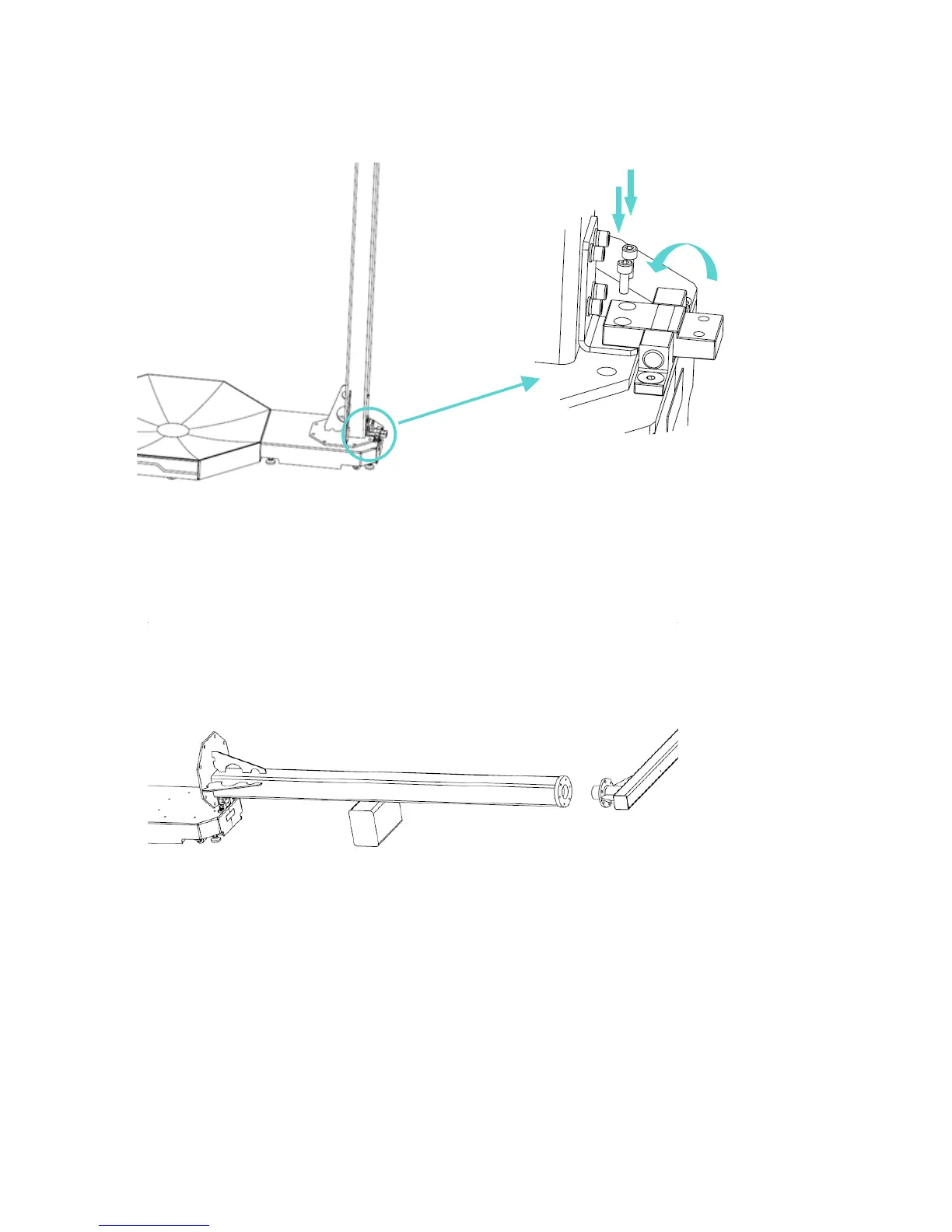

4. At least two persons lift the support pillar and place it at the location on the base plate as shown in the figure. Turn
the hinges to direct the holes on the hinges at the screw holes on the support pillar, and re-install the bolts unscrewed
at the last step.
5. One person holds the pillar to prevent it from toppling, while the other one place a 20cm foam pad (included in the
packing box) at the location where the pillar lies.
6. Place the pillar down with caution.
7. Insert the girder into the support pillar with the flanges closely contacting with each other.
