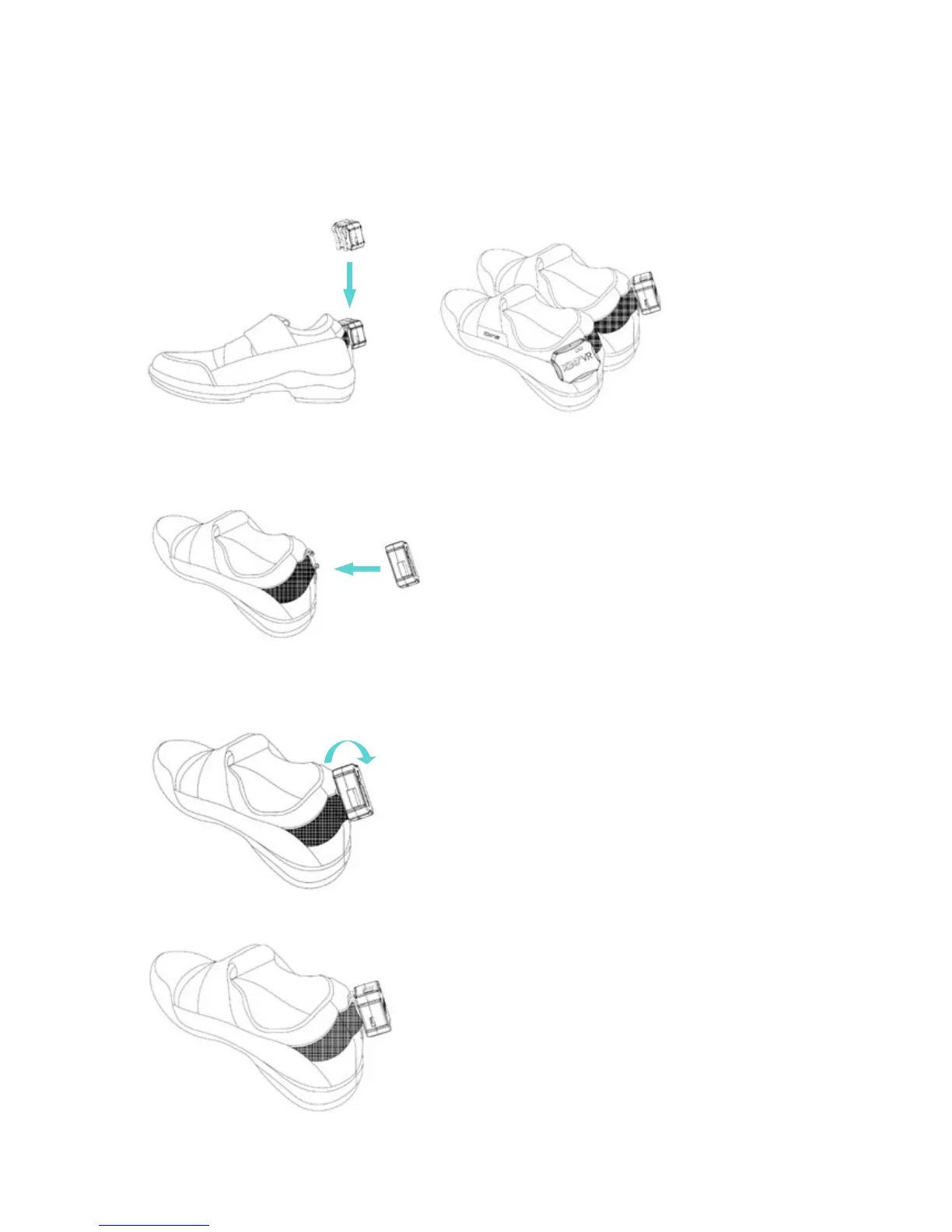

Installation of KATVR-Foot Sensor:
Insert the buckle of the KATVR-Foot Sensor into the external elastic belt of the Shoes and make sure the two sides of the
buckle are inserted into the belt respectively, as shown in the figure:
Installation of the Main Body of KATVR-Foot Sensor:
1. Fix the main body of the KATVR-Foot Sensor to the buckle, as shown in the figure:
2. Turn the main body of the KATVR-Foot Sensor clockwise and if you hear a click sound, it means the installation has
been successfully done.
3. Finish the installation of the KATVR-Foot Sensor.
46 Starting Installation
Installation and Dismantling of KAT SHOES Sensors
