Caution!
Connecting Pads and Pedals
Setup
To prevent electric shock and damage to the device, make sure the power is switched
OFF on the drum and all related device before making any connection.
Standard: KICK, SNARE, TOM1-3, CRASH1, RIDE, HIHAT, HIHAT CONTROL PEDAL
Extended: CRASH2, TOM4
Using the provided cable harness, connect with kick, snare, tom1~tom3, ride, crash, hi-hat, hi-hat control
triggers. Snare, tom, crash1, crash2 and ride pads are stereo input and support double triggering; crash1,
crash2, ride support choke. Hi-hat control pedal is stereo input.
Note:
For details on assembling the drum stand, attaching the digital drum and connecting pads, refer to the Assembly
Instructions.
Bass drum pedal NOT included on some models.

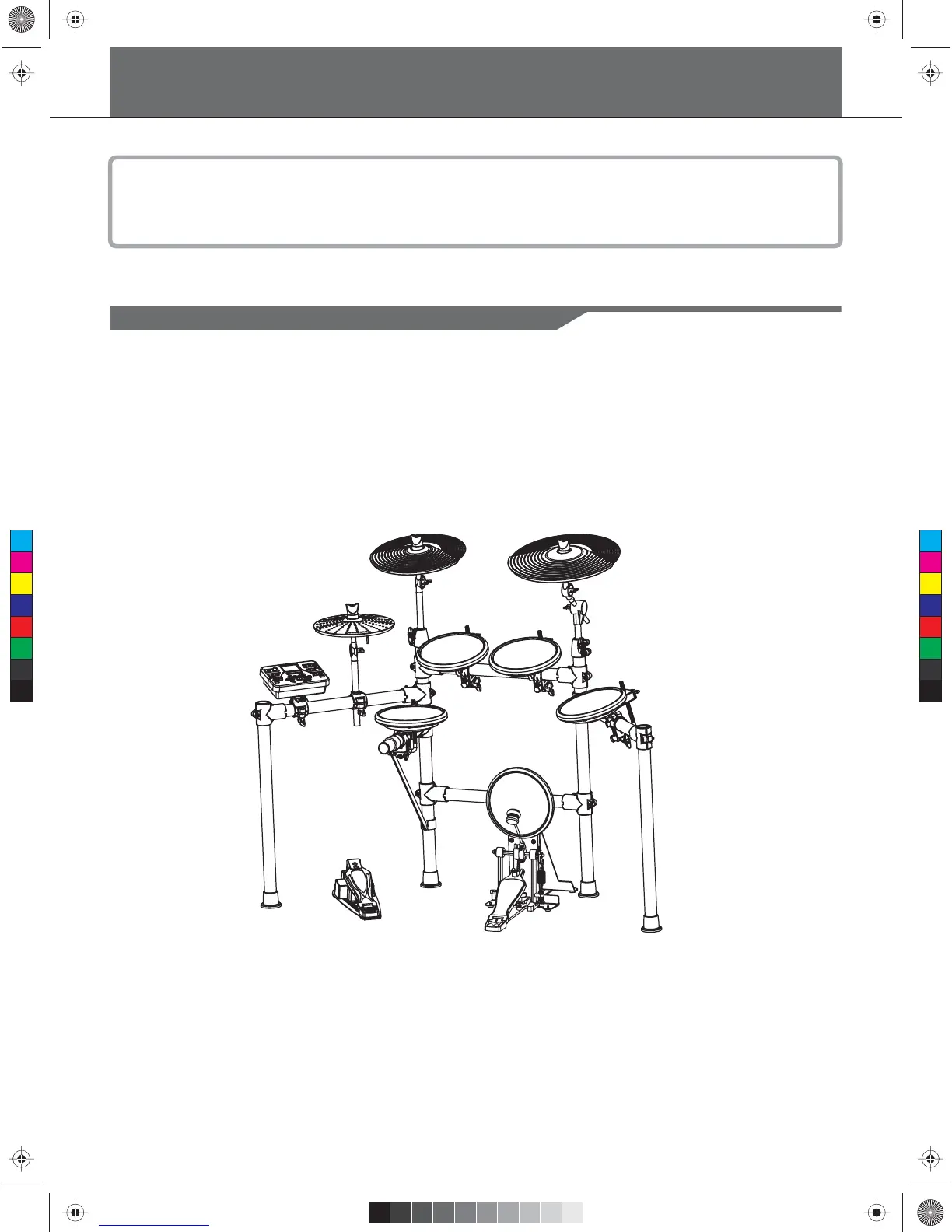

hi-hat
hi-hat control
kick
crash1 ride
tom1
tom2
tom3
snare
Drum Module
