KC-P30 x-series Configuration
Configuration manual V4.09
16
© KEBA
3 Configuration
This chapter describes the necessary configuration for the correct operation
of the charging stations. The following steps are necessary for this:
● Set the DIP switch on the charging station
● Configuration (via the web interface or via USB stick)
Depending on the network configuration, activation of the DHCP server on
the master charging station may be necessary.
3.1 Connection panel
In the connection panel of the charging station are important interfaces and
controls for the configuration of the charging station. To access, the housing
cover and the connection panel cover must be removed. The description of
removing the covers and the connection panel can be found in the "Installa-
tion Manual".
3.2 DIP switch settings
This DIP switch setting must be made for each master and slave charging
station to enable charging station communication.
Caution
Possible damage to the DIP switches!
The DIP switches are rocker switches and not slider switches. The DIP
switches must be pressed and must never be slid.

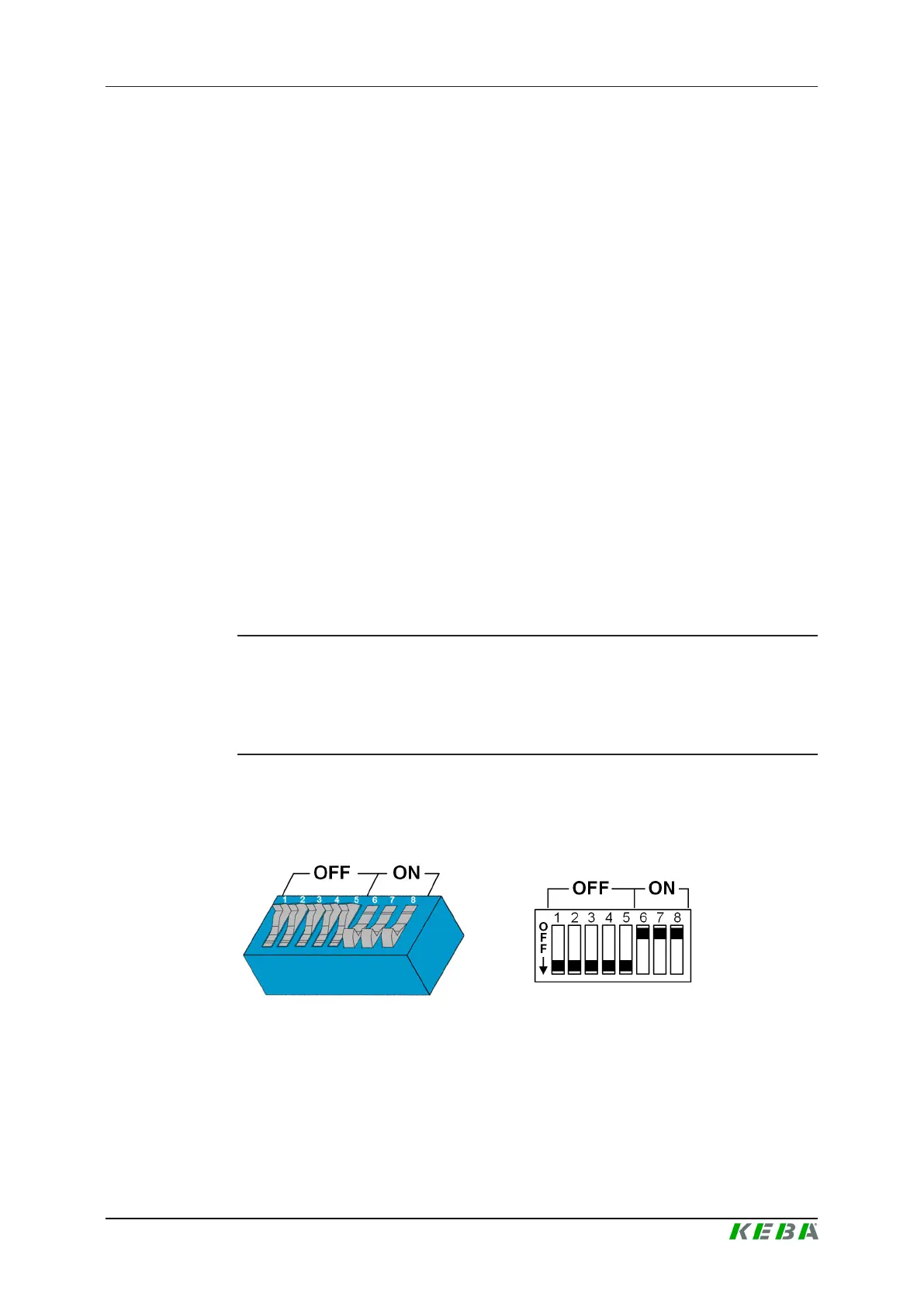

ON/OFF position of the rocker switches
The illustration shows the position of the rocker switches for the setting ON
and OFF
The DIP switches are located under the connection panel cover. The follow-
ing figure shows only the affected DIP switches, others are not shown. The
following setting must be made on the DIP switch DSW2:

Keba KeContact X Series Specifications

General

Charging power	Up to 22 kW
Protection degree	IP54
Voltage	400 V AC
Connector type	Type 2
Communication	Ethernet
Charging current	6 - 32 A (configurable)
