KeepRite DLCDHR - Dimensions − Indoor; Indoor Unit Dimensions; Indoor Mounting Plate

328 080000 01 3
Specifications subject to change without notice.
DIMENSIONS − INDOOR

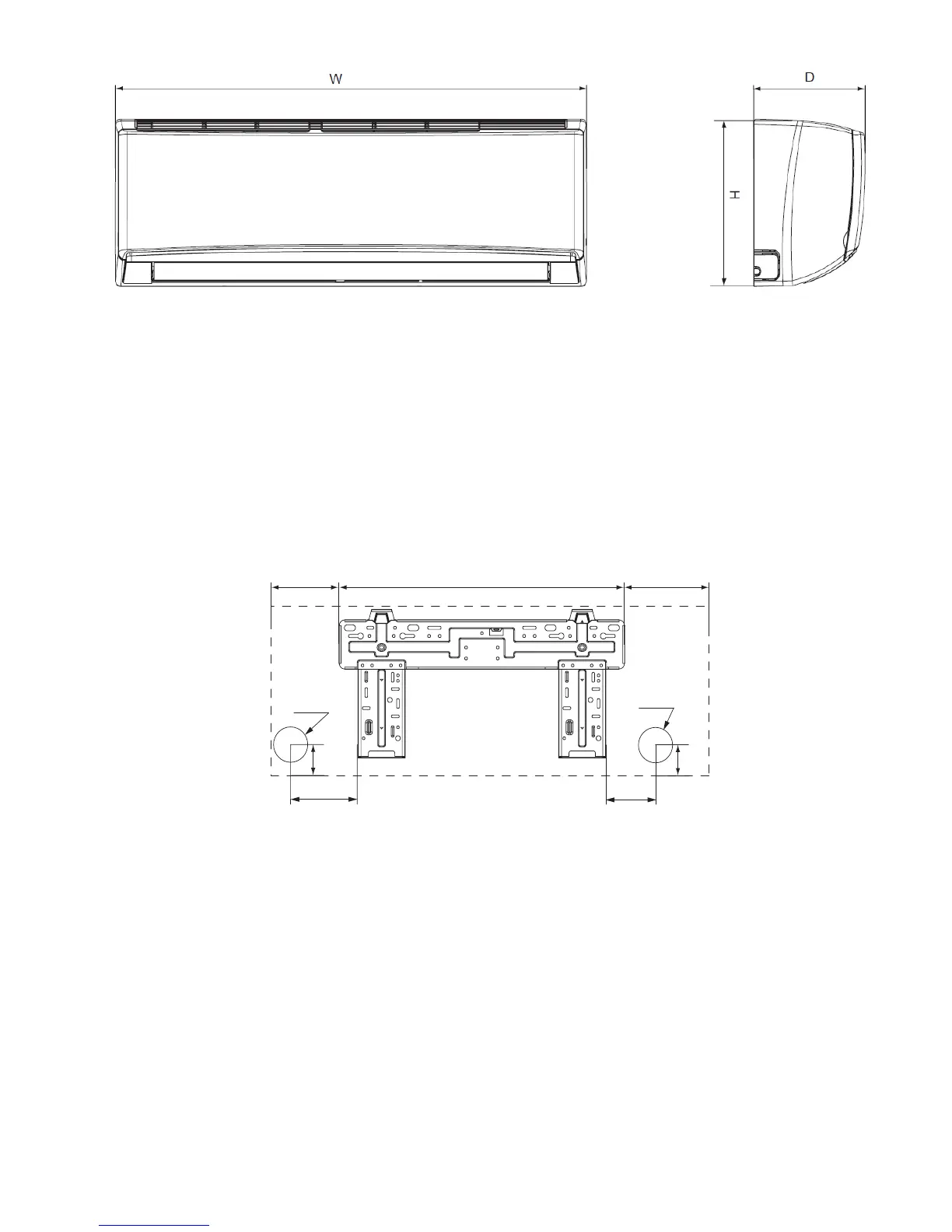

Fig. 1 - Indoor Unit Dimensions
Table 1—DLFCAB / DLCCAR / DLFCHB / DLCCHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K 36K
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 11.4 11.4 11.4 11.4 11.8 12.8 12.8 12.8
Width (W) in 33.3 33.3 33.3 33.3 38.2 42.4 53.1 53.1
Depth (D) in 8.2 8.2 8.2 8.2 8.8 9.7 10 10
Weight-Net lbs 23.2 23.2 22.1 22.1 27.6 34.2 41.9 41.9
Table 2—DLFDAB / DLCDAR / DLFDHB / DLCDHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K* 36K*
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 10.8 11.4 10.8 11.4 11.8 12.8 12.8 12.8
Width (W) in 31.1 33.3 31.1 33.3 38.2 42.4 53.1 53.1
Depth (D) in 7.9 8.2 7.9 8.2 8.8 9.7 10 10
Weight-Net lbs 19.8 22.1 19.8 23.2 29.8 37.5 41.9 41.9
A
C
B
D
D
E
E
F
H
Fig. 2 - Indoor Mounting Plate
Table 3—DLFCAB / DLCCAR / DLFCHB / DLCCHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K 36K
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
A in 4.7 4.7 4.7 4.7 4.0 8.1 13.8 13.8
B in 21.3 21.3 21.3 21.3 27.0 27.0 29.4 29.4
C in 7.3 7.3 7.3 7.3 7.2 7.3 10.0 10.0
D in 2.2 2.2 2.2 2.2 2.2 2.8 2.8 2.8
E in 1.4 1.4 1.4 1.4 1.5 1.7 1.6 1.6
F in 5.0 5.0 5.0 5.0 7.5 6.0 11.6 11.6
H in 3.3 3.3 3.3 3.3 5.5 3.1 3.5 3.5
Table 4—DLFDAB / DLCDAR / DLFDHB / DLCDHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K* 36K*
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
A in 6.6 4.7 6.6 4.7 4.0 8.1 13.8 13.8
B in 18.2 21.3 18.2 21.3 27.0 27.0 29.4 29.4
C in 6.3 7.3 6.3 7.3 7.2 7.3 10.0 10.0
D in 2.2 2.2 2.2 2.2 2.2 2.8 2.8 2.8
E in 2.1 1.4 2.1 1.4 1.5 1.7 1.6 1.6
F in 6.0 5.0 6.0 5.0 7.5 6.0 11.6 11.6
H in 3.5 3.3 3.5 3.3 5.5 3.1 3.5 3.5
NOTE: * Sizes 30 and 36 not available as Cooling Only.
