WIRING DIAGRAM INDOOR UNIT − DLFCAB/DLFCHB (CONT)

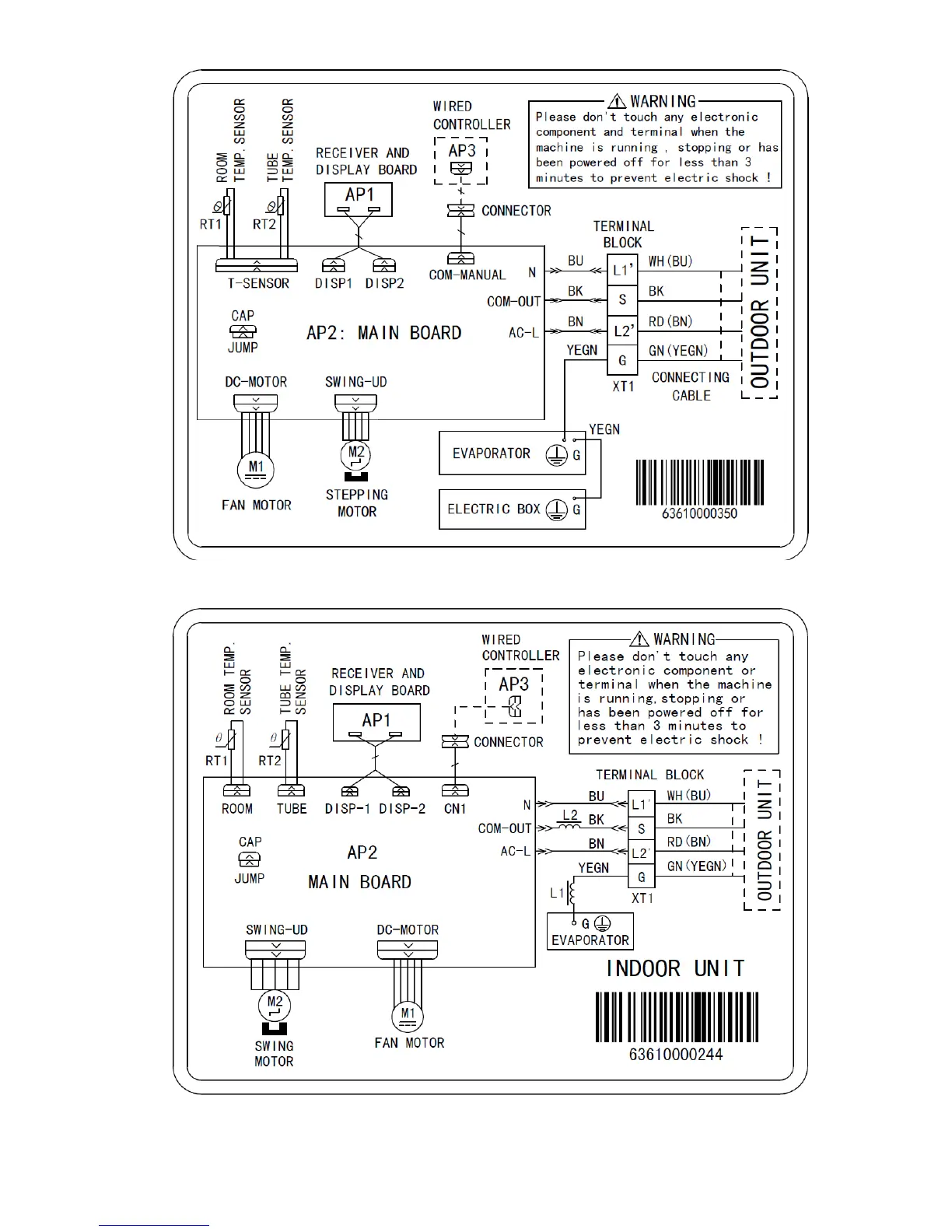

Fig. 10 - Indoor Unit Sizes 18 − 24 (208/230V)
Fig. 11 - Indoor Unit Sizes 30 − 36 (208/230V)
