DIMENSIONS - OUTDOOR
N
M
H
D
W
S
P

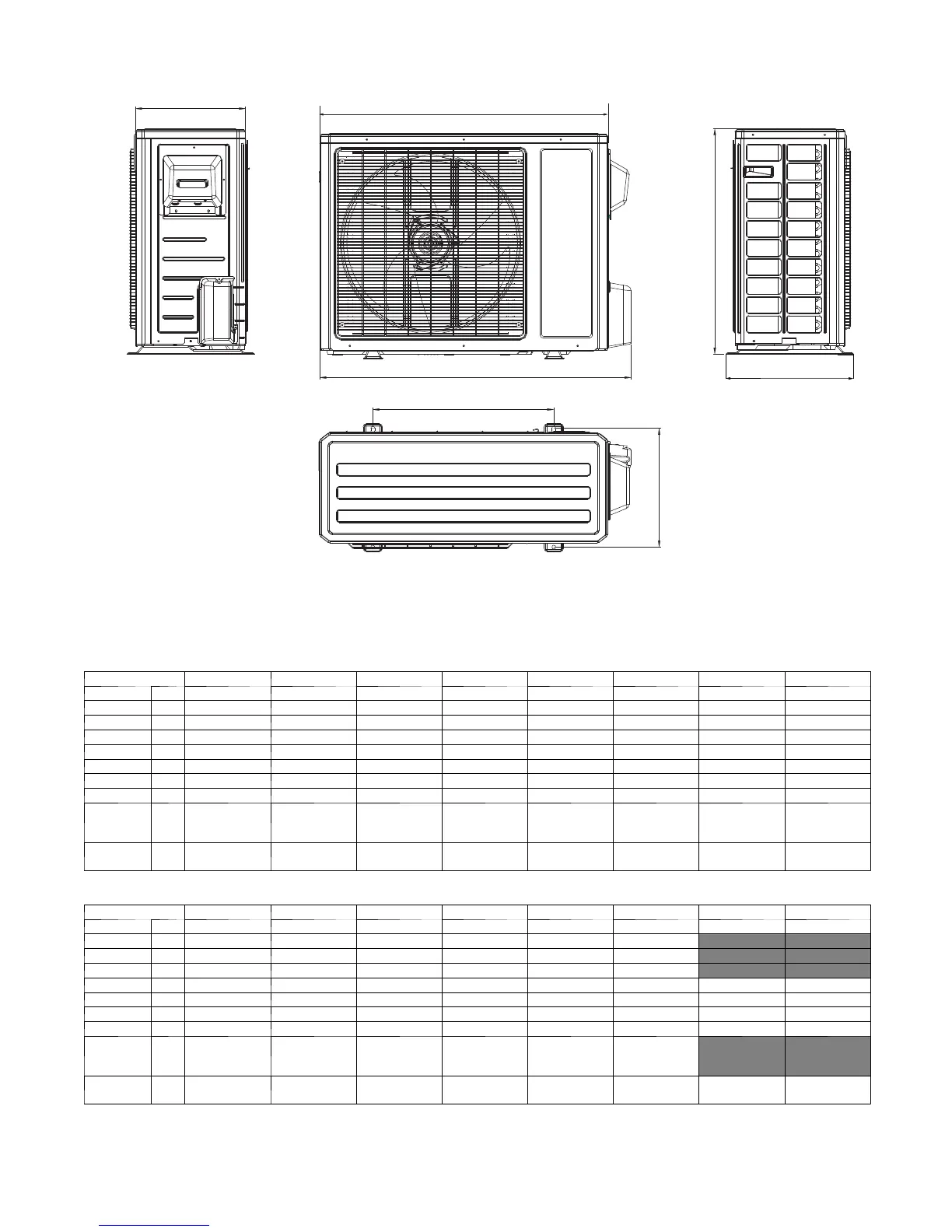

Fig. 3 - Outdoor Unit
Table 12—DLFCAB / DLCCAR / DLFCHB / DLCCHR
System Size 9K 12K 9K 12K 18K 24K 30K 36K
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 21.3 23.3 21.3 23.3 27.6 31.1 31.1 31.1
Width (W) in 33.4 33.4 33.4 33.4 37.6 38.6 38.6 38.6
Depth (D) in 12.6 12.6 12.6 12.6 15.6 16.8 16.8 16.8
M in 10.0 10.0 10.0 10.0 13.4 14.6 14.6 14.6
N in 30.0 30.0 30.0 30.0 35.0 36.2 36.2 36.2
P in 21.3 21.3 21.3 21.3 22.0 24.0 24.0 24.0
S in 11.3 11.3 11.3 11.3 14.3 15.6 15.6 15.6
NET Weight
Cooling
Only
lbs 62.8 73.9 72.8 80.5 113.6 147.7 152.1 154.4
NET Weight
Heat Pump
lbs 71.7 77.2 78.3 86 114.7 142.2 154.4 161
Table 13—DLFDAB / DLCDAR / DLFDHB / DLCDHR
System Size 9K 12K 9K 12K 18K 24K 30K* 36K*
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 21.3 21.3 21.3 21.3 27.6 27.6
Width (W) in 30.6 30.6 30.6 30.6 37.6 37.6
Depth (D) in 12.6 12.6 12.6 12.6 15.6 15.6
M in 10.1 10.1 10.1 10.1 13.4 13.4 14.6 14.6
N in 28.0 28.0 28.0 28.0 35.0 35.0 36.2 36.2
P in 20.0 20.0 20.0 20.0 22.0 22.0 24.0 24.0
S in 11.3 11.3 11.3 11.3 14.3 14.3 15.6 15.6
NET Weight
Cooling
Only
lbs 59.5 63.9 66.2 70.6 90.4 103.6
NET Weight
Heat Pump
lbs 62.8 67.3 65.0 69.5 95.9 110.3 154.4 161.0
NOTE: * Sizes 30 and 36 not available as Cooling Only.
