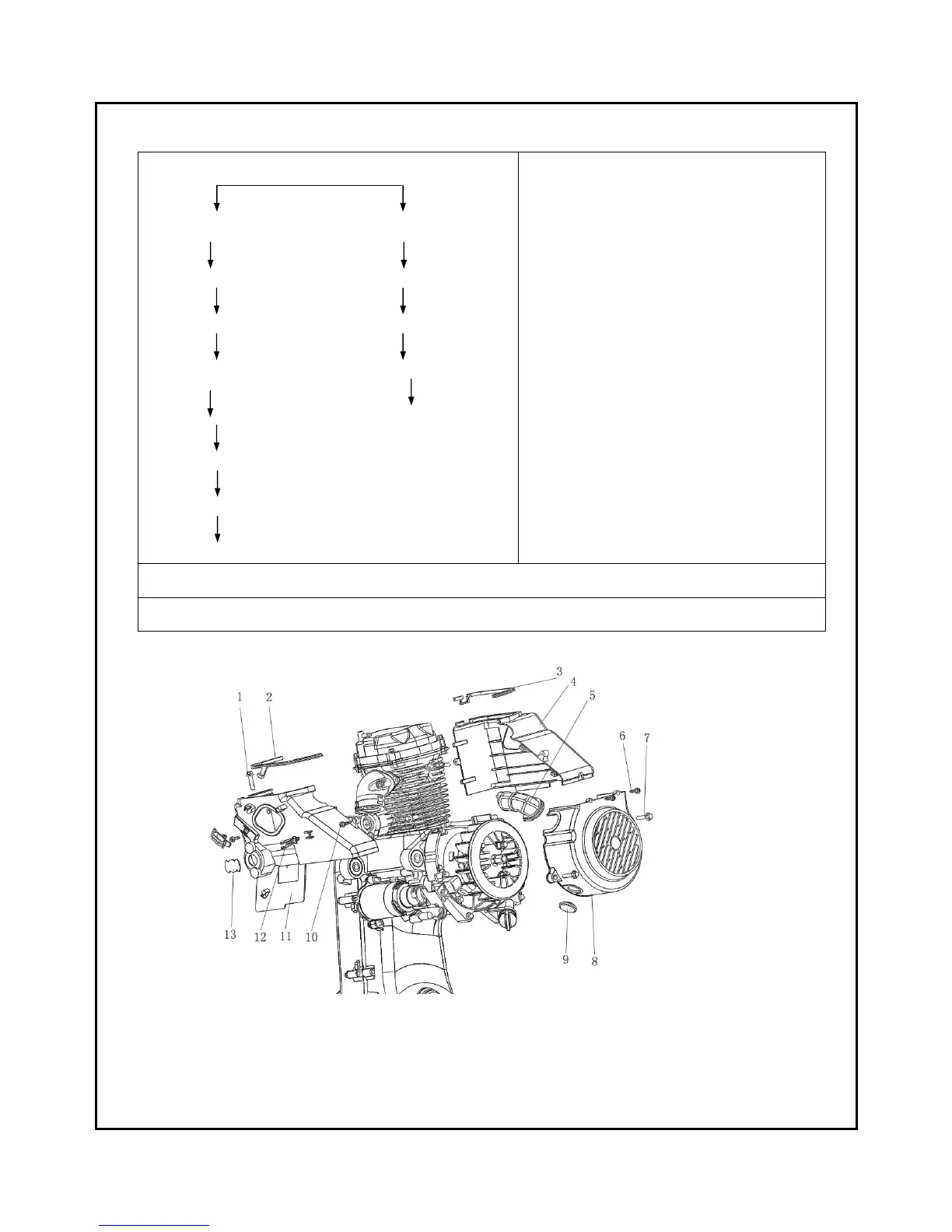

C O W L I N G A S S E M B LY
REMOVAL:
Scrrew (10) screw (6)
Bolt (1) bolt (7)
Top cowling (11) fan whorl cover assy. (8)
Bottom cowling (4) pastern cover (9)
Top cowling seal gasket (2) cooling pipe (5)
Bottom cowling seal gasket (3)
Coil clip (12)
Pastern cover (13)
Whorl cover screw(6) 2N.M
Whorl cover bolt (7) 11N.M
Cowling screw (10) 2N.M
Cowling bolt(1) 11N.M
installation
The installation sequence is essentially the reverse of removal.
Notice: avoid missing cowling seal bar.
