NOTE：
：：
：when bleeding the brakign system, replenish the brake fluid reservoir if necessary.
Make sure that there is always some fluid visible in the reservoir.
Close the bleeder vavle, disconnect the pipe. Fill the reservoir with brake fluid to the upper end of the
inspection window.
BLEEDER VALVE
TIGHTENING TORQUE: 6-9N.m(0.6-0.9kg-m,4.5-6.5lb-ft)
CAUTION：
Handle brake fluid with care: the fluid reacts
chemically with paint, plastics, rubber materials, etc.
Rear brake

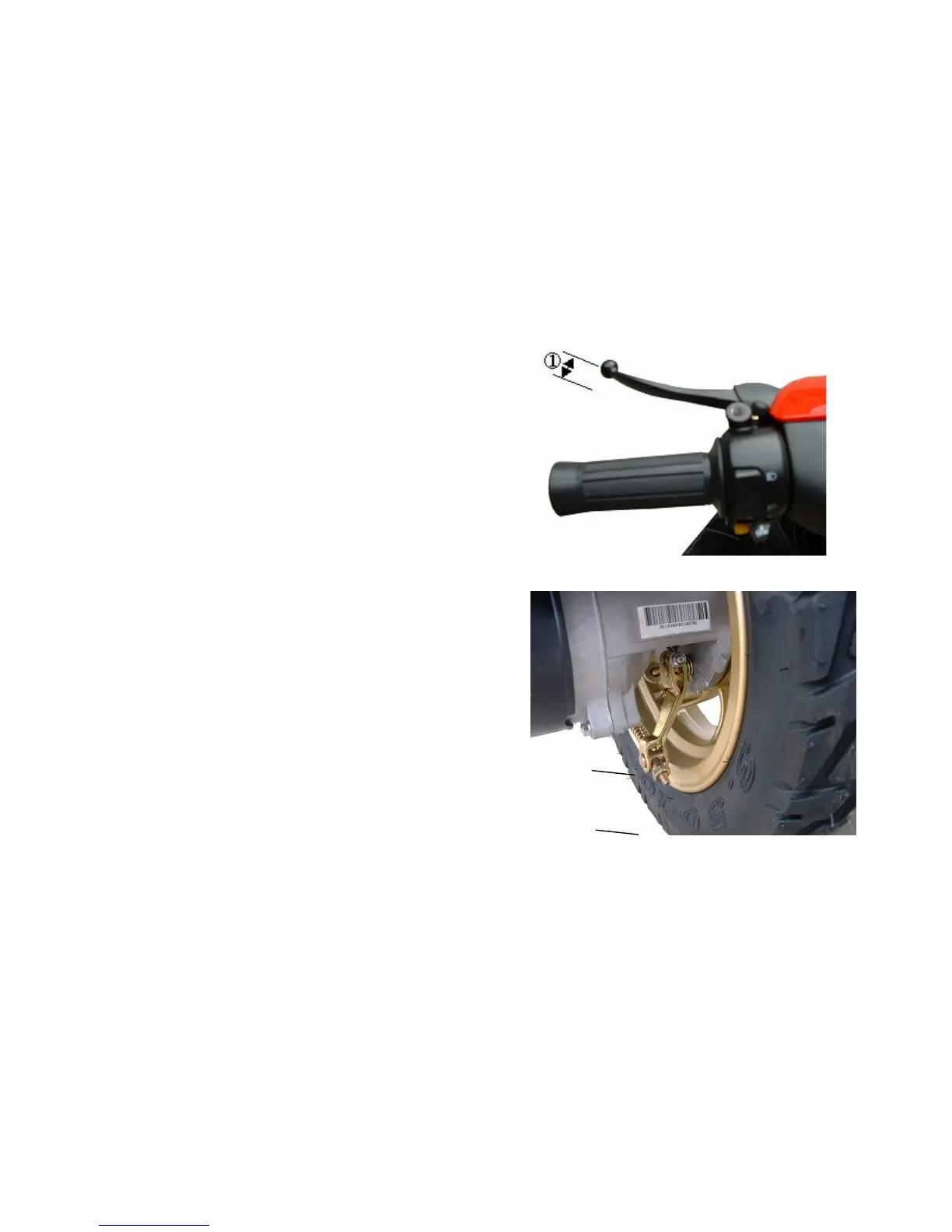

Turn adjusting nut ① so that the the play ② of
Brake lever is 15-25MM as shown in the illustration.
Brake shoe wear：
The vehicle is equipped with the brake lining limit
Indicator ③ on the rear brake.
Inspect brake lining limit as follows：
1. First check if the brake system is properly
Adjusted.
2. when operating the brake, check to see that
the tip of indicator ③ is within the range ④.
3. if the tip of indicator is beyond the range,
the brake shoe assembly should be raplaced with a ②
new set of shoe.
②
To Next Page
