KEEWAY HURRICANE Maintenance Manual

32

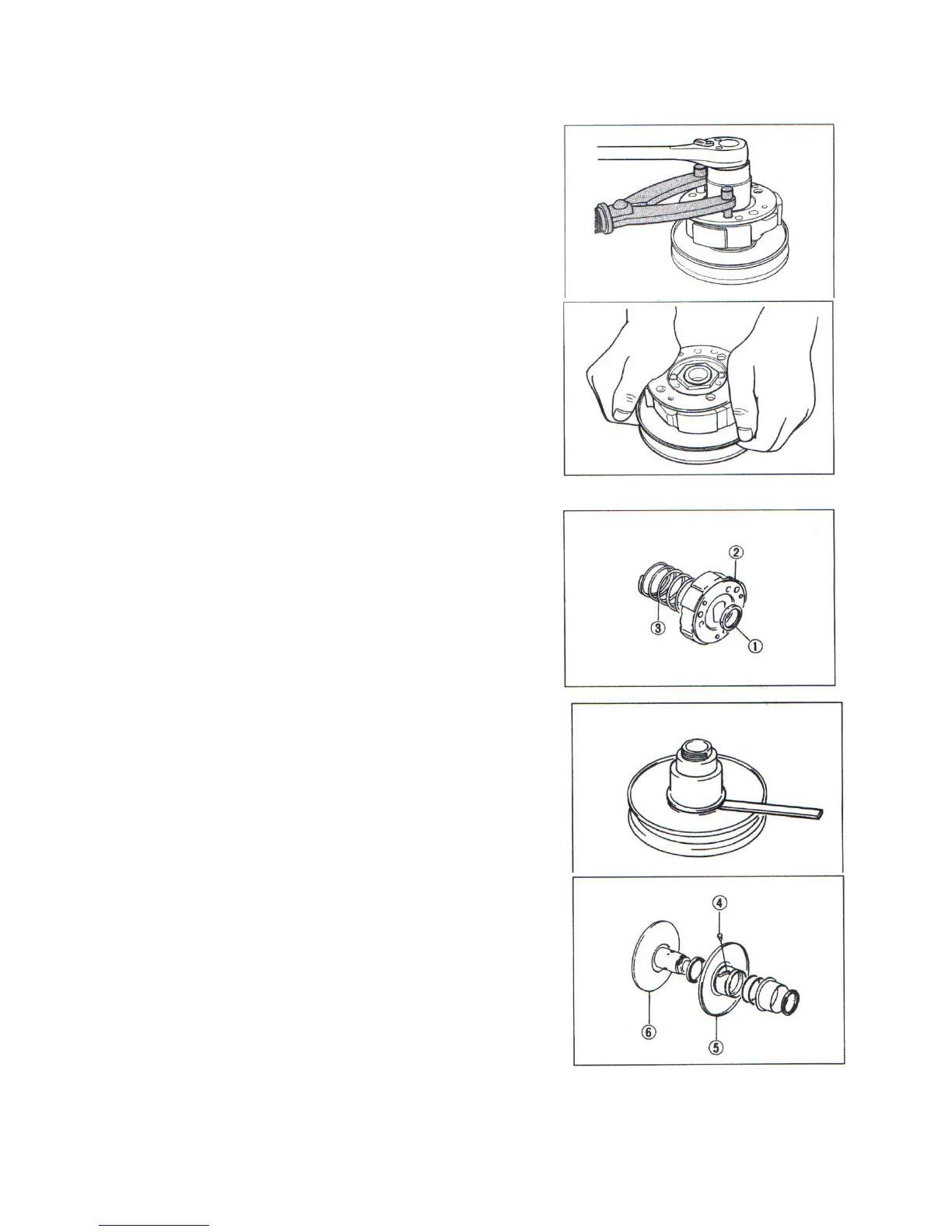

Unscrew clutch shoe nut with special tools.
 Remove the nut while holding down clutch
shoe assy. by both hands as shown in the
illustration.
WARNING：Gradually back off the clutch shoe
assy. pressed down by hands to counter the clutch
sparing load. Releasing the hand suddenly may
cause the following parts to fly apart.
①nut
②clutch shoe
③spring
CAUTION：
：：
：
Do not attempt to disassemble the clutch
shoe assy. Otherwise the clutch shoe may be
damaged.
 Using a screwdriver or the like, pry up the
movable driven face spring guide.
● Remove the pins④, movable driven face⑤ and
fixed driven face⑥.

KEEWAY HURRICANE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Height	1120 mm
Engine Type	Single cylinder, 4-stroke
Max Torque	9.2 Nm @ 6500 rpm
Cooling System	Air cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
