KEEWAY HURRICANE Maintenance Manual

51

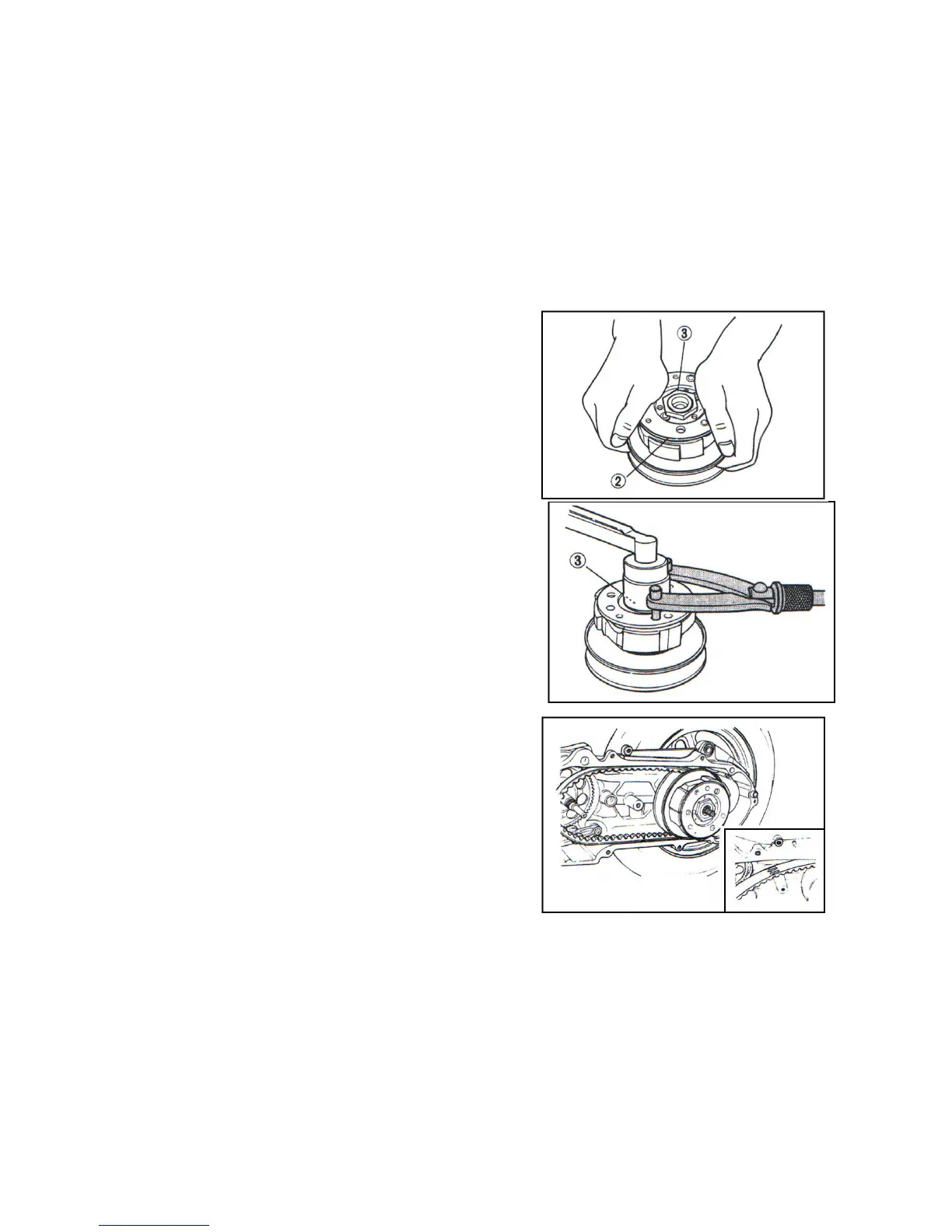

 Install the movable driven face seat①.
 install the clutch shoe assembly② and nut
③.
 tighten the nut③ to the specified torque
with the special tool.
tightening torque：
：：
：40-60 N.M
(4.0-6.0kg.m 29.0-43.5Ib-ft)
 insert the V-belt between the driven faces as deep inside
possible while pulling the movable driven face all the way
outside to provide the maximum ble clearance.
CAUTION:
the belt should be positioned so that the arrows on the belt
periphery point the normal turning direction.
The V-belt contact face on the driven faces should be
thoroughly cleaned to be free from oil.
 Thoroughly clean the clutch housing to be free from oil and
position it over the clutch shoe assembly.
 tighten the clutch housing nut to the specified torque with
the special tool.
Torque：
：：
：40-60 N.M
(4.0-6.0kg.m 29.0-43.5Ib-ft)

KEEWAY HURRICANE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Height	1120 mm
Engine Type	Single cylinder, 4-stroke
Max Torque	9.2 Nm @ 6500 rpm
Cooling System	Air cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
