Identification

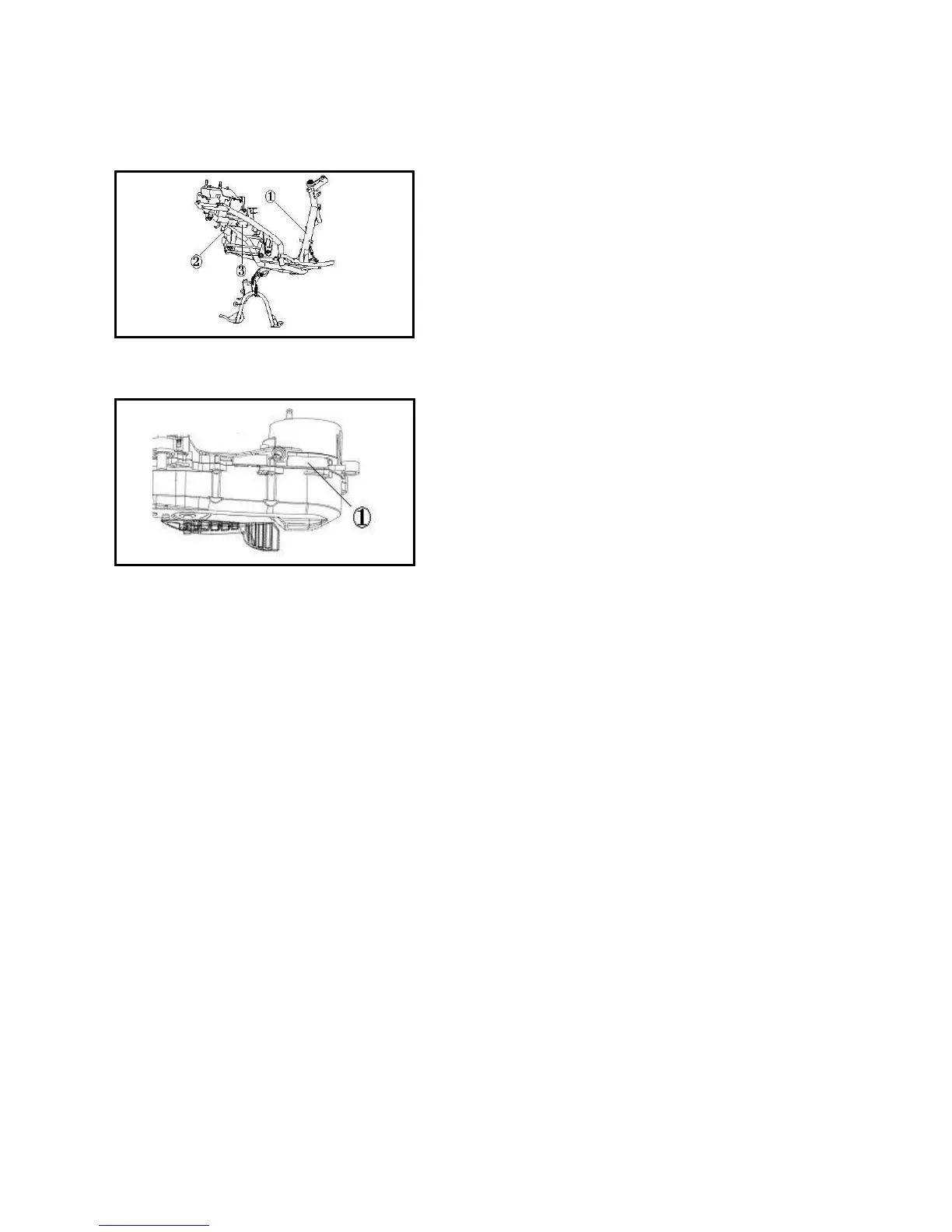

1. The identification number of motorcycle is marked at the
frame ① : ;BBB941E?????????. The frame sign and the
anti-refitting sticker are fixed at the back of the frame. Take the
view from the back of the frame, the frame sign is fixed at the
left ②and the on the right③. The frame sign is fixed with rivets
and the anti-refitting sticker is sticked with glue.
Fig. 1-1
2．The engine serial number① is printed on the shell of
crankcase. See fig. 1-2. The engine serial number is set like:
KW1E40QMB-4*口口口口口口口口*.
Fig. 1-2
Significant Notes
1. Please apply valid Qianjiang parts and accessories. Any part or accessory not in accordance with the design
specification of Qianjiang Company may cause damage to engine.
2. Only metric tools are valid for maintenance and repair. Metric screws, bolts and nuts can not be exchanged with
imperial fasteners.
3. New gaskets, O-rings, cotter pins and locking pieces shall be applied for re-assembly.
4. Bolts with large diameter or positioned inside shall be fastened first and then diagonally screw down until
reaching required torque, otherwise there is special instruction.
5. Wash disassembled parts with cleanser. Lubricate all sliding surface before assembly.
6. Check whether all the parts and accessories are correctly mounted and operated after assembly.
7. Clean and remove oil before measurement. Add recommended lubricant to the lubricating areas during assembly.
8. Apply lubricant to the surface of engine and driving system if they are dismantled for long-term storage, which
can prevent rust and dirt.
