KEEWAY QJ50T-21U User Manual

11
Special Tools
Special tools refer to tools which are specially designed for assembling or disassembling some motorcycle
parts on special positions. Applicable special tools are necessary for precise adjustment and installation. With them,
parts and accessories can be mounted safely, reliably and rapidly, which improves efficiency and saves energy.
1．Tools for repairing the engine
Special tools are required for properly disassembling/assembling some engine parts.

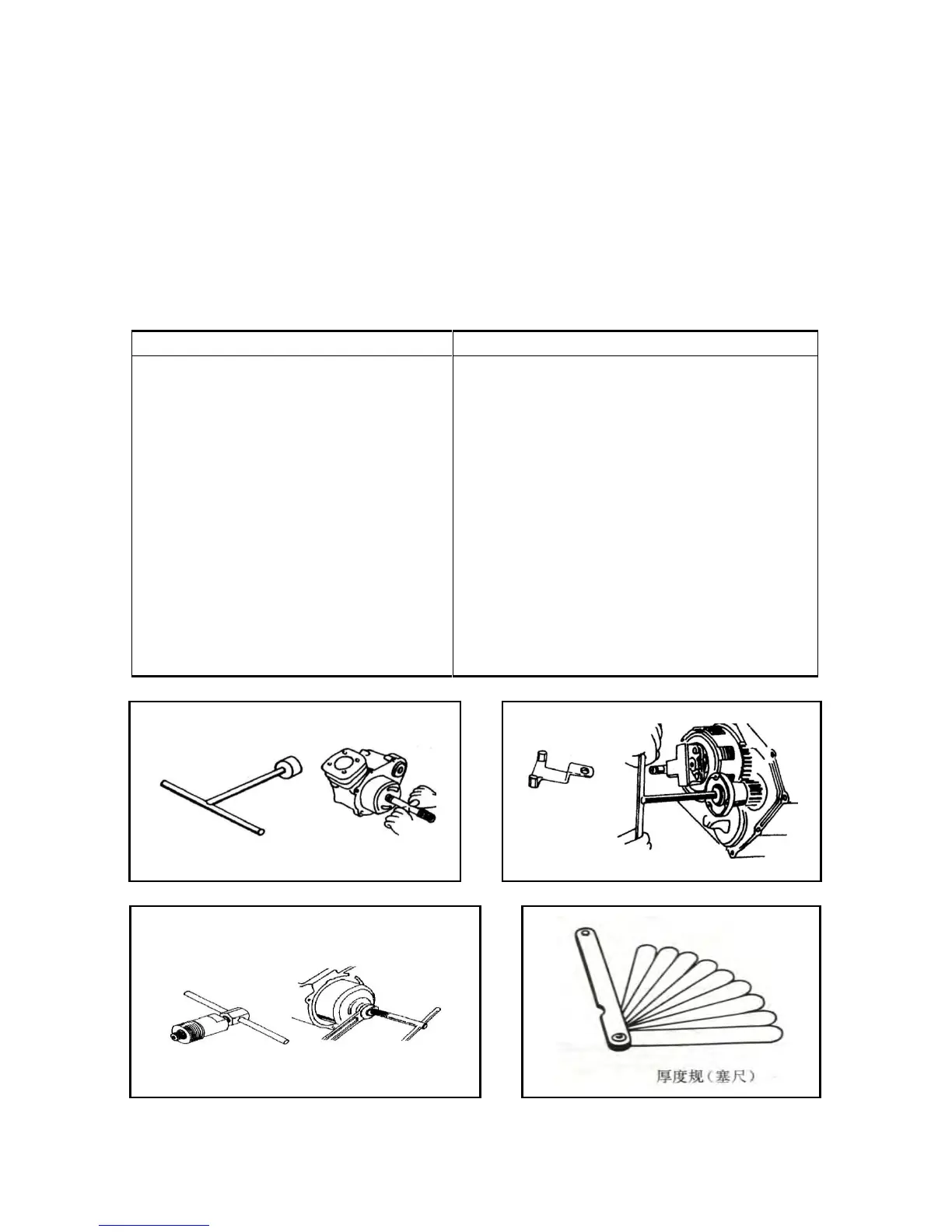

Table and drawing (1-1, 1-2) of special tools for disassembling/assembling engine parts are as follows:
Table 1-1
Name
Remark
Special socket spanner
Clutch clamp holder
Flywheel puller
Feeler gauge
Bearing disassembly tools
Bearing assembly tools
Oil seal remover
Handle for dismantling tools
Piston pin pulling device
Piston pin pliers
Socket spanner for spark plug
Clutch thickness measuring device
Cylinder diameter measuring device
Dial indicator
Used for assembling/disassembling bolts for flywheels, Fig. 1-3
Fig. 1-4
Fig. 1-5
Fig. 1-6
Fig. 1-7
Fig. 1-8
Fig. 1-9
Fig. 1-10
Fig. 1-11
Fig. 1-12
Fig. 1-13
Fig. 1-14
Fig. 1-15
Measuring the inner diameter of piston pin, Fig. 1-16
Table 1-2 (continued)
Fig.1-3 Fig.1-4
Fig.1-5 Fig.1-6 厚度规 （塞尺）：feeler gauge
