KEEWAY QJ50T-21U User Manual

90

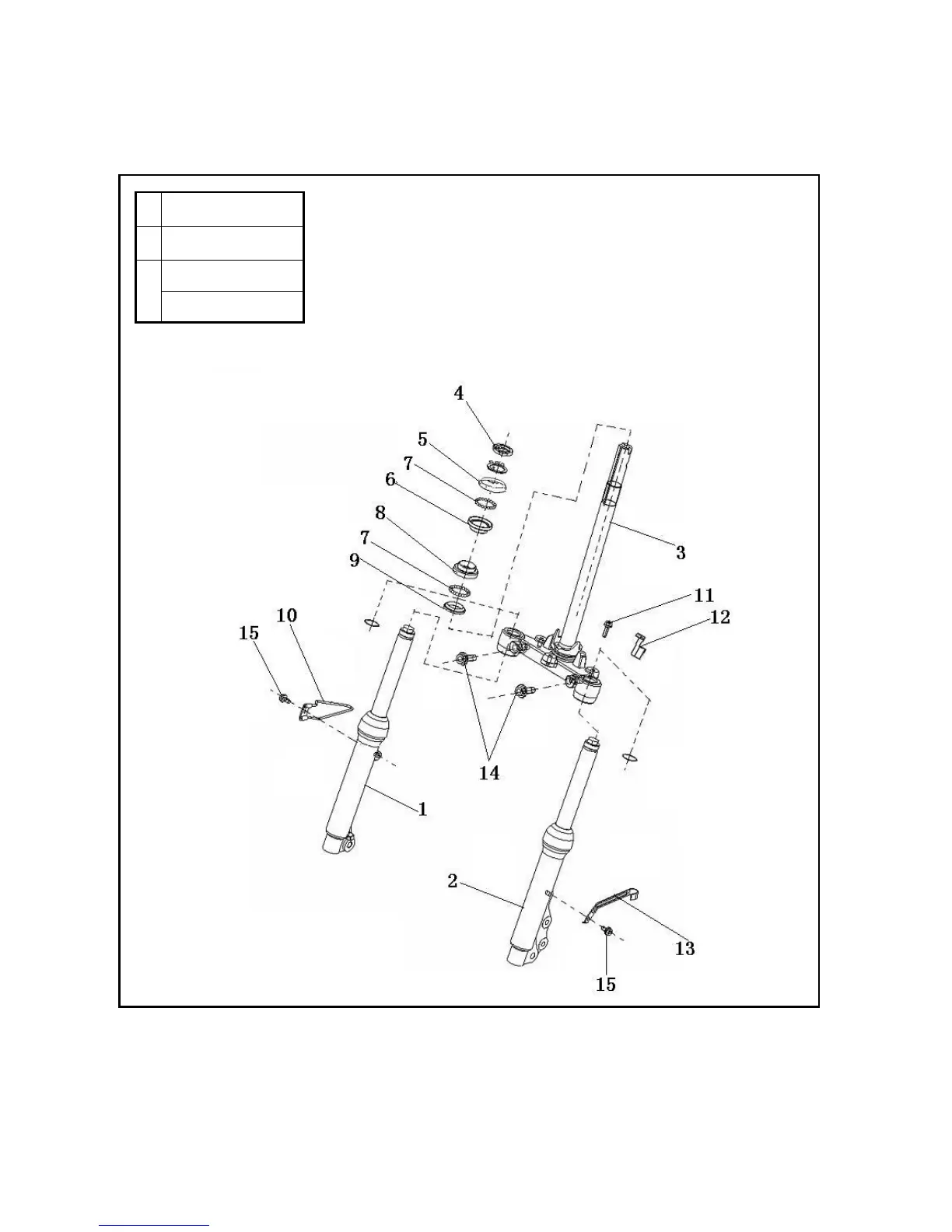

Front Suspension
1 front right absorber assembly 2 front left absorber assembly 3 weld assembly of lower connecting bracket 4
gland nut 5 dust cover 6 one-piece cup 7 steel ballφ5 8 upper cup of the lower bearing 9 lower
cup of the lower bearing 10 odometer cable clamp 11 bolt M6×12 12 brake cable clamp 2 13 brake
cable clamp 1 14 bolt M10×1.25×30 15 bolt M6×16
A
Torque for mounting
bolt 14: 37-44N·m
B
Torque for mounting
bolt 15: 5-9 N·m
C
Number of upper steel
balls: 21 pcs
Number of lower steel
balls:: 21 pcs
