Inspection and Maintenance of Exhaust Emission System
Muffler

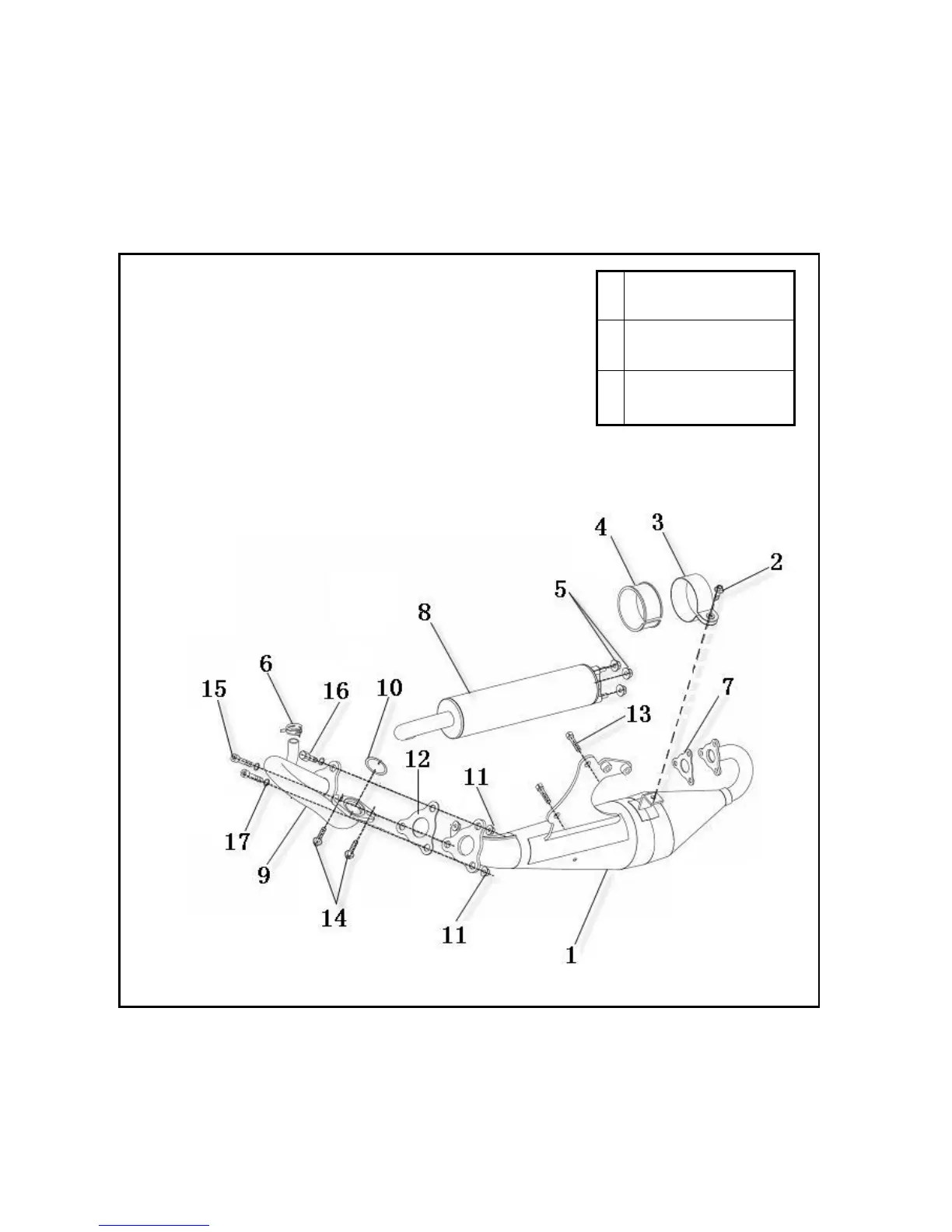

1 muffler tube assembly 2 bolt M6×20 3 muffler hoop 4 heat-insulating rubber 5 acorn nut M6 6
plate-type hoop φ17.5 7 connecting flange gasket 8 housing unit 9 exhaust pipe front section 10
graphite wound gasket 11 nut M6 12 connecting flange gasket 13 bolt M8×20 14 bolt M6×16 15
screw M6×25 16 screw without head M6×25 17 gasket 6mm
A
Torque for fastening fixing
screw 15 of the muffler
connecter: 5-9 N·m
B
Torque for fastening fixing
bolt 13 of the muffler: 22-29
N·m
C
Torque for fixing bolt 14
of front emission
system: 5-9 N·m
