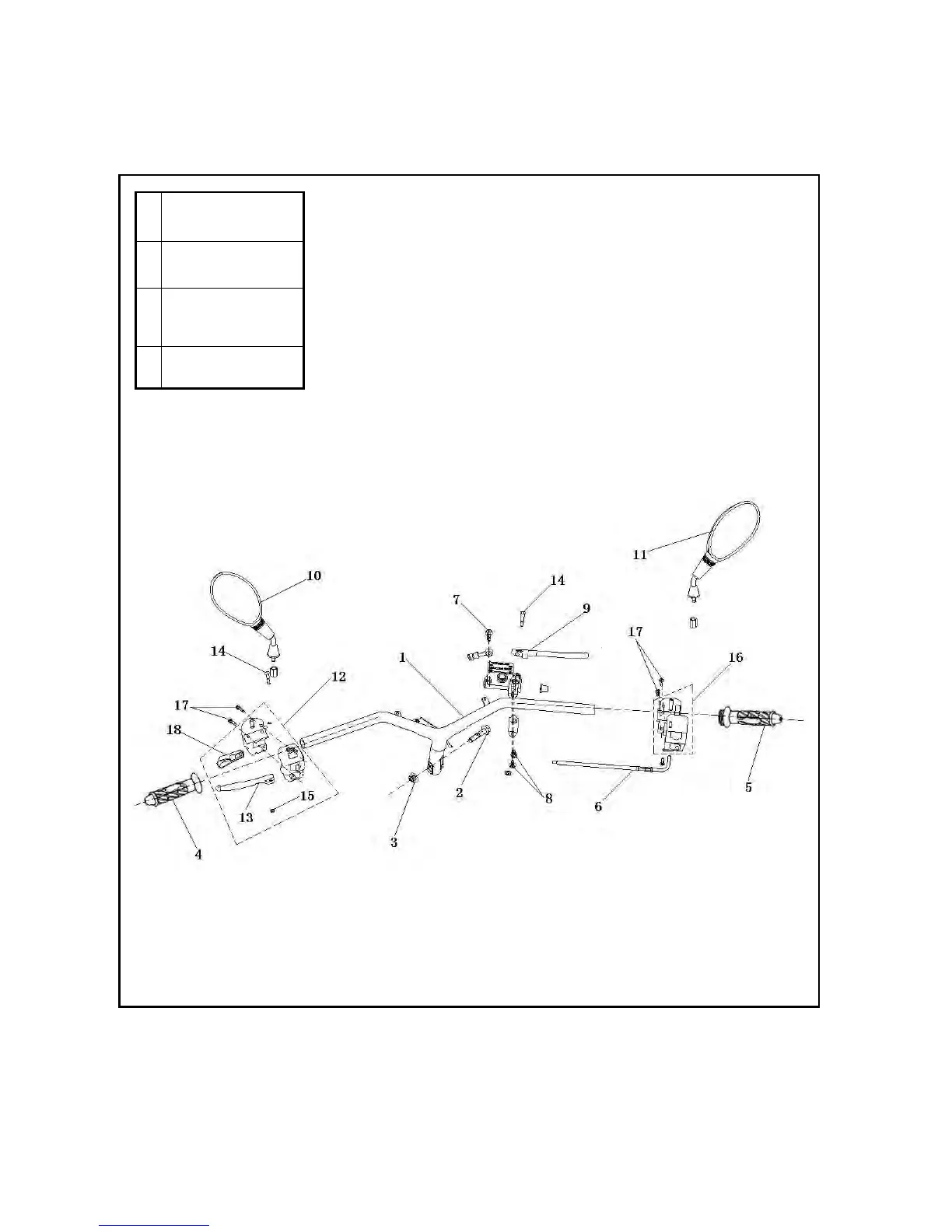

Handlebar
1 handlebar weld assembly 2 bolt M10×1.25×45 3 nut M10×1.25 4 left grip 5 throttle lever 6
throttle cable assembly 7 flat screw M5×25 8 screw M5×10 9 fuel brake handle 10 left rearview
mirror assembly 11 right rearview mirror 12 left combined switch 13 left handle 14 handle set screw
M5 15 nut M5 16 right combined switch 17 flat screw M5×20 18 throttle cable jacket
A
Torque for mounting
bolt 2 (handlebar fixing
bolts): 40-60N·m
B
Free stroke of front
brake handle:
10-20mm
C
Free stroke of rear
brake handle:
10-20mm
D
Free stroke of throttle
lever : 2-5mm
