KEF LS50 Meta User Manual

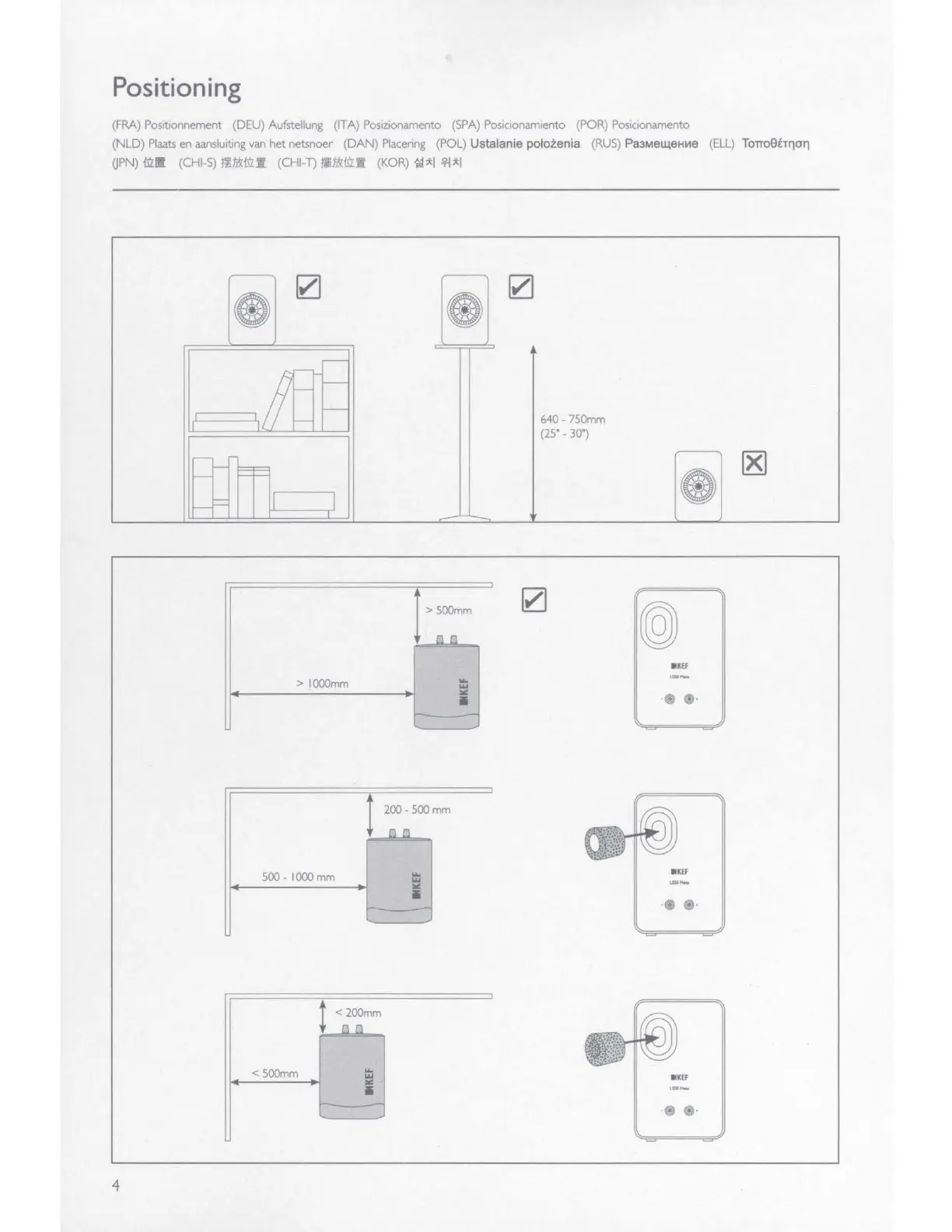

Positioning
(FRA) Positionnement (DEU) Aufstellung (!TA) Posizionamento (SPA) Posicionamiento (POR) Posicionamento
(NLD) Plaats en aansluiting van het netsnoer (DAN) Placering (POL) Ustalanie poloi:enia (RUS) Pa3M8ll.\8Hllle (ELL) Ton-o8 t rricrri
QPN) f:iLDI (CHI-S) ~~fiL'I (CHI-T) !i~uLI (KOR) ~ *I ~*I
> 1000mm
!
500- 1000 mm
t
< 200mm
on
< 500mm
...
...
""
•
4
~
> 500mm
on
e
•
200- 500mm
no
...
Ii:;!
•
640- 750mm
(25" - 30")

KEF LS50 Meta Specifications

General

Frequency Range	47Hz - 45kHz (-6dB)
Crossover Frequency	2.1kHz
Amplifier Requirements	40-100W
Sensitivity	85dB (2.83V/1m)
Weight	7.8kg (17.2 lbs)
Maximum Output	106dB
Type	Bookshelf
Drive Units	Uni-Q driver array: 25mm (1in.) vented aluminum dome tweeter with Metamaterial Absorption Technology (MAT), 130mm (5.25in.) magnesium/aluminum alloy cone
Frequency Response	47Hz - 45kHz (-6dB)
Nominal Impedance	8 Ohms (min. 3.5 Ohms)
Dimensions	302 x 200 x 280.5 mm (11.9 x 7.9 x 11.0 in.)
Finishes	Carbon Black, Titanium Grey, Mineral White, Royal Blue
