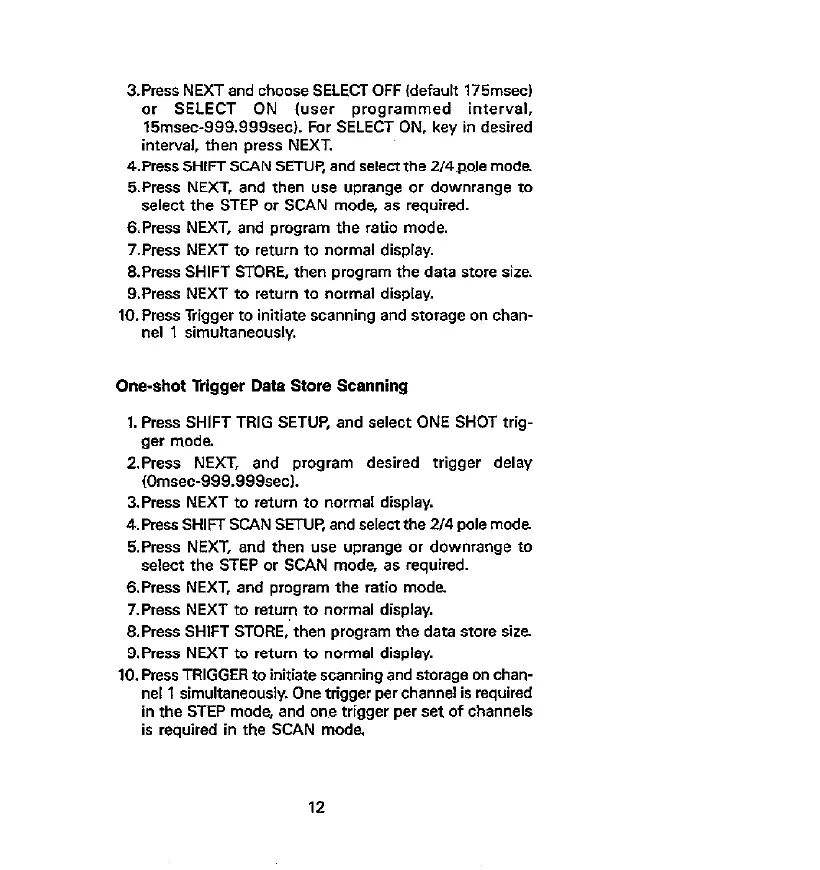

3.Press NEXT and choose SELECT OFF (default 176msecI
or SELECT ON (user programmed interval,
15msec-999.999secl. For SELECT ON, key in desired
interval, then press NEXT.
4.Press SHIFT SCAN SETUP, and select the 2Kpole mode.
5Press NEXT, and then use uprange or downrange TO
select the STEP or SCAN mode, as required.
6.Press NEXT, and program the ratio mode.
7.Press NEXT to return tc normal display.
&Press SHIFT STORE, then program the data store size.
9.Press NEXT to return to normal display.
tO.Press Trigger tc initiate scanning and storage on chan-
nel 1 simultaneously.
One-shot Rigger Data Store Scanning
1. Press SHIFT TRIG SETUP. and select ONE SHOT trig-
ger mode.
2,Press NEXT, and program desired trigger delay
(Omsec-999.999sec).
3.Press NEXT to return to normal display.
4.press SHIFT SCAN SETUP, and select the Z/4 pole mode
S.Press NEXT, and then use uprange or downrange to
select the STEP or SCAN mode. as required.
&Press NEXT, and prcgram the ratio mode
7.Press NEXT tc retur? to normal display.
9.Press SHIFT STORE, then program the dam store size
S.Press NEXT to return to normal display.
10. Ress TRIGGER to initiate scanning and storage on chan-
nel 1 simultaneously. One trigger per channel is required
in the STEP mode, and one trigger per set of channels
is required in the SCAN mode.
