Selecting channels for a scan
To select channels from the front panel:
1. From the Build Scan screen, select Add Group of Channels to access the 2001-TCSCAN
channel list. If you selected the channels for your scan from the Channels tab on the swipe
screen, you can skip this step.

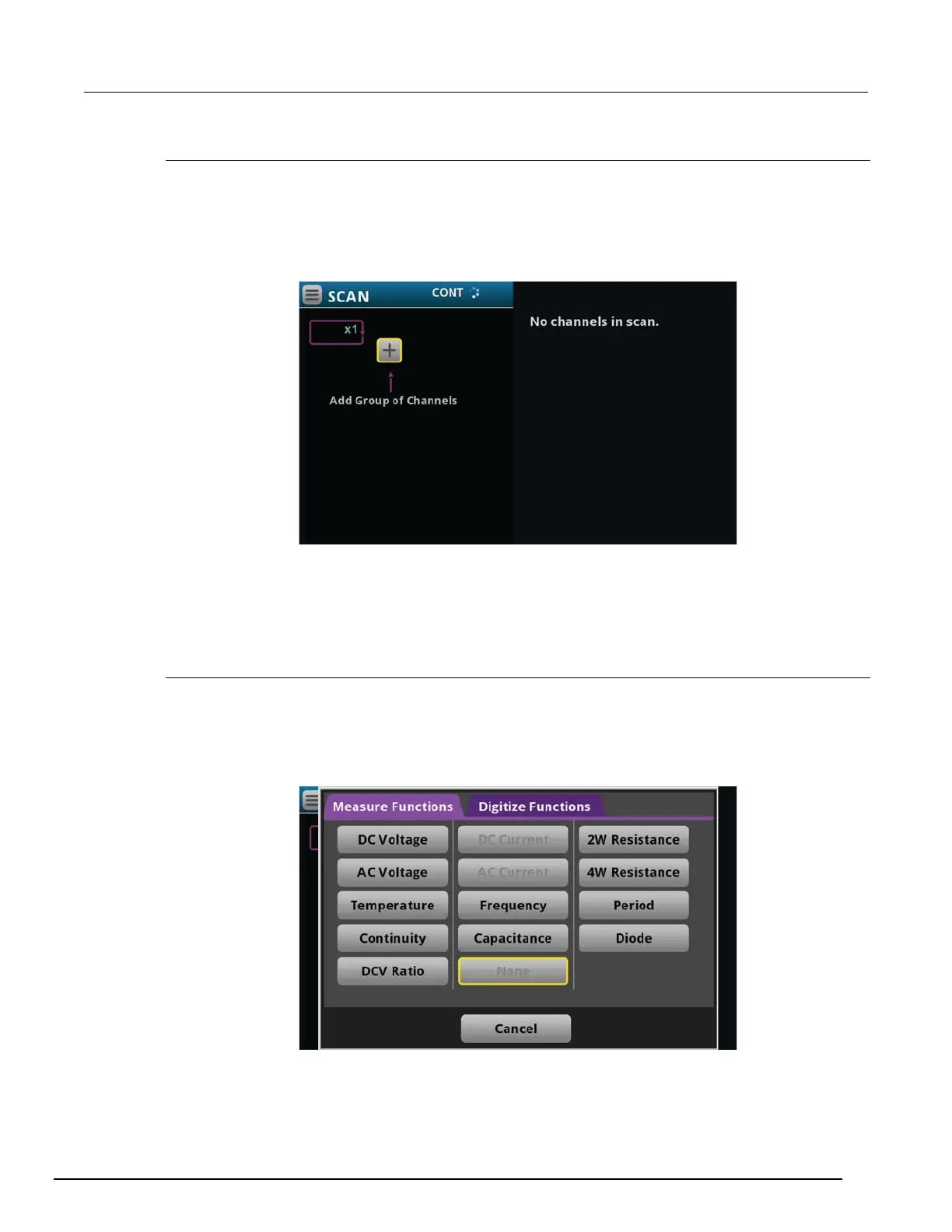

Figure 15: Add group of channels
2. From the 2001-TCSCAN channel list, select the box next to the channel number to select your
channels.
3. Select OK to proceed to the Measurement Functions/Digitize Functions screen.
Selecting a measurement function
After choosing the channels for your scan, the Measurement Functions screen opens. On this screen,
you can select the required function for your scan.
The available measurement functions are shown below.
Figure 16: Measurement functions
