Keithley 2230G-30-3 - Rear Panel Overview

Rear-panel overview

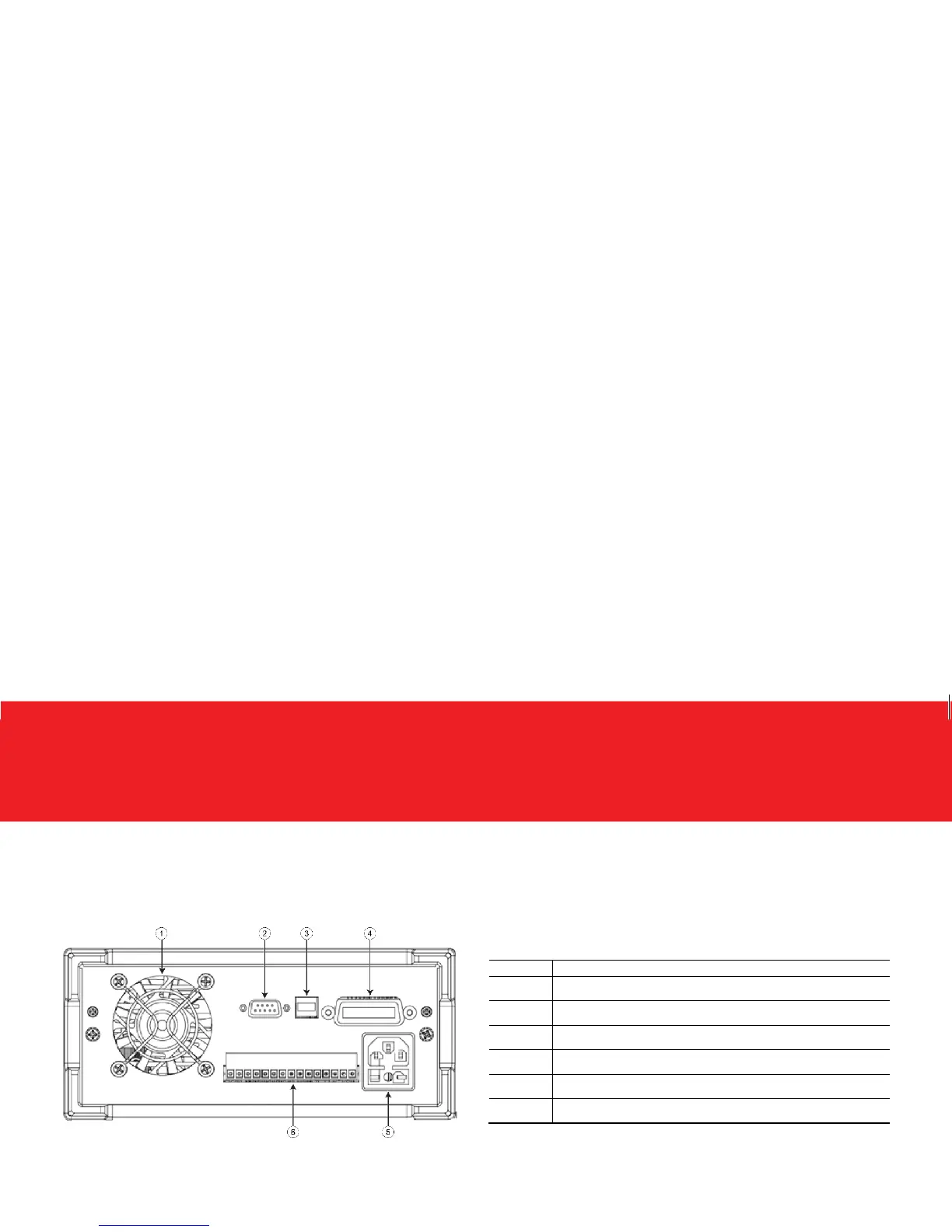

All 2230G power supply models have the same rear panel. The rear panel
is shown in the figure below. Descriptions of the numbered items follow
the figure.
Numbe
r
Description
1 Vent and fan
2 RS-232 communication interface
3 USB communication interface
4 GPIB communication interface
5 AC power input socket (including fuse)
6 Remote sense terminals and the output terminals
