Section 10: Digital I/O and Triggering Series 2600 System SourceMeter® Instruments Reference Manual
Rising Edge Acceptor trigger mode (version 1.4.0 or higher)
The Rising Edge Acceptor trigger mode (RisingA) generates a low pulse and detects rising edge
pulses.

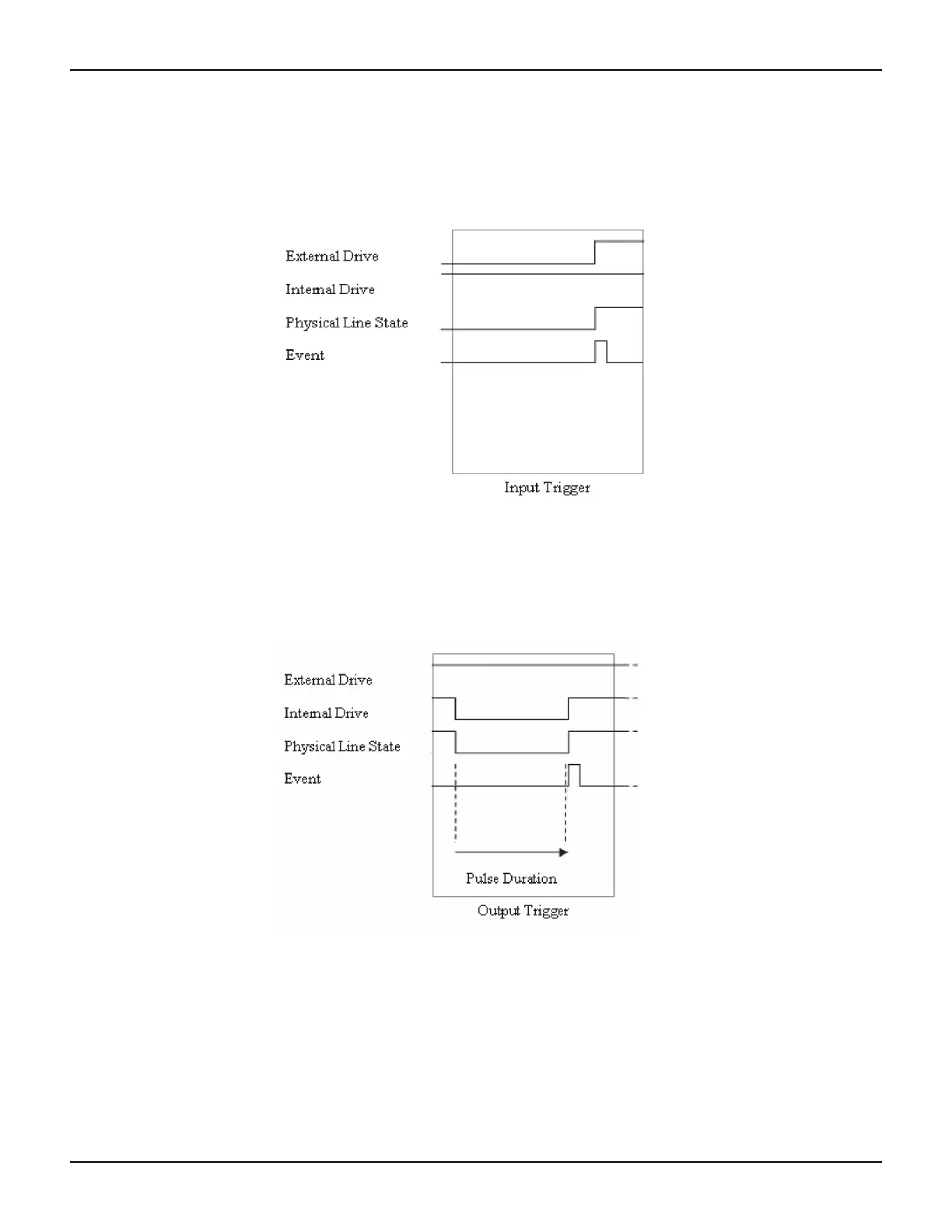

Figure 10-9 displays the RisingA input trigger.
Figure 10-9: RisingA input trigger
Input characteristics:
• All rising edges generate an input event
Figure 10-10 RisingA output trigger
Output characteristics:
•The trigger.assert command generates a low pulse that is similar to the Falling
Edge trigger mode
