Either Edge trigger mode
The Either Edge trigger mode generates a low pulse and detects both rising and falling edges.

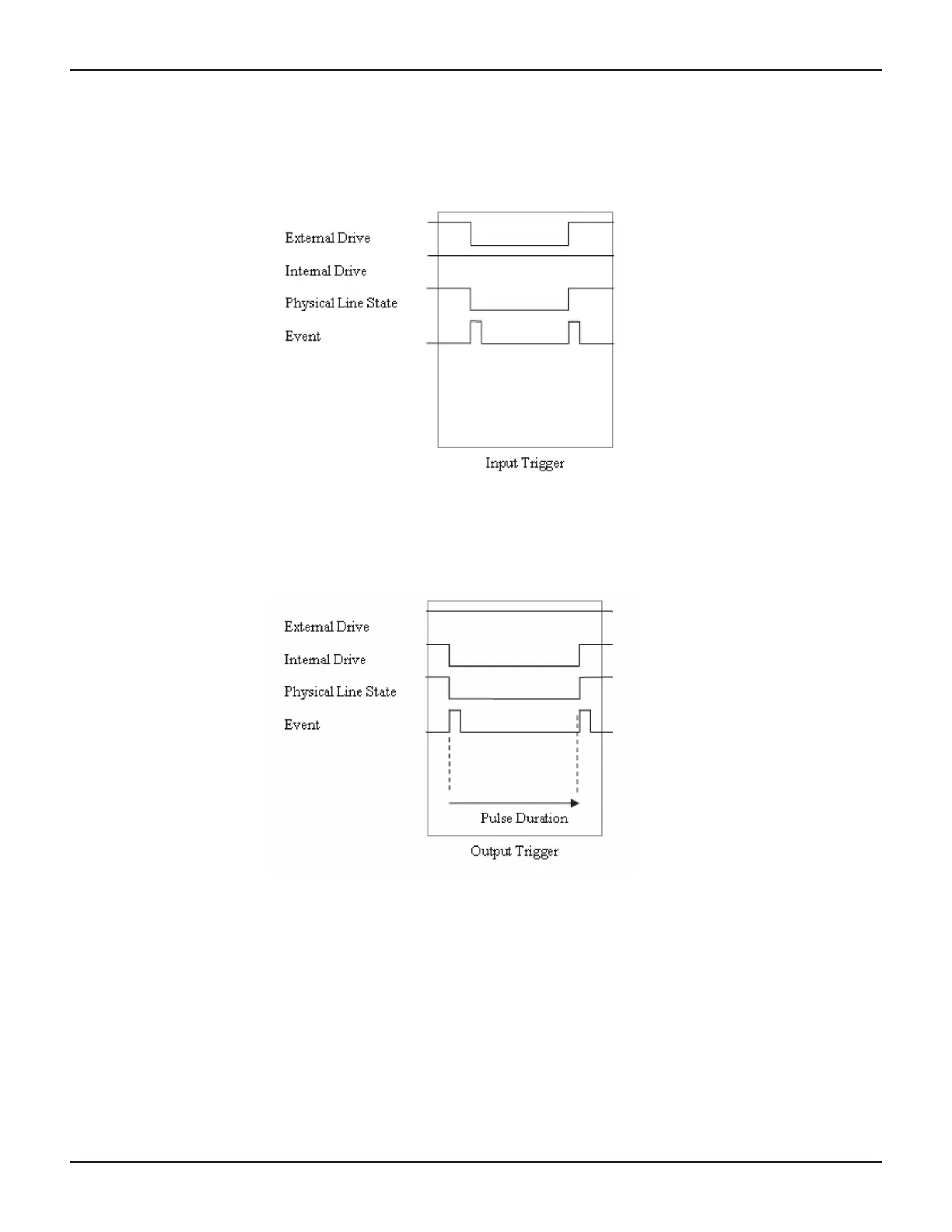

Figure 10-11: Either Edge input trigger
Input characteristics:
• All rising or falling edges generate an input trigger event
Figure 10-12: Either Edge output trigger
Output characteristics:
•The trigger.assert command generates a low pulse that is similar to the Falling Edge
trigger mode
