8-14 Return to Section Topics 2600S-901-01 Rev. C / January 2008
Section 8: Source-Measure Concepts Series 2600 System SourceMeter® Instruments Reference Manual
Model 2611/2612/2635/2636 V-Source operating boundaries
Figure 8-9 shows the operating boundaries for the V-Source. Only the first quadrant of operation is
covered. Operation in the other three quadrants is similar.
Figure 8-9A shows the output characteristics for the V-Source. As shown, the Model 2611/2612/
2635/2636 SourceMeter can output up to 20.2V at 1.5A, or 202V at 100mA. Note that when
sourcing more than 20.2V, current is limited to 100mA.
Figure 8-9B shows the limit lines for the V-Source. The voltage source limit line represents the
maximum source value possible for the presently selected voltage source range. For example, if
you are using the 20V source range, the voltage source limit line is at 20.2V. The current
compliance limit line represents the actual compliance in effect. See “
"Compliance limit"” earlier in
this section. These limit lines are boundaries that represent the operating limits of the SourceMeter
for this quadrant of operation. The operating point can be anywhere inside (or on) these limit lines.
The limit line boundaries for the other quadrants are similar.

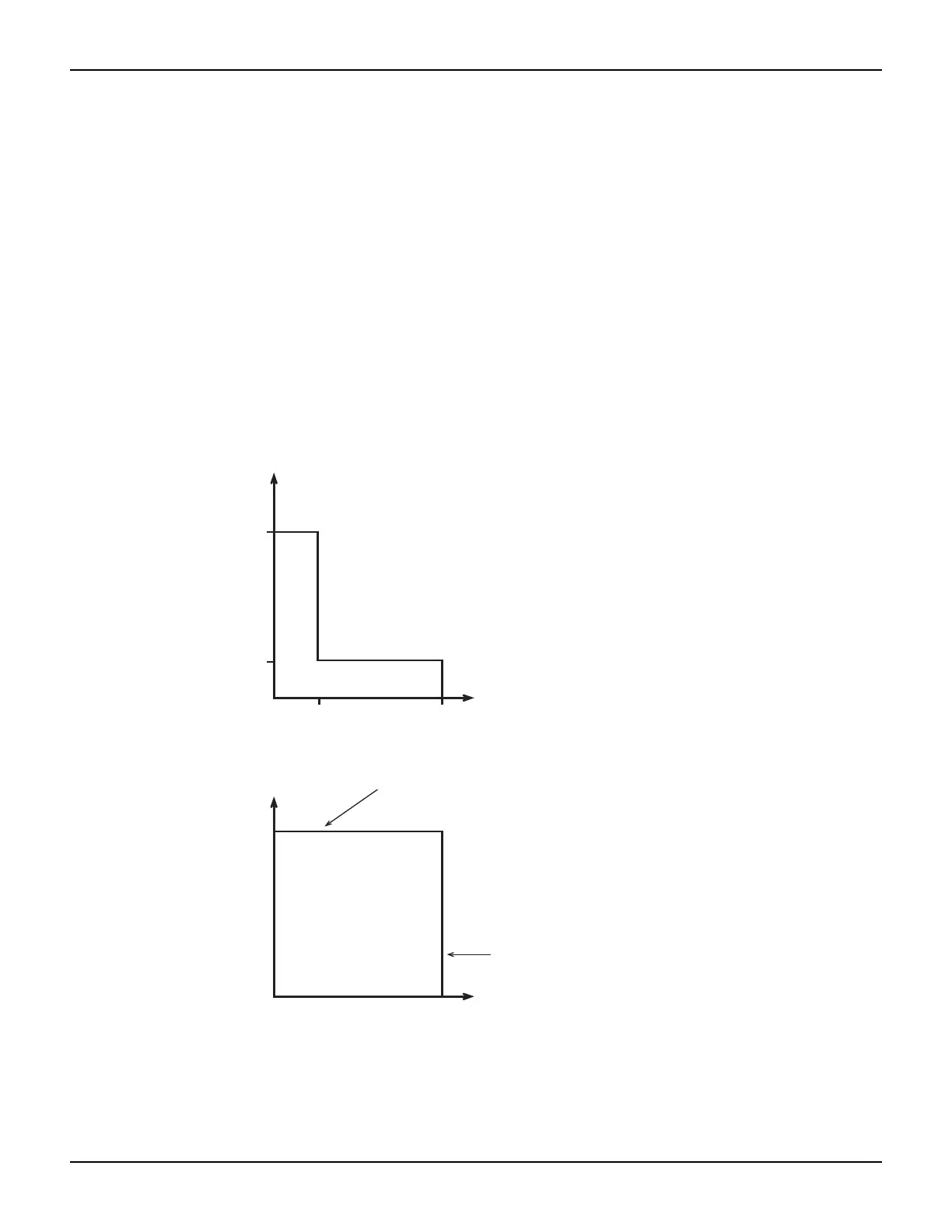

Figure 8-9
Model 2611/2612/2635/2636 V-Source boundaries
Current Compliance
Limit Line
Voltage Source
Limit Line
V Source
Limit I
1.5A
100mA
A) Output characteristics
B) Limit lines
Source V
20.2V
I Measure
202V
