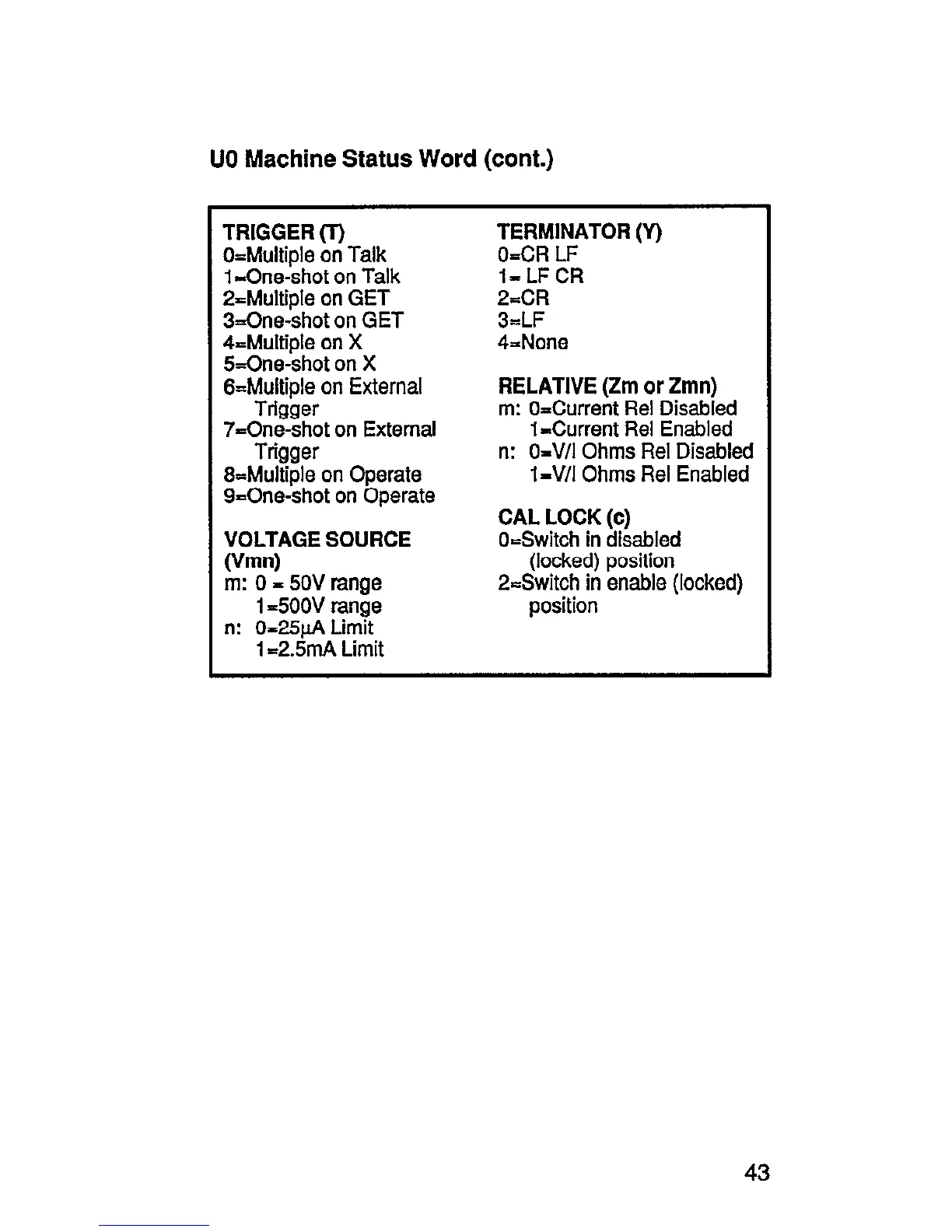

Keithley 486 Quick Reference Guide

UO Machine Status Word (cont.)
TRIGGER (-I-)
O=Multiple on Talk
1 POne-shot on Talk
2=Multiple on GET
3=One-shot on GET
4=Multiple on X
5=Oneshot on X
6=Multiple on External
Trigger
7=Cne-shot on External
Trigger
8=Multiple on Operate
S=One-shot on Operate
VOLTAGE SOURCE
(vmn)
m: 0 = 50V range
1=5OOV range
n: O-25pA Limit
1=2.5mA Limit
;Ei$llFATOR (Y)
P
1..LFCR
2&R
3=LF
4-None
RELATIVE (Zm or Zmn)
m: O-Current Rel Disabled
l-current Rel Enabled
n: 0-W Ohms Rel Disabled
1 -V/I Ohms Rel Enabled
CAL LOCK (c)
O&witch in disabled
([tied) position
a&witch in enable (locked)
position
