Appendix C: S530 troubl
eshooting information
S530 Diagnostic Manual

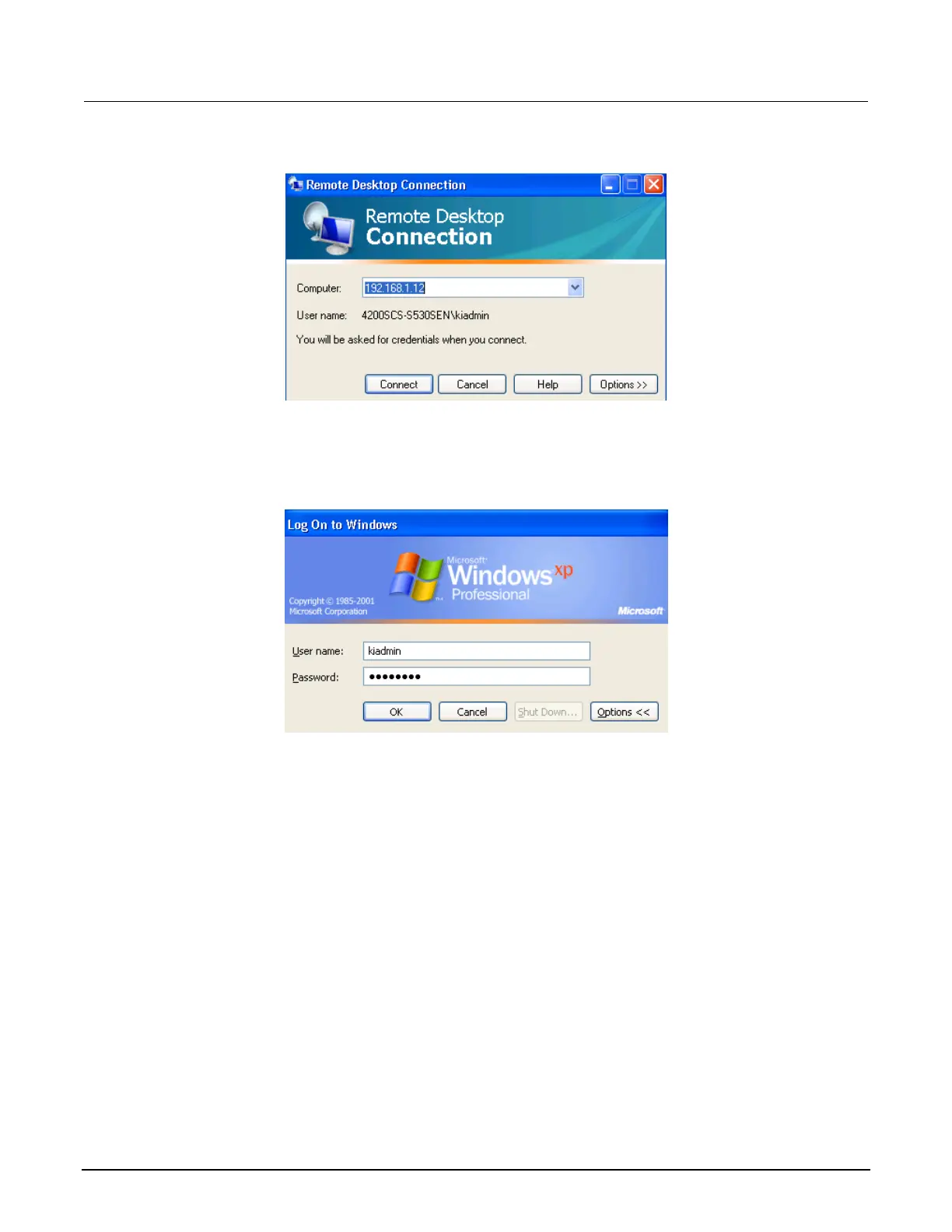

Figure 64: Remote Desktop Connection I.P. address
3. Click
connect.
4.
Log On to Windows
®
with user name ‘kiadmin’ an
d pass
word ‘kiadmin1’ (see next Figure).
Figure 65: Log On to Windo
w
s
5.
When the Model 4200-SC
S first opens, the Keithley
eXternal Control Interface (KXCI) is running.
You must click Quit in order to continue (see next Figure).
4-2
S530-906-01 Rev. A / March 2011
59
61
