Quick Results Guide 25
Sweep operation
Sweep types
The four available sweep types are linear staircase, logarithmic staircase, custom, and source
memory.
Linear staircase sweep

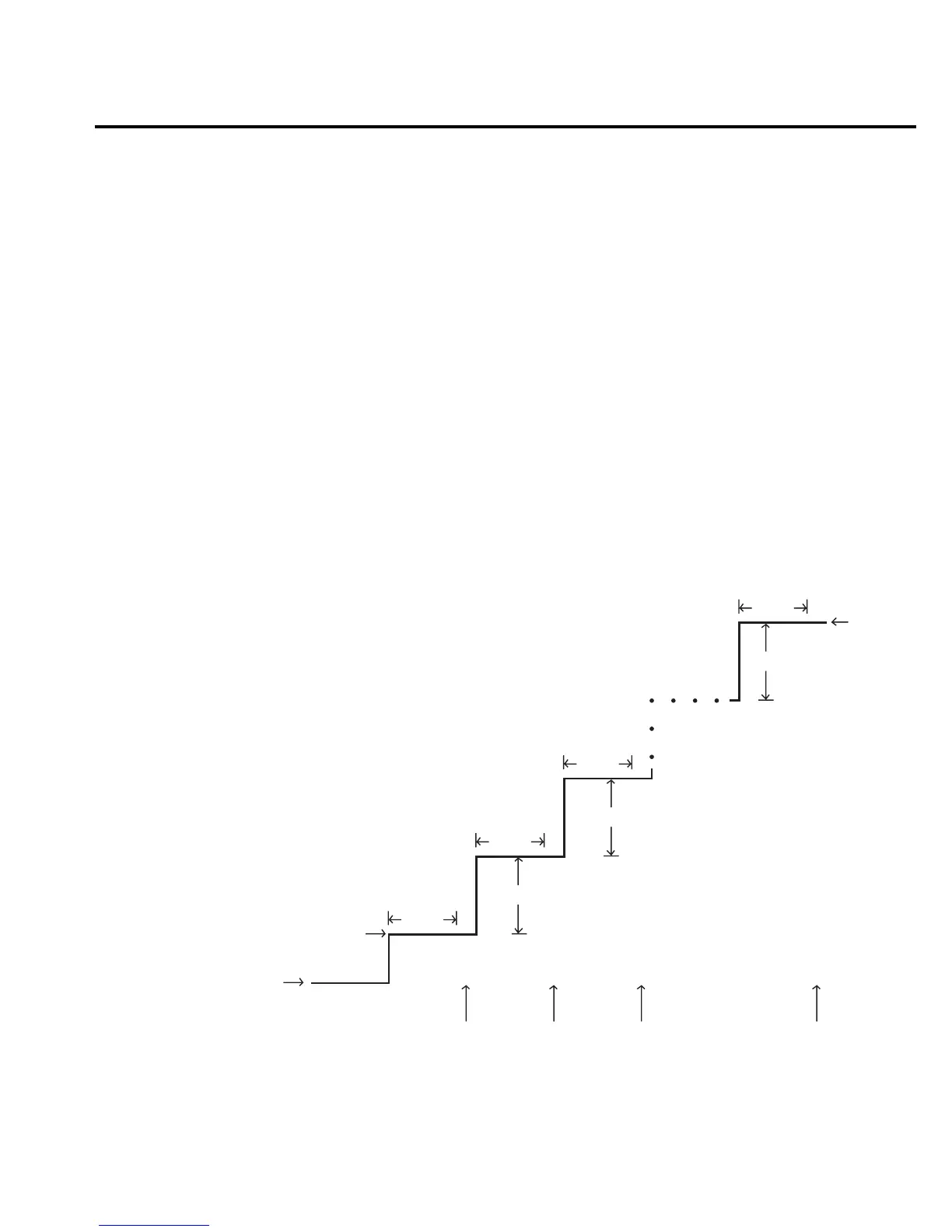

When the sweep shown in Figure 7 is triggered to start, the output will go from the bias level
to the source level. The bias level is the initial source level prior to the start of the sweep. The
output will then change in equal steps until the stop source level is reached. With trigger delay
set to zero, the time duration at each step is determined by the source delay and the time it takes
to perform the measurement.
With the desired source (V or I) selected, use the following menu sequence to set the start,
stop and step source levels:
Press CONFIG > press SWEEP > select TYPE > select STAIR
After selecting STAIR, you will be prompted to enter the START, STOP and STEP levels.
Delay
Delay
Delay
Delay
Start
Bias
Stop
Step
Step
Step
Measure Measure Measure Measure
X = Measurement point
X
X
X
X
Figure 7
Linear staircase
sweep
