The lifting support frame will drop rapidly to the pit oor
when the retainer bolts are removed. Keep your hands
and feet out from under the dock leveler when releasing
the frame. Failure to do so could result in death or serious
injury.
Air pressure or mechanical support must be maintained
under the ramp to hold it in the raised position until the
maintenance strut is in place. DO NOT WORK UNDER
THE DOCK LEVELER RAMP OR LIP UNLESS THE
MAINTENANCE STRUT IS IN PLACE AND PINNED, AND
LIP LOCK IS IN PLACE AND SUPPORTING THE LIP.

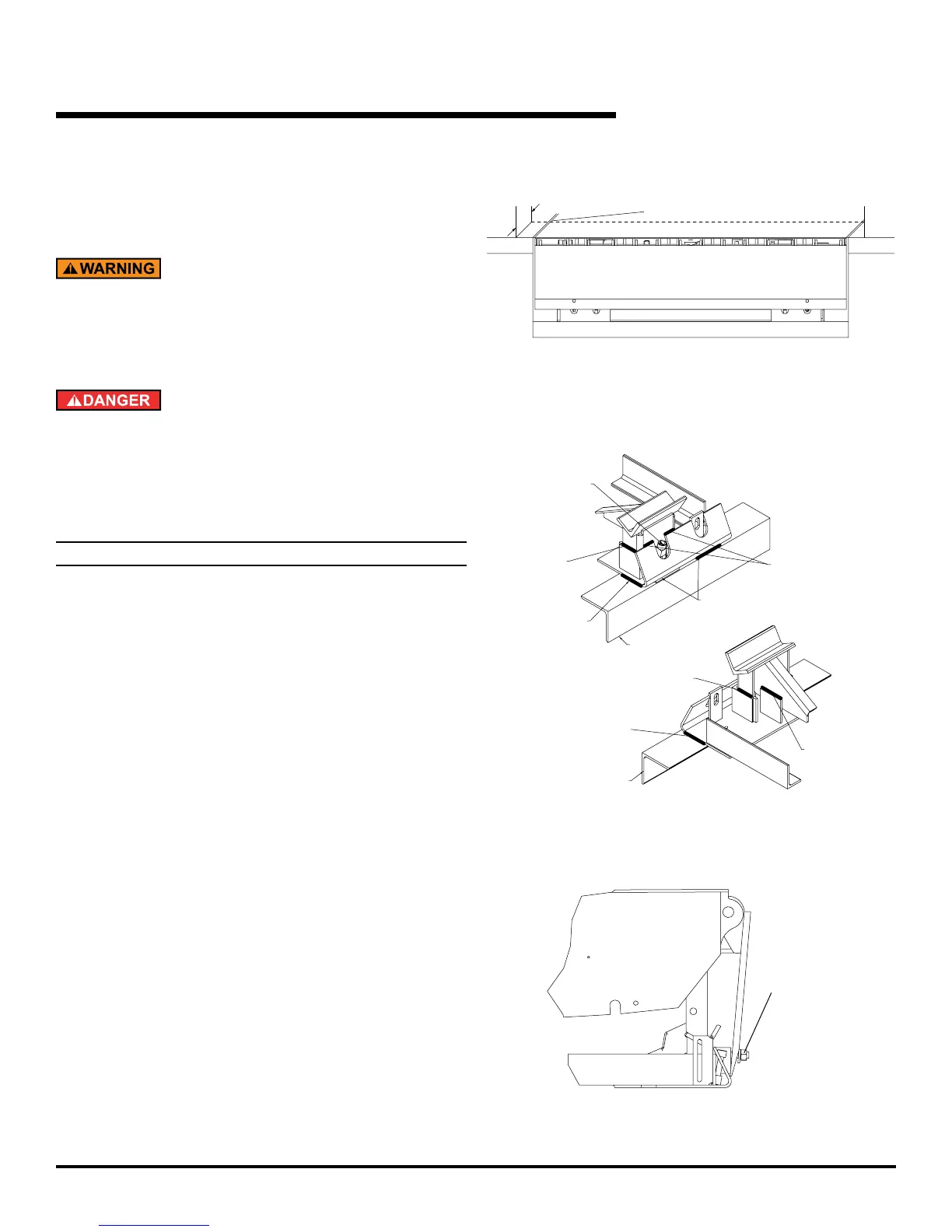

Flush with floor at this point
1/2" sq. drive
adjustment bolt
CCW rotation
to raise
3/16" weld
(both sides)
3/16" weld
3" long (min.)
(both sides)
3/16" weld
(both sides)
3/16" weld
3" long (min.)
(both sides)
3/16" weld
3" long (min.)
3/16" weld
3" long (min.)
3/16" weld
Curb steel
Curb steel
Shipping tie
down bolt
