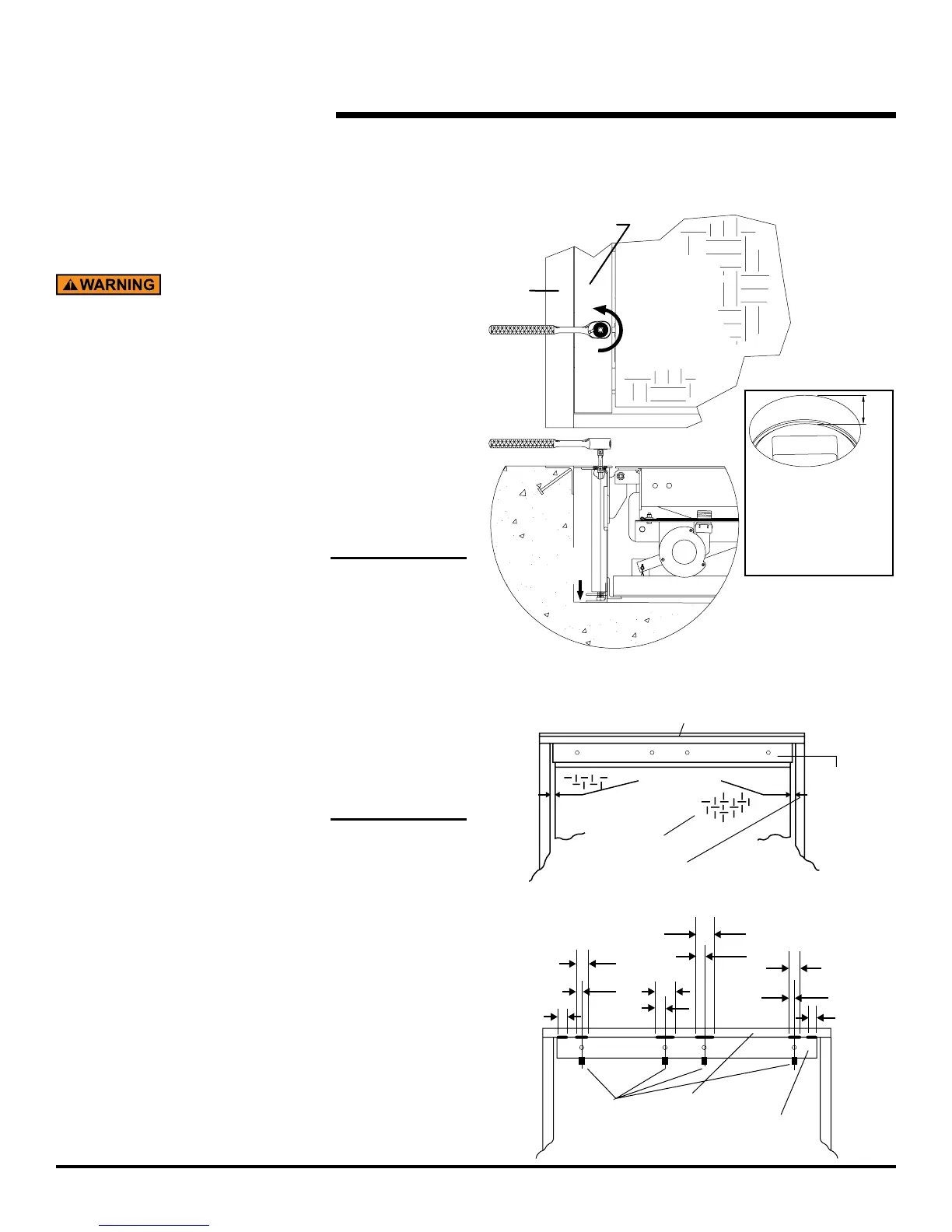

Before welding the dock leveler supports to the front curb
angle make sure that the dock leveler support legs line
up with the "V" pocket in the dock leveler support angle
and that the leg roller is centered over the its roller track.
Move dock levelers support right or left for the necessary
alignment.
Curb Angle
Pit Side Curb Angle
Ramp
Rear
Frame
Angle
Equal Gap
Frame
Uprights
Rear Hinge
Assembly
Pit
Rear
Curb
Angle
2-1/2"
5"
2-1/2"
5"
5"
5"
2-1/2"
5"
2-1/2"
5"
Raises
rear
angle
Transition angle
Curb
angle
1/4"
Legs are in contact
with pit floor when
the leveling screws
are 1/4" from the
top of the transition
angle
Leg
adjustment
