Kelly KLS-N Sinusoidal Brushless Permanent Magnet Motor Controller User’s Manual V2.9
15
3.2.2 Standard Wiring of KLS-N Controller

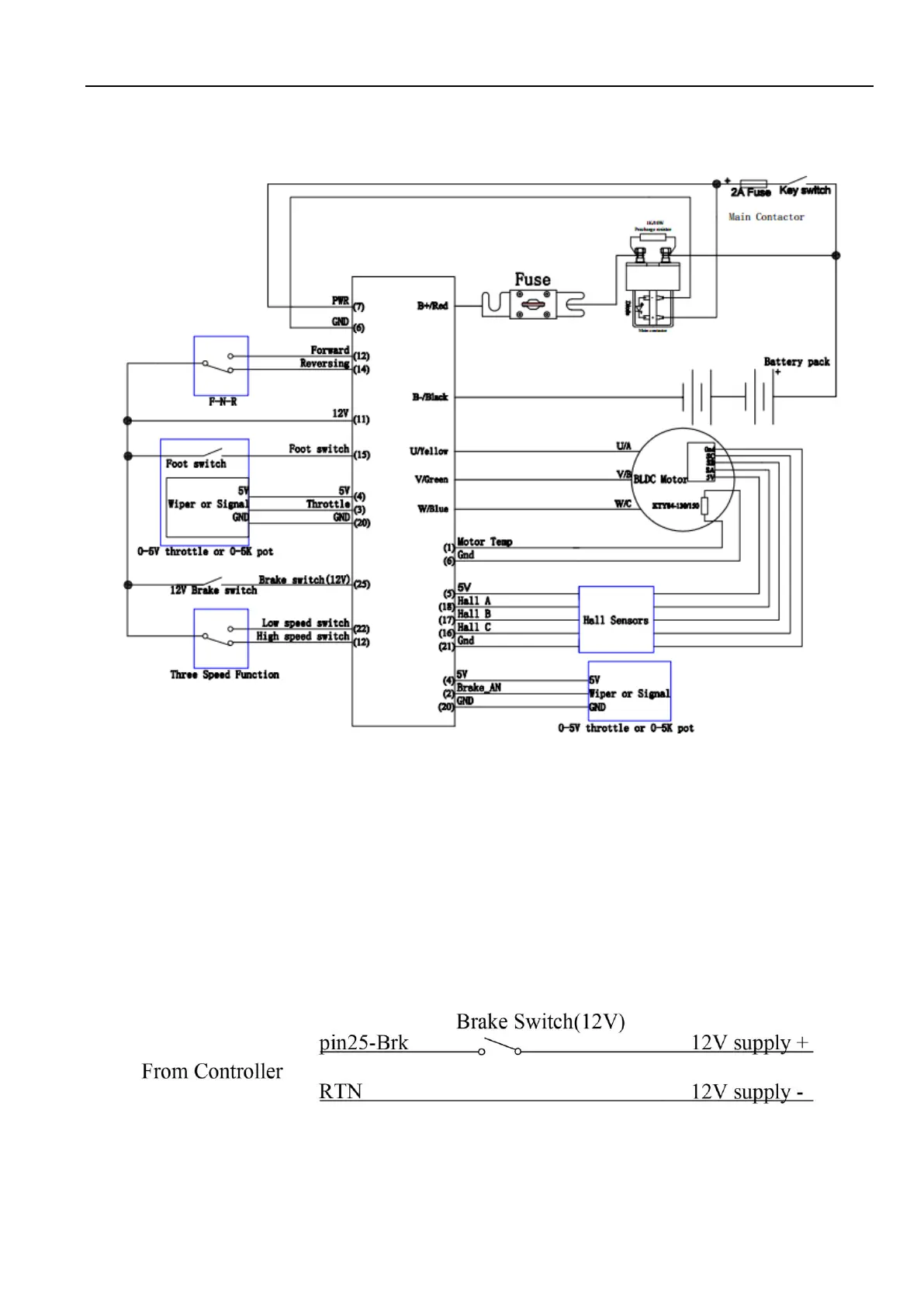

Figure 9: KLS-N controller standard wiring
(Battery voltage can be used for controller supply)
3.2.3 Optional wiring of KLS-N controller
The 12V input signal of the pin supplies the second braking function of the controller.
Figure 10: Wiring of brake switch(12V): 12V is provided by external source.
