Digital Controller Operation
6
The preprogrammed digital controller is mounted through the bezel on the enclosure door. The digital
controller will be powered but the bottom display will read OFF until water is flowing through the heater.
The bottom display will then display the setpoint temperature (See Digital Controller Operation section for
more information).
Refer to table and drawings below for instructions to change the desired set
point temperature of the controller.
Description Upper Display Lower Display Function
EZ Key Toggles output on/off
Setpoint Up Button Increases output temperature
Setpoint Down Button Decreases output temperature
Infinity Key Back to Home page
Advance Key Advances through parameter prompts
Auto, Man, Off C.r71 Turns Control Loop On/Manual/Off
XX.X% h.Pr1 Heater Power %
no AUt1 Autotune (Contact Factory)
C or F C_F1 Change Temperature Units from F to C
Output Indicators (1-5) Output 1,2,3,4 or 5 are active and operating if
these LEDs are illuminated.
Setpoint Temperature
(Lower Display)
Displays:
• Setpoint
• Percent Power
• Temperature units F or C
• Menu prompt name
• Alarm code
Output Temperature
(Upper Display)
Displays:
• Actual process temp. of outgoing water
• Prompt parameter value
• Error code (feature disabled)
Output Indicators
Output Temp.
Output
Temp.
Output
Temp.
No Flow
Setpoint
Temp.
Setpoint Temp.
Setpoint Up
Setpoint Down
Advance KeyInfinity Key
EZ Key

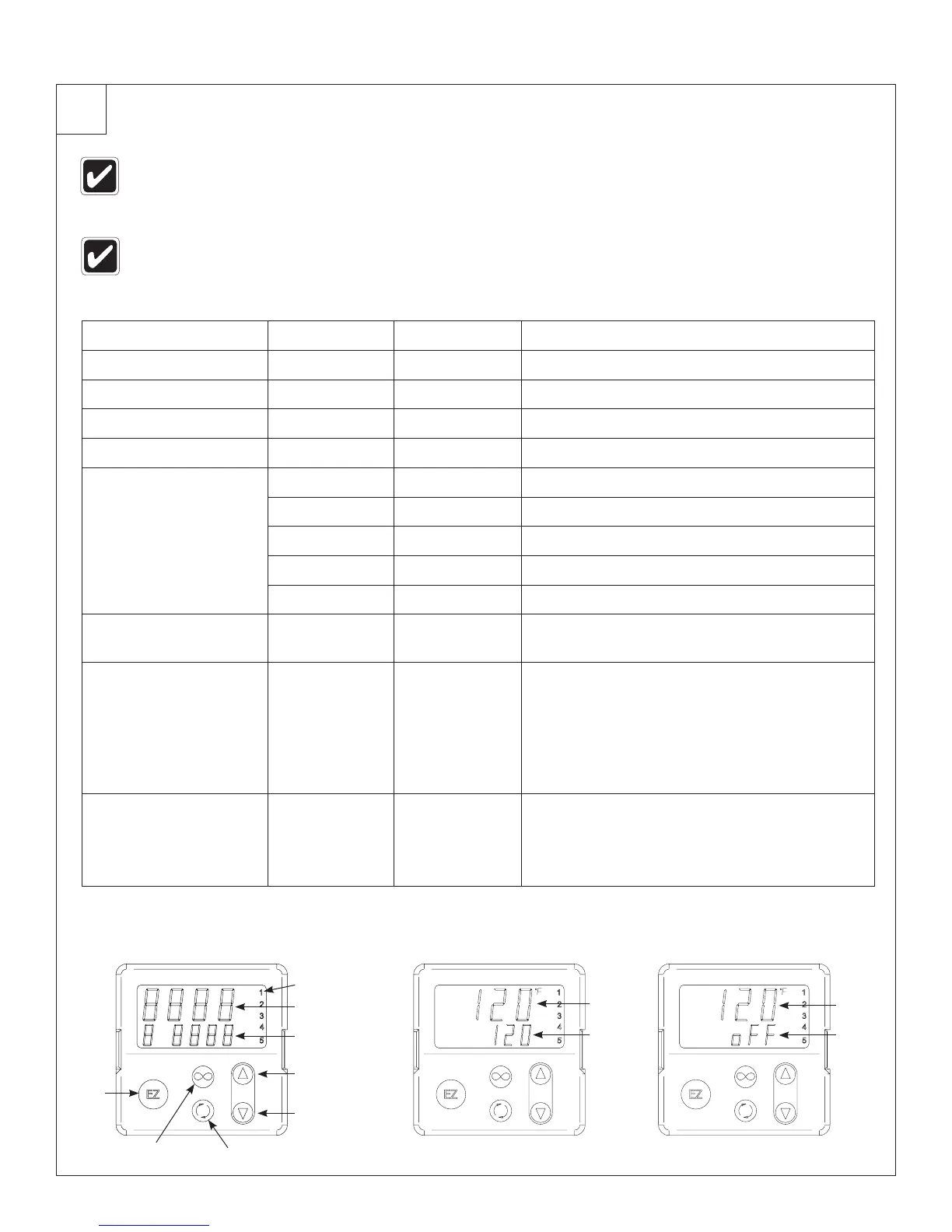

Layout Diagram ON - Heating OFF - No Flow
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
