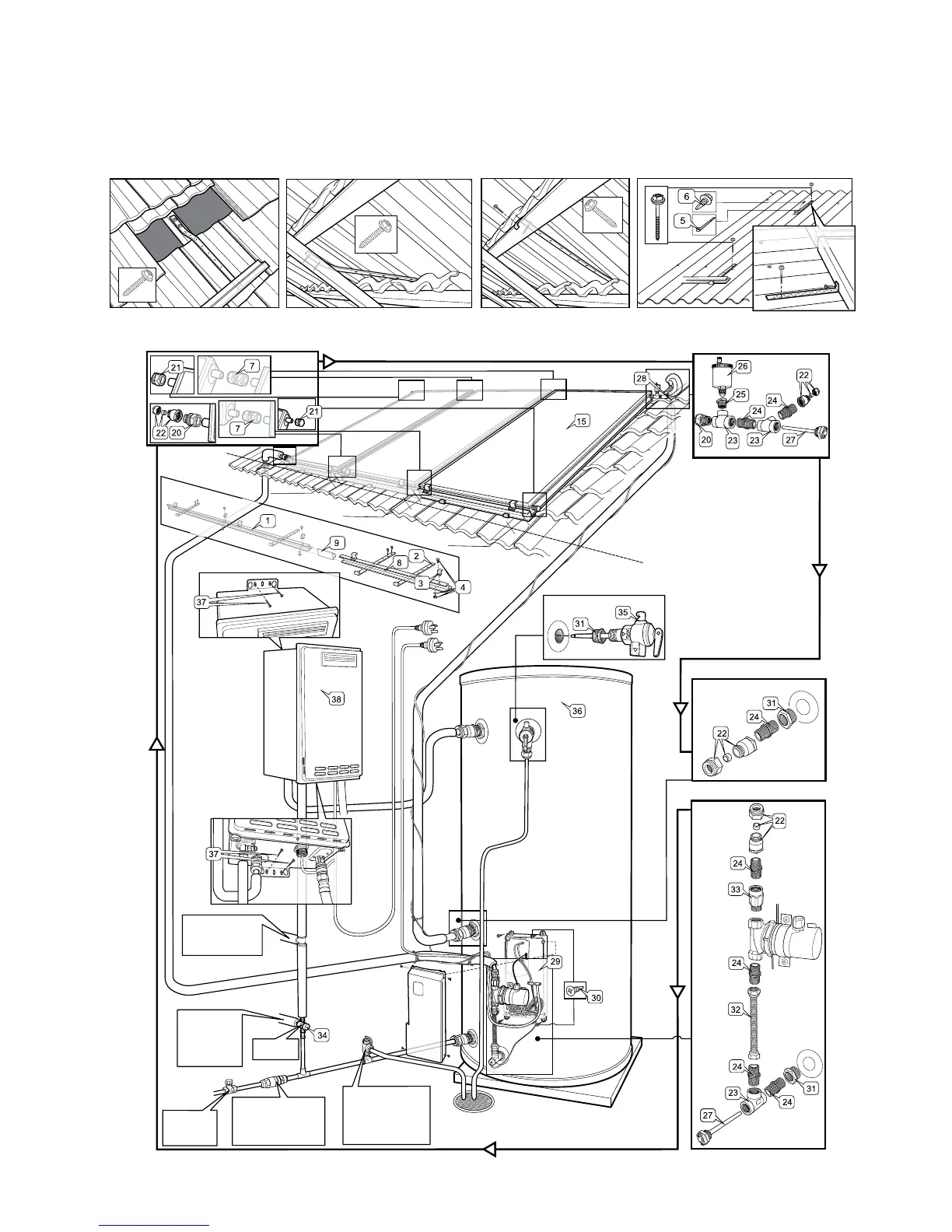

Kelvinator solar hot water systems installation diagram - gas boosted at panel collectors 13
Installation diagram - electric boosted flat panel collectors
Tiled roof – preferred method: Connect roof straps from bottom rail and top edge
of collectors to vertical roof beams. Secure with 2 screws at top of beams. Connect
roof straps from bottom rail and top of collectors to horizontal beams if vertical
beams are not accessible.
All numbered items are supplied with the hot water system. Please refer to the Components list for details. Items which are not numbered are not supplied and need to be
supplied by the installer in accordance with local plumbing requirements. Installation of this hot water system must be completed by an authorised and licensed person in
accordance with all local regulations, including AS5601 gas installation requirements, AS3500 plumbing and drainage requirements and AS3000 electrical wiring standards.
Bottom rail connection viewed
from above
10 -15mm
from horizontal
bottom rail
assembly
relief valve
uncontrolled
hot water outlet
(kitchen, laundry)
tempered
(50°C)
hot water
outlet
(bathrooms)
tempering
valve
20-30mm
from horizontal
30-45mm
from horizontal
Connecting strap viewed from
roof cavity
Components shown in grey are only used in 2 and 3 collector panel connections
Secure with 2 straps on top and
back edge of beam
Iron roof: Connect bottom rail and
top edge of collectors to iron roof.
securing top centre
of panel
isolating
and non
return valve
pressure limiting
valve (600kPa) may be
required if pressure
exceeds 600kPa
pressure relief valve
(700kPa) may be
required refer to
local plumbing
guidelines
drain
return
flow
inlet
cold
inlet
flow
relief
valve
from
solar
return
horizontal
outlet
1.5m
inlet
inlet
outlet
outlet
gas
gas
