16 roof installation – evacuated tube collectors Kelvinator solar hot water systems
Roof installation –
evacuated tube collectors

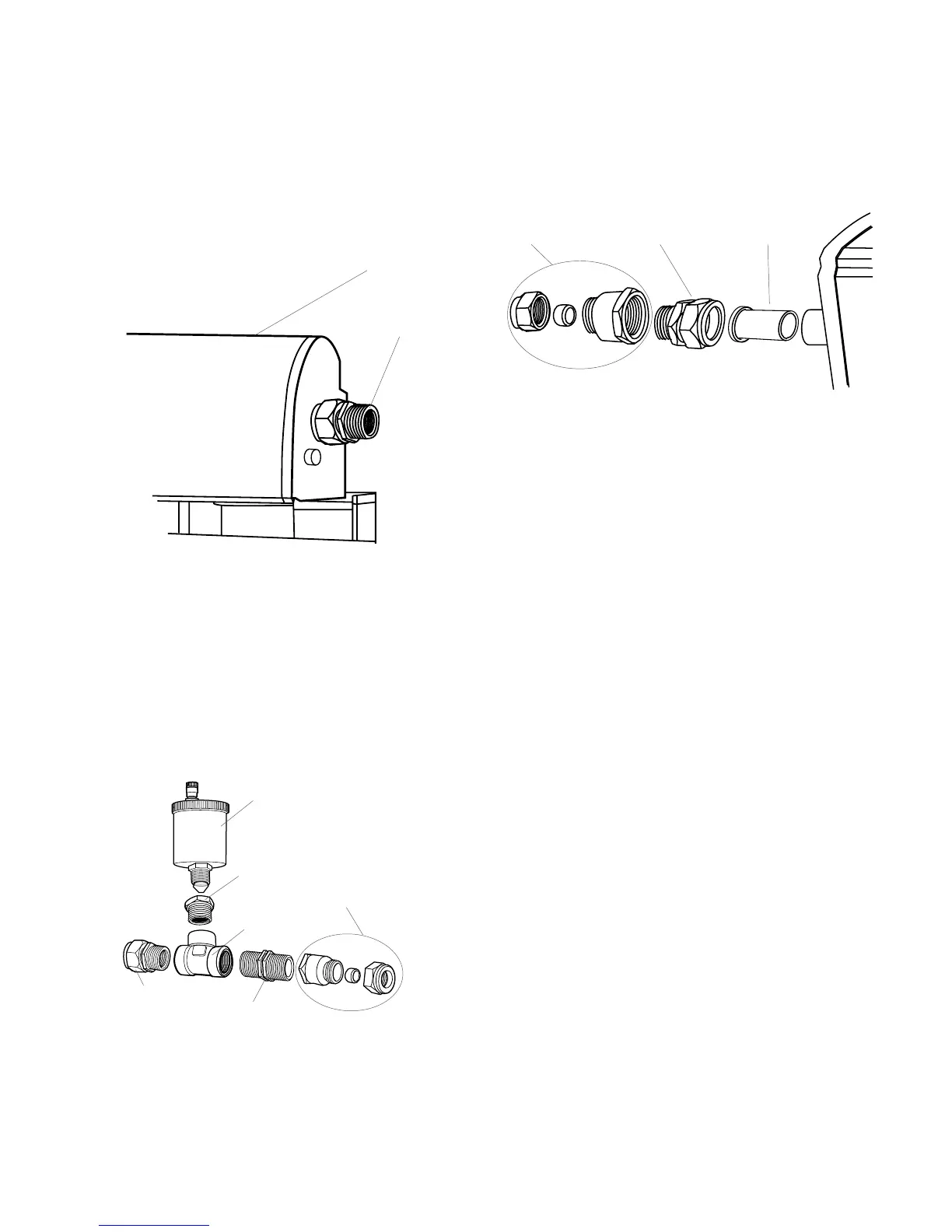

On the collector array inlet install a 1/2” to copper union
onto the 1/2” male compression union tting making sure to
use a thread sealant.
1/2" female to
copper union
1/2" male to
collector union
copper support
sleeve
Collector pipe work connections
Place the copper sleeve support into the inlet and outlet
manifold pipes of the collector array. Install a 1/2" male
compression union tting (supplied with the collectors) and
tighten the nut using two spanners as before, sealing the
copper olive to the collector manifold pipes.
collector
1/2" male
compression
union
Open the ttings kit KKSSURA and check that all
components have been supplied (see components list). Since
this kit is also used for flat panel type collectors there will be
some pieces which will not be used.
On the collector array outlet install a tee piece, 1/2" to 3/8"
reducing bush, vent valve, 1/2" nipple and 1/2" female to
copper union (see diagram below). Between the ttings
use a thread sealant that is capable of handling the high
temperatures created by the collectors. Ensure the vent
valve is installed so that its vent is pointing directly upwards,
perpendicular to the ground (not the roof).
vent valve
T-piece
1/2" female to
copper union
1/2" male to
collector union
1/2" to 3/8"
reducing bush
1/2"nipple
