Kelvinator Gas Continuous Flow hot water system remote controller 15
Connection of remote controller
wiring to the water heater
1. Turn off the power supply to the water heater.
2. Remove the front cover from the water heater. There are
3 screws on the front cover.
3. Put the remote wires through the hole on the bottom of
the water heater's casing.
4. Remove the plastic cover and connect remote control
wires to remote terminals directly. (There is no polarity in
the terminations).

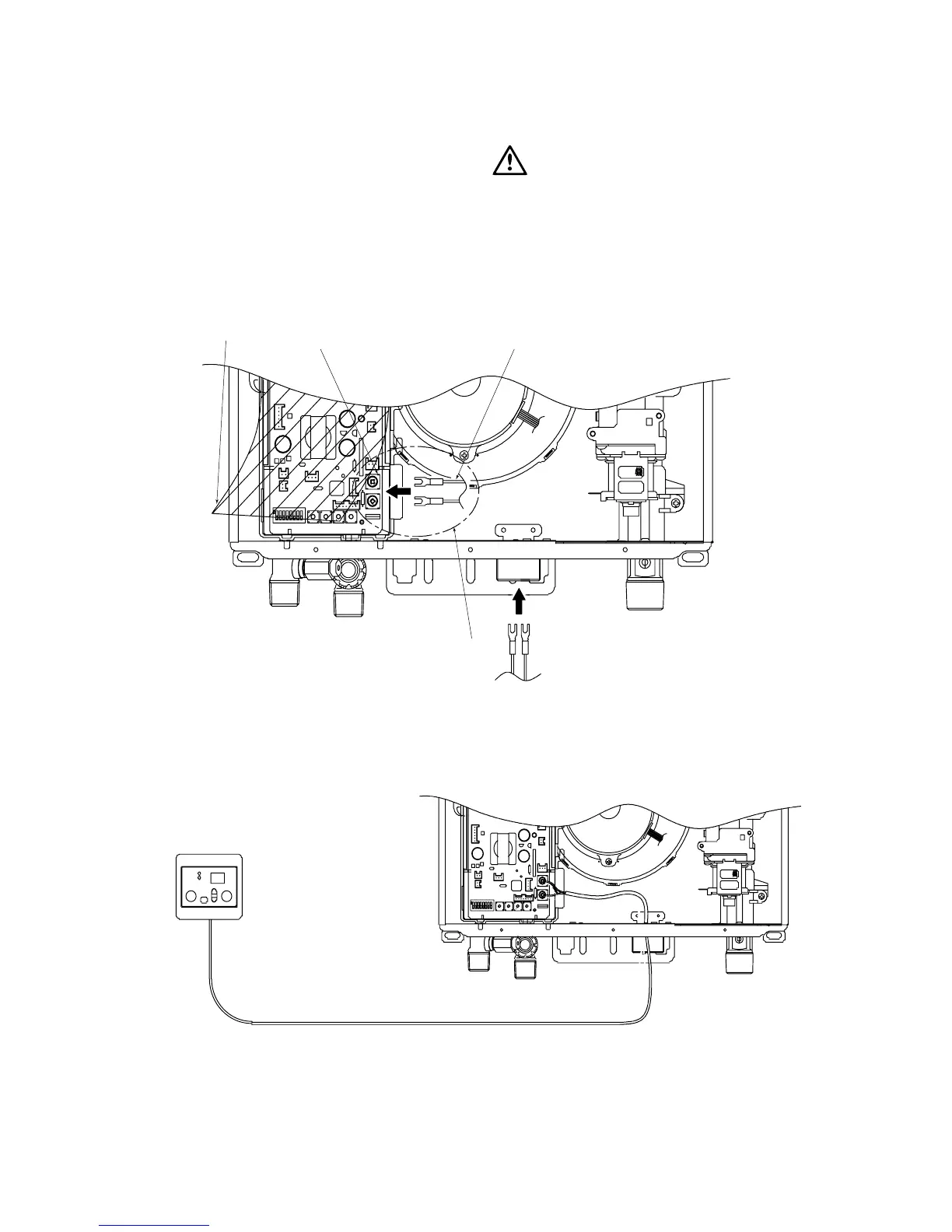

plastic cover
KGCMRCA
typical cable layout
remote control
terminal
remote control
cable
Remove the plastic cover and
connect the terminals directly
behind the cover
Put the remote wires through
the hole on the bottom of the
unit's casing.
12345678
123 456 78
caution
DO NOT jump or short-circuit wires.
Computer will be damaged.
5. Replace the plastic cover and the front cover and connect
the power plug.
12345678
123 456 78
Remote control cable connections
