Kelvinator Air Conditioning Installation instructions 9
Outdoor unit installation
Outdoor condensate drainage
• During heating operation, the condensate and
defrosting water should be drained out reliably through
the drain hose.
• The drain-water hole must be plugged. Whether to plug
other holes will be determined by the installer according
to actual conditions.
• Install the outdoor drain connector in the drain-water
hole on the chassis of the outdoor unit, and attach the
drain hose to the connector so that the waste water
formed in the outdoor unit can be drained out.
• In case of a drain hose, the unit must be installed on a
base more than 3cm in height.

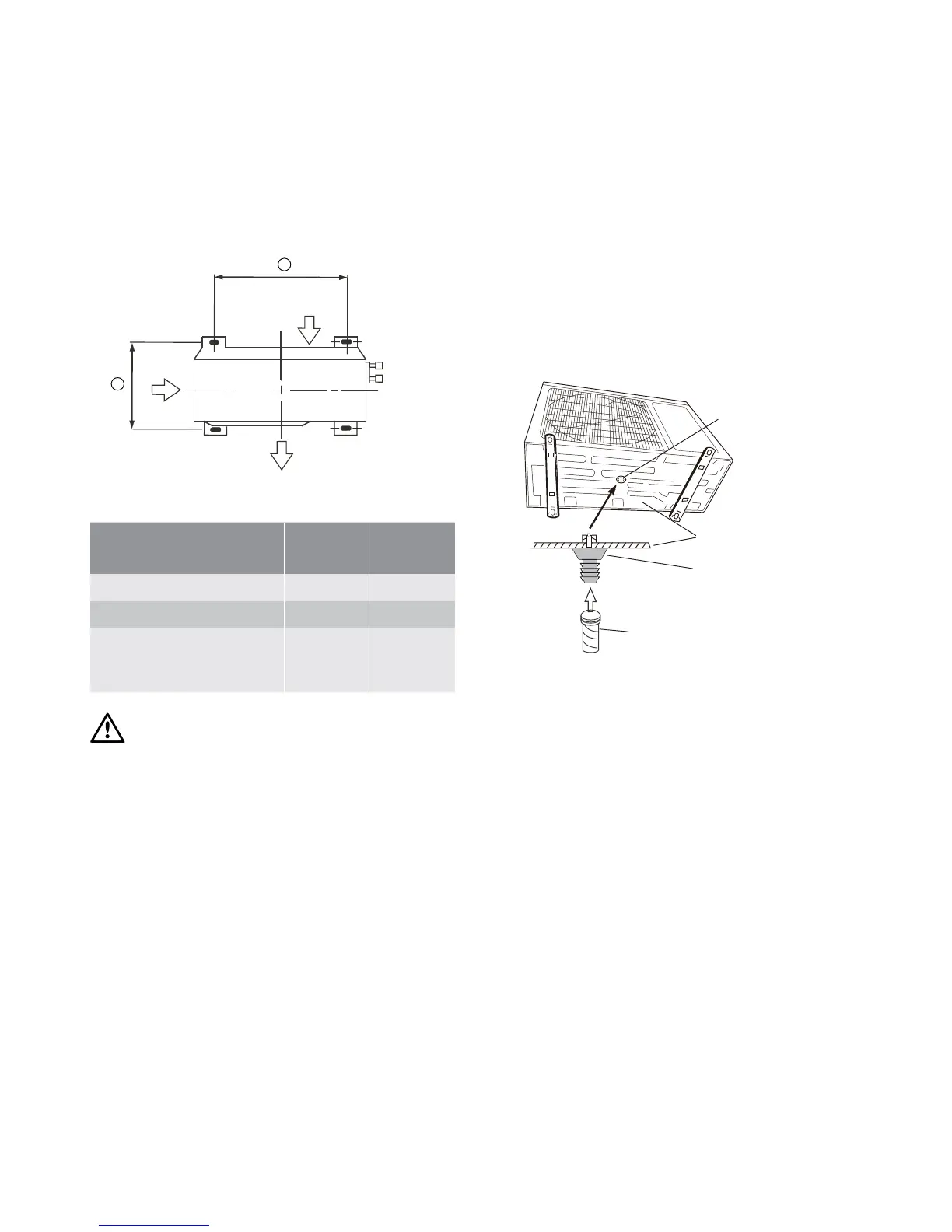

Securing the outdoor unit
Anchor the outdoor unit by fixing the 4 holes existent in its
base with 4 bolts and nuts of
φ
10 mm tightly (not included).
Place the outdoor unit over a horizontal concrete or rigid
surface (never directly over grass or earth).
A
B
air inlet
air inlet
air outlet
Model
Outdoor unit
dimensions
W x D x H (mm)
Dimension A
(mm)
Dimension B
(mm)
KSV26HRE/CRE
776 x 320 x 540
510 286
KSV35HRE/CRE
842 x 320 x 596
540 286
KSV53HRE,
KSV62HRE,
KSV70CRE/HRE
KSV80HRE
955 x 396 x 700
560 364
caution
• If a suspended installation is needed, the installation
bracket must allow the fixation according to dimensions
on the figure above.
• The wall where the unit will be installed must be of solid
brick, concrete or provided with other reinforcement
ways to fix the bracket. The fixation of the bracket to the
wall and the bracket to the air conditioner must be firm,
steady and levelled.
drain-water hole
chassis
drain connector
hose of inner diameter 16mm
(not supplied)
