1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the back of the
cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling and heating (reverse cycle models
only) efficiency of the air conditioner.
4. Install the unit with a slight angle down towards the rear to allow condensate to run to the
(about 10mm or 1/4 bubble with level).
5. Install the unit with its bottom portion 75~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/green wire must
be earthed.
7. In some light construction walls there may be a requirement for the addition of a foam or
rubber strip between the air conditioner housing and the wall cavity. The addition of a foam
or rubber strip will assist in isolating transmission of normal operation vibration into the wall.

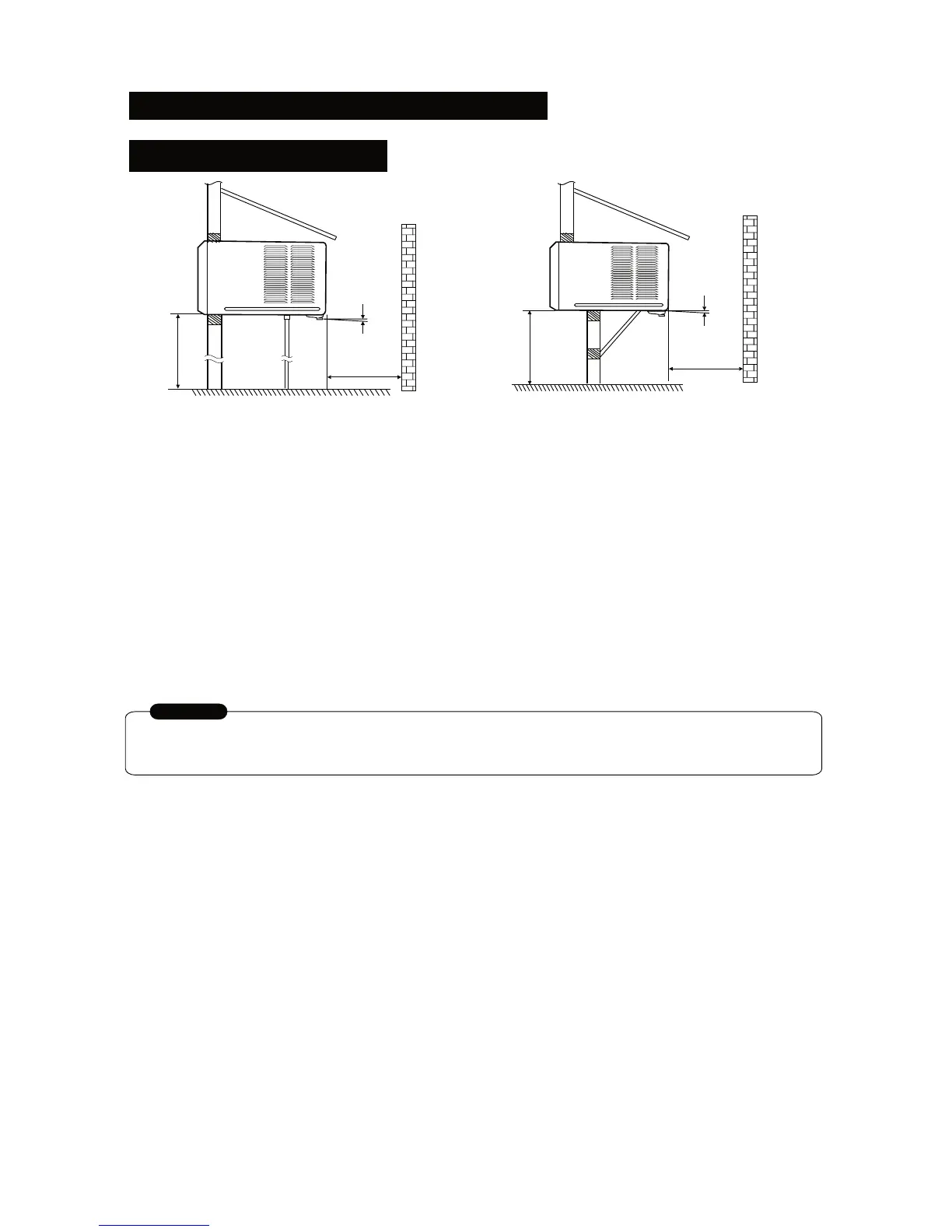

rear of the air conditioner
Over 50cm
About 10mm
FENCE
AWNING
75-150cm
Over 50cm
About 10mm
FENCE
AWNING
75-150cm
All side louvres of the cabinet must not be obstructed and must be positioned outside of
the structure.
CAUTION
Select the best location
INSTALLATION INSTRUCTIONS
