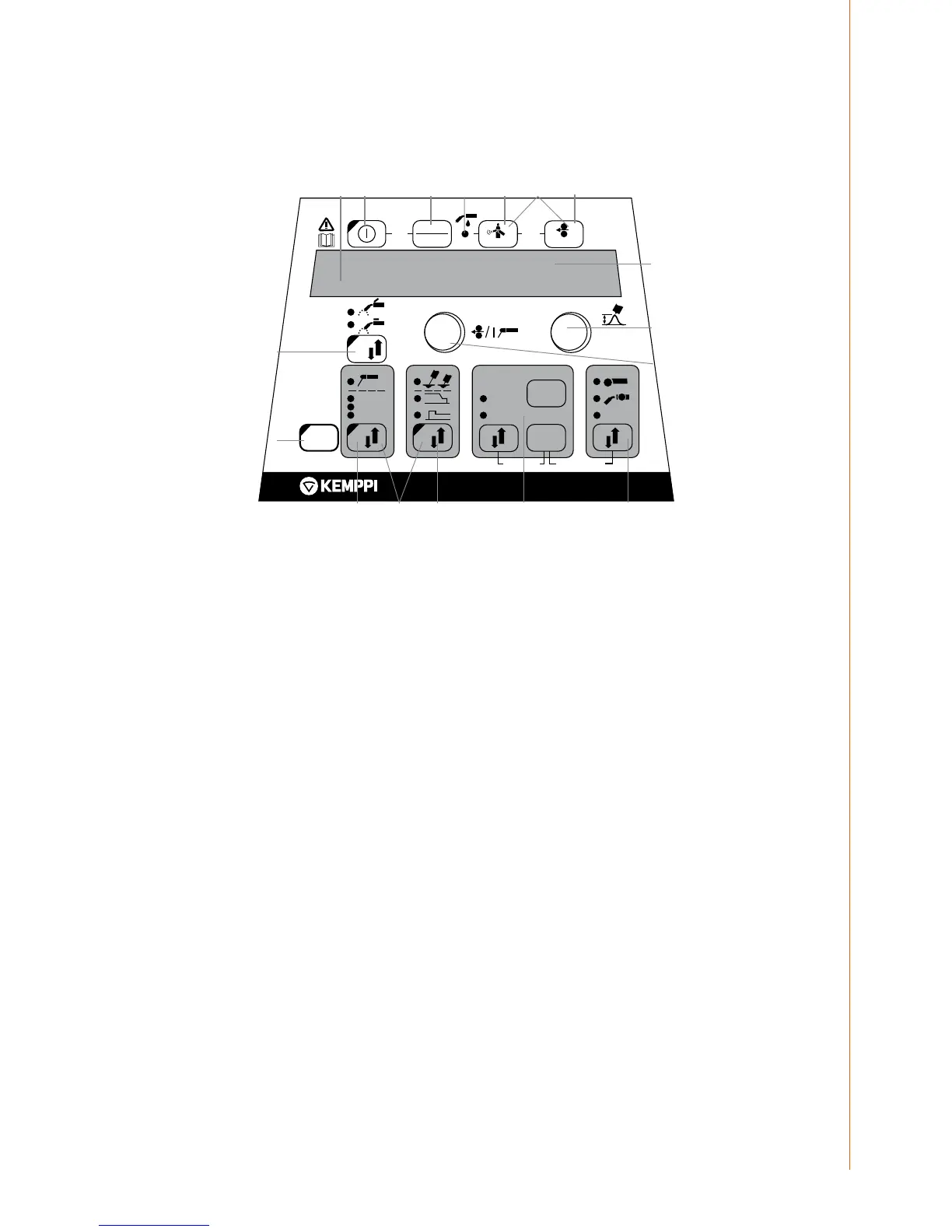

5.14 SF 52W and 53W control panel for FastMig KMS
Full operation descriptions for SF 52W and SF 53W control panels can be found on the CD
delivered with the product.
WIRE INCH
GAS TEST
SET
ON
CH
PANEL
SAVE
SET
ch clear
ch remote
MEMORY
SELECT
quick
setup
weld
data
ARC FORCE
DYNAMICS
4T
2T
SETUP
MMA
PEN
MMA
WISE
1-MIG
MIG
POWER
U
SYNERGIC
PROGRAM
A
V
m/min
mm
SF 53W
W004270
/ MINILOG
1.
2.
3. 4.
5.
6.
7.
8.
11.
12.
10.
9.
17.15.
13.
14.
16.
1. ON/OFF button
2. a) Display: Wire feed speed/welding current/sheet thickness
b) Display: Selected adjustable parameter
3. Selection of adjustment: MIG dynamics/Arc Force/Wise Forming Pulse
4. Display of air/gas cooled MIG gun (selection from setup)
5. Gas purge
6. Weld data: Last used welding parameters shown in displays
7. Wire inch
8. a) Welding voltage display
b) Display of value of selected adjustable parameter
9. 1-MIG/WISE selection check/1-MIG welding arc selection activation
10. a) Selection of MIG process: 2T/4T/4T Minilog *)
b) Long press: Setting the basic parameters (SETUP)
11. Selection of welding process MIG,1-MIG, MMA, WISE **)
12. Activation of additional MIG function parameter adjustment
13. Selection of additional MIG functions/WisePenetration **) (long press)
14. a) Adjustment of wire feed speed
b) Adjustment of welding power setting 1-MIG/WiseRoot/WiseThin
c) Adjustment of stick electrode current
d) Selection of SETUP parameter
e) Selection of 1-MIG/WiseRoot/WiseThin arc (material)
15. Memory channels, storage of MIG parameters
16. a) Welding voltage adjustment
b) Adjustment of length of welding arc (1-MIG)
c) Adjustment of MIG dynamics
d) Adjustment of SETUP parameter
e) Selection of 1-MIG/WiseRoot/WiseThin arc
f) WiseRoot and WiseThin base current adjustment
17. Manual control/remote control unit selection
*) Minilog is not included in standard delivery
**) Not included in the standard delivery. Wise products are available as optional welding
process solutions. Please visit www.kemppi.com or Kemppi Datastore.
