1. PREFACE
1.1. INTRODUCTION
Congratulations on having purchased this product. Properly installed Kemppi products should
prove to be productive machines requiring maintenance at only regular intervals. This manual
is arranged to give you a good understanding of the equipment and its safe operation. It also
contains maintenance information and technical specications. Read this manual from front to
back before installing, operating or maintaining the equipment for the rst time. For further
information on Kemppi products please contact us or your nearest Kemppi distributor.
The specications and designs presented in this manual are subject to change without prior
notice.
In this document, for danger to life or injury the following symbol is used:
Read the warning texts carefully and follow the instructions. Please also study the Operation
safety instructions and respect them when installing, operating and servicing the machine.
1.2. PRODUCT INTRODUCTION

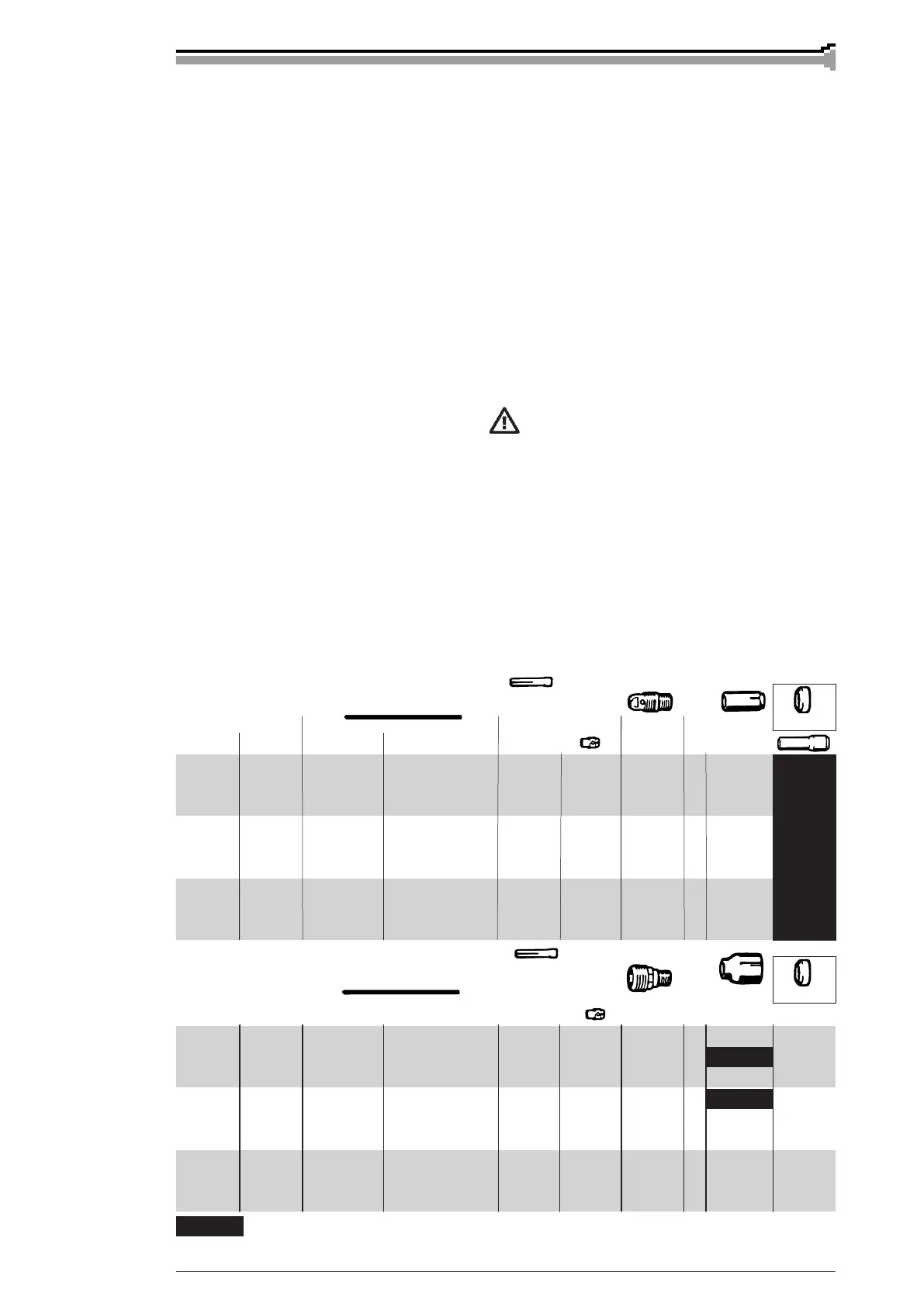

1.2.1. Selection table for consumable parts
TTC 130, TTC 130F, TTC 160S, TTC 200W, TTC 250WS
Normal gas nozzle equipment
Welding current Size 9878013
DC [A] AC [A] Ø [mm (in)]
WC20 9873531 3 9878018
5…80 5…50 1,0 (.040) WZ8 9873520 7990635 7990640 7990660 4 7990760 9878019
5 7990761 9878020
WC20 9873532 4 7990760 9878019
70…150 30…100 1,6 (1/16) WZ8 9873521 7990636 7990641 7990661 5 7990761 9878020
6 7990762 9878021
WC20 9873533
130…250 80…150 2,4 (3/32) WZ8 9873522 7990637 7990642 7990662 6 7990762 9878021
7 7990763 -
Gas lens equipment
Welding current Size 9878013
DC [A AC [A] Ø [mm (in)]
WC20 9873531
5…80 5…50 1,0 (.040) WZ8 9873520 7990635 7990640 7990700 4 7990779
5 7990780
WC20 9873532 4 7990779
70…150 30…100 1,6 (1/16) WZ8 9873521 7990636 7990641 7990701 5 7990780
6 7990781
WC20 9873533
130…250 80…150 2,4 (3/32) WZ8 9873522 7990637 7990642 7990702 6 7990781
7 7990782
XXXX Delivery only ex works. By deliveries ex works you have to pay the real delivery costs.
Data in table are given only as a guide.
TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W and TTC 250WS
are TIG welding torches designed for demanding use. They are suitable to be used with the
Mastertig MLS welding machines.
