EN-16

Section VIII - Schematics

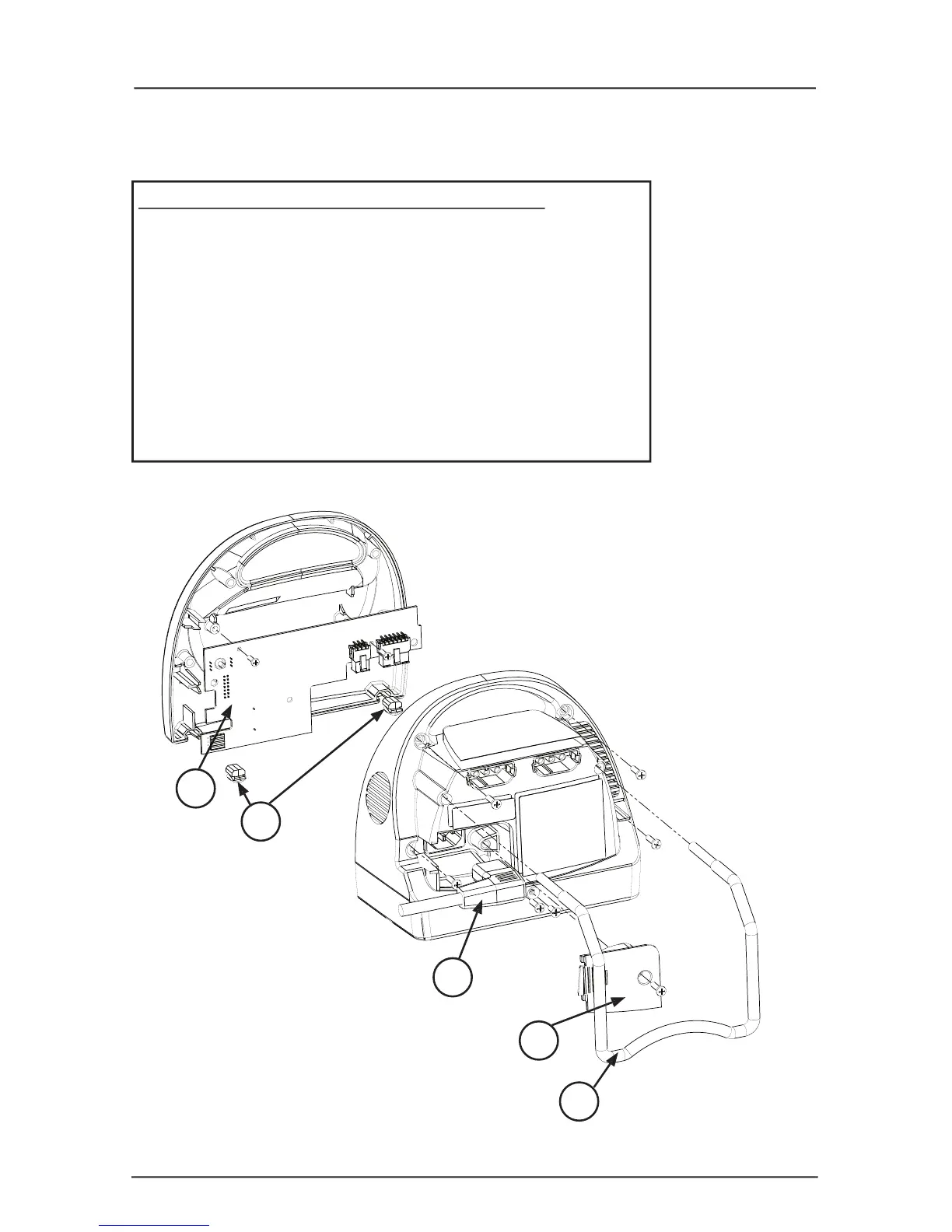

Figure 1 -

Parts Assembly Diagram -

Exploded View

1. Front Membrane Panel

2. Front Enclosure

3. Main Controller Board

4. Valve/Manifold Assembly

5. Wire Barrier

6. Compressor Assembly

7. Power Supply Board

8. Fuses (Set of 2)

9. Muﬄ er

10. Fan

11. Fan Screen

12. Rear Enclosure

13. Rubber Feet (Set of 2)

14. Battery Pack

15. Power Cord

16. Cord Capture Door

17. Bed Hook

Controller Parts List
