kENDALL SCD EXPRESS - Symbols and Front Panel Overview; Front Panel Display Indicators

EN-2

REF
SN


C
US
L
U
C
L
A
S
S
I
F
I
E
D
®
Explanation of Symbols Used
Refer to Accompanying
Documents
Type BF Protection Against
Electronic Shock
Manufacturing Date Code
Underwriters Laboratories
(UL) Classifi cation mark for
Canada and the United States
Controller Serial Number
Reorder number for the device
located on the carton label
Vascular Refi ll Detection
occurring while illuminated
CE Mark
0123

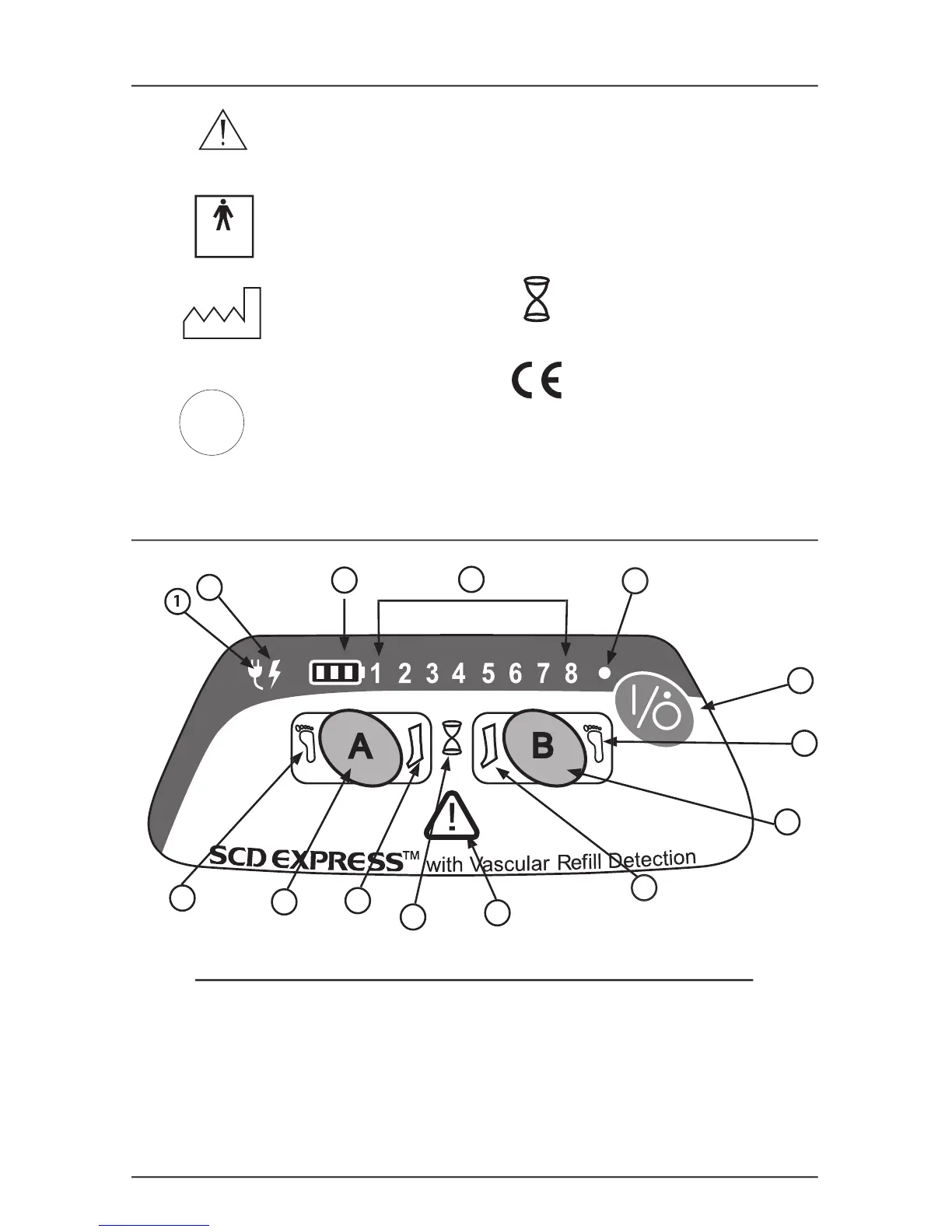

Front Panel Display
1
4
8
7
6
3
10
11
12
Item Explanation Item Explanation
5
9
13
14
2
1 AC Power Indicator
2 Battery Charging Indicator
3 Battery Status Indicators 1-3
4 Test Mode/Error Code Indicators 1-8
5 Power On Indicator
6 Power On/Standby Button
7 Port B Foot Indicator
8 Port B Garment Confi guration Button
9 Port B Leg Indicator
10 Service Required Error Indicator
11 Vascular Refi ll Assess Indicator
12 Port A Leg Indicator
13 Port A Garment Confi guration Button
14 Port A Foot Indicator
