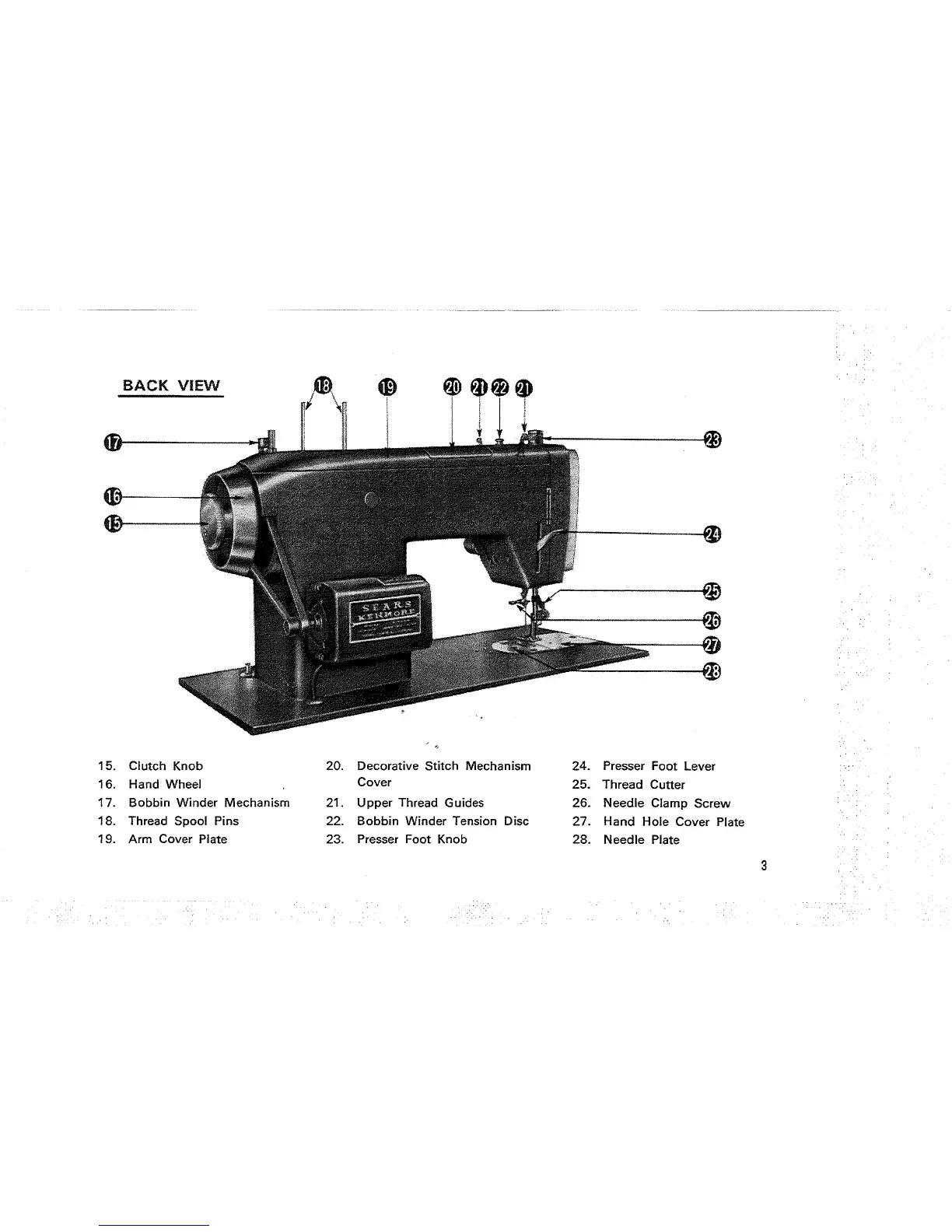

BACK VIEW
®
@
@
15. Clutch Knob
16. Hand Wheel
17. Bobbin Winder Mechanism
18. Thread Spool Pins
19. Arm Cover Plate
20. Decorative Stitch Mechanism
Cover
21. Upper Thread Guides
22. Bobbin Winder Tension Disc
23. Presser Foot Knob
24. Presser Foot Lever
25. Thread Cutter
26. Needle Clamp Screw
27. Hand Hole Cover Plate
28. Needle Plate

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kenmore 14 and is the answer not in the manual?

Kenmore 14 Specifications

General IconGeneral
BrandKenmore
Model14
TypeMechanical
Built-in Stitches14
Warranty25-year limited
Buttonhole Styles4-Step
