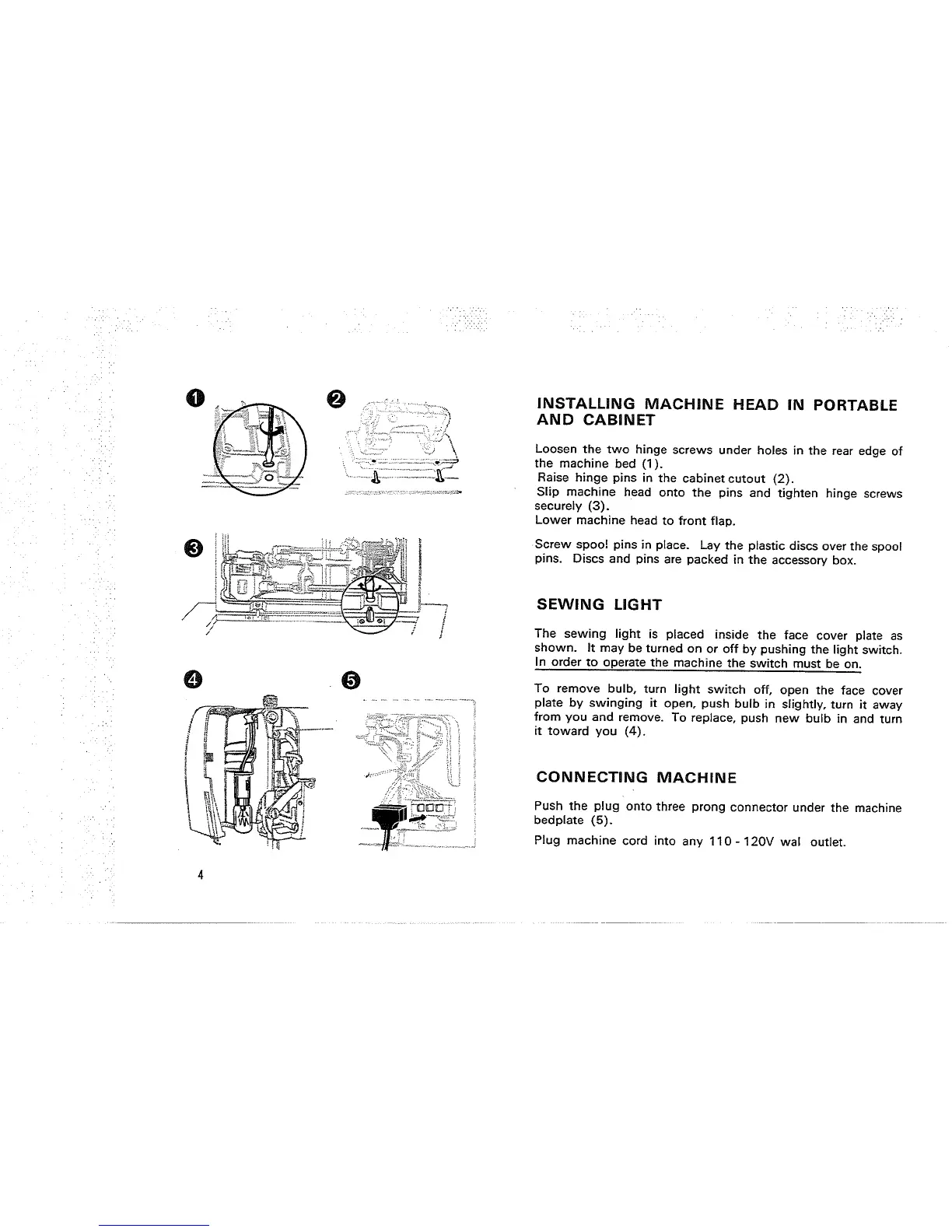

INSTALLING MACHINE HEAD IN PORTABLE
AND CABINET
Loosen the two hinge screws under holes in the rear edge of
the machine bed (1).
Raise hinge pins in the cabinet cutout (2).
Slip machine head onto the pins and tighten hinge screws
securely (3).
Lower machine head to front flap.
Screw spool pins in place. Lay the plastic discs over the spool
pins. Discs and pins are packed in the accessory box.
SEWING LIGHT
The sewing light is placed inside the face cover plate as
shown. It may be turned on or off by pushing the light switch.
In order to operate the machine the switch must be on.
To remove bulb, turn light switch off, open the face cover
plate by swinging it open, push bulb in slightly, turn it away
from you and remove. To replace, push new bulb in and turn
it toward you (4).
CONNECTING MACHINE
Push the plug onto three prong connector under the machine
bedplate (5).
Plug machine cord into any 110- 120V wa[ outlet.
