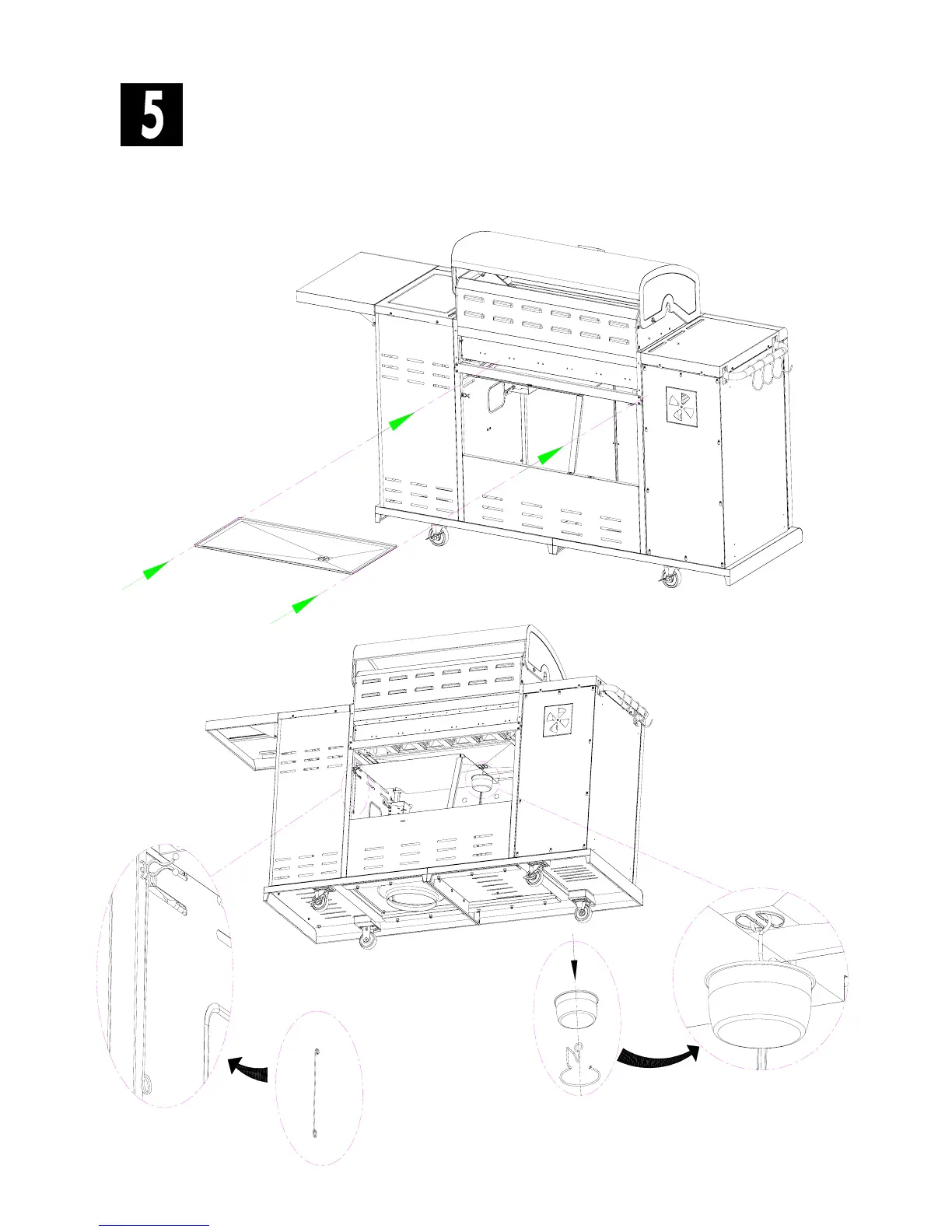

Grease Tray, Grease Cup and Match Holder
□ Take out the grease tray from back of firebox. Turn it over, and slide it into bottom of firebox
from back. Make sure the grease drainage hole is on the right side, as seen from back of the grill.
□ Place grease cup into grease cup clip. Hang grease cup from bottom of grease tray as shown.
□ Insert the nylon wire clamp into the hole in the rear of main cabinet left side panel as shown. Use
it to attach match holder to grill.
