Heat Diffusers, Cooking Grates and Warming Rack

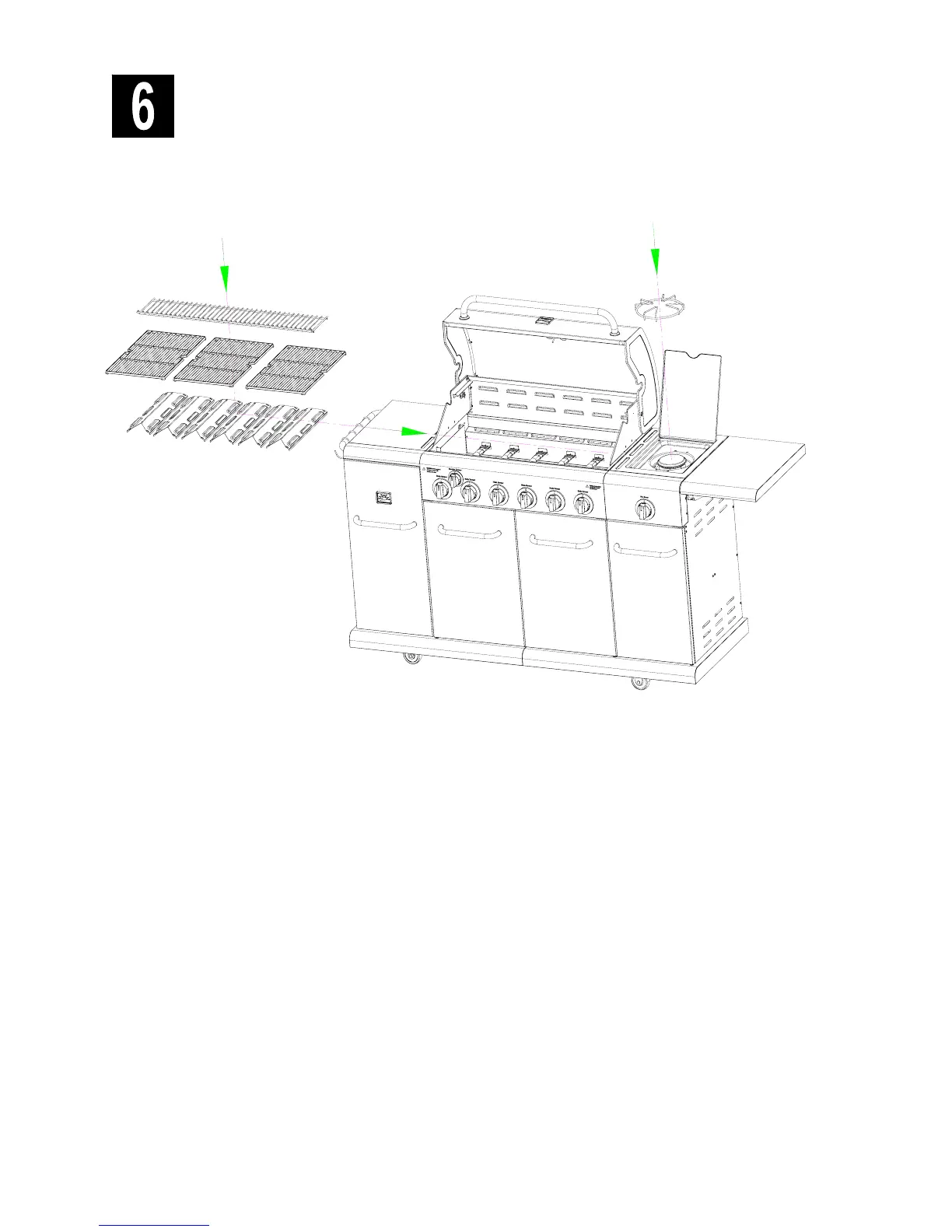

□ Place heat diffusers over main burners. The heat diffusers will fit in firebox in either direction. Fit
tabs in firebox front through slots in diffuser tips. Fit diffuser tips between tabs in firebox rear as
shown.
□ Place cooking grates onto grate rests at front and rear of firebox.
□ Insert warming rack with raised edge facing front into brackets at top of firebox.
□ Place side burner cooking grid onto the side burner.
