20

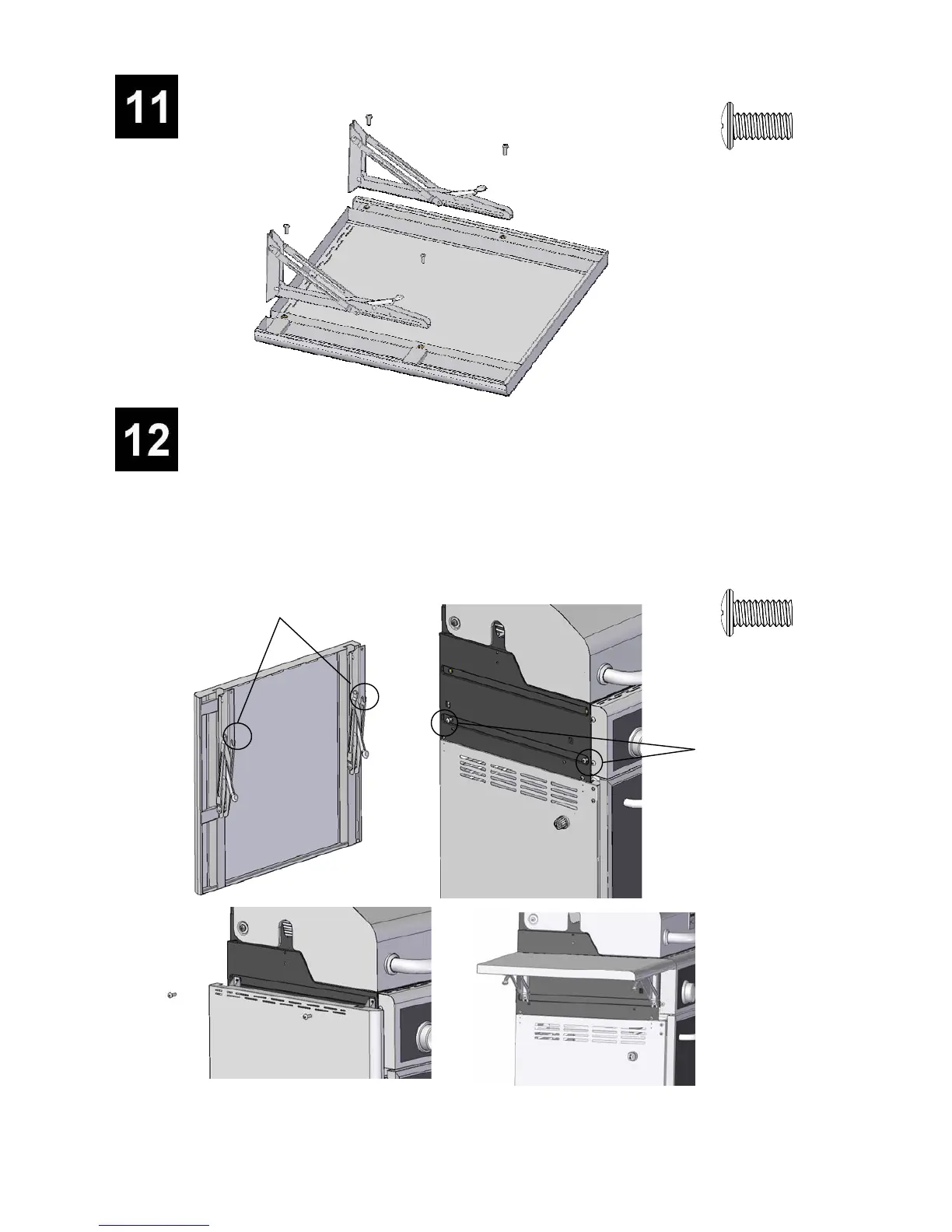

Install two wing mechanisms to each wing table with four screws as shown.
Install Wing Tables
Loosen the 2 screws (as shown) on each side of grill head 4 to 6 turns.
Slide the slot in each wing mechanism bracket over a loosened screw. Insert one 1/4-20 x 3/4 in.
screw through hole in each wing mechanism bracket and tighten to grill head. Note: Attach each wing
table so that rounded edge faces front. Raise each table until it locks into position as shown. Tighten
all four previously loosened screws.
Note: Check wing tables to see if level. If not, add washers from hardware pack beneath screws as
needed.
1/4-20 x 3/4 in. Screw
Qty. 4
3/16-24 x 5/8 in. Screw
Qty. 8
Loosen the two screws
Slide slots over screws
To Next Page
