Kenmore 16677 - Serger Sewing Machine User Manual

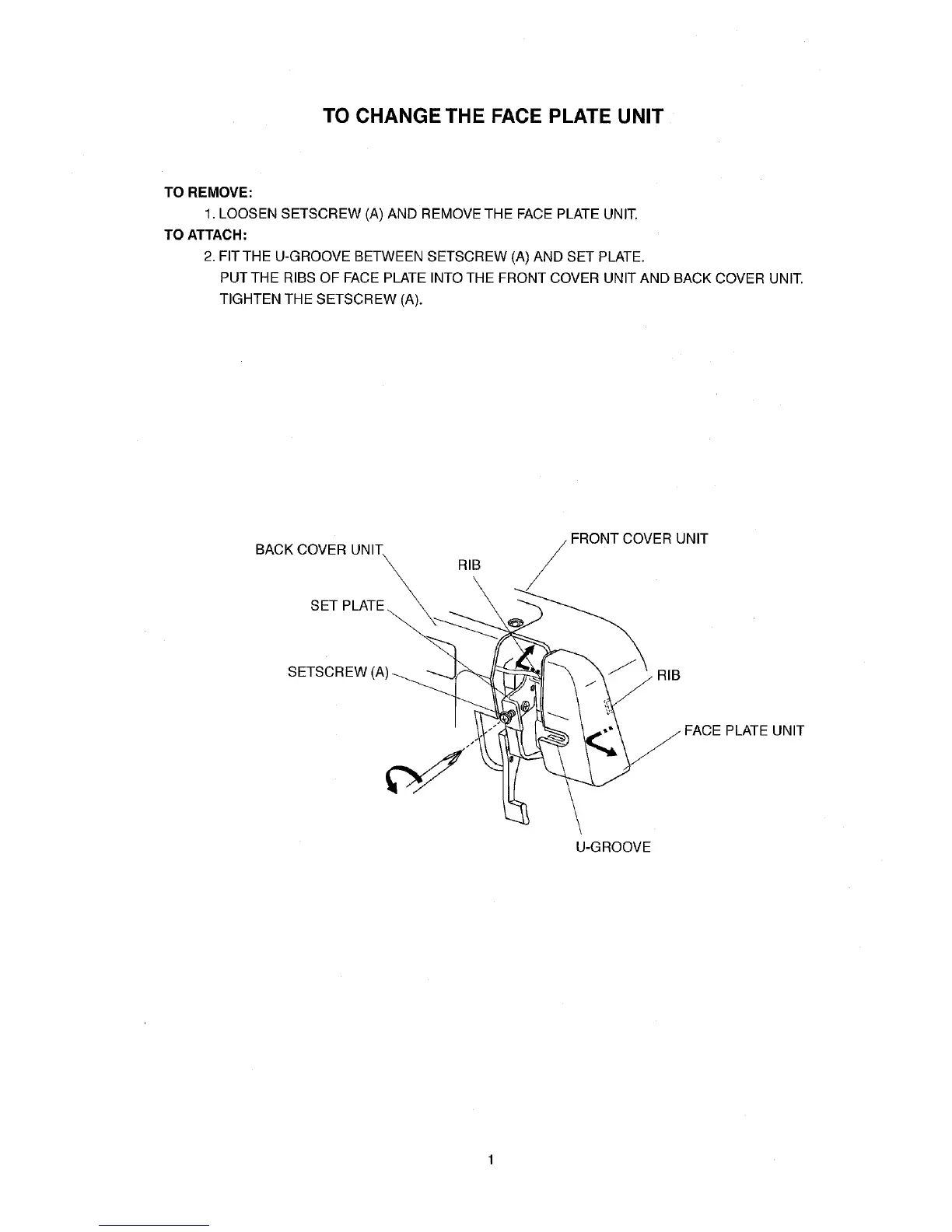

TO CHANGE THE FACE PLATE UNIT
TO REMOVE:
1. LOOSEN SETSCREW (A) AND REMOVE THE FACE PLATE UNIT.
TO ATTACH:
2. FIT THE U-GROOVE BETWEEN SETSCREW (A) AND SET PLATE.
PUT THE RIBS OF FACE PLATE INTO THE FRONT COVER UNIT AND BACK COVER UNIT.
TIGHTEN THE SETSCREW (A).
BACK COVER UNIT_
RIB
FRONT COVER UNIT
SETSCREW RIB
FACE PLATE UNIT
U-GROOVE

Kenmore 16677 - Serger Sewing Machine Specifications

General

Model	16677
Speed	1300 stitches per minute
Differential Feed	Yes
Built-in Rolled Hem	Yes
Type	Serger
Stitch Options	Rolled Hem
Number of Needles	2
Threading	Color-coded
Warranty	25-year limited warranty
