ENGLISH
- 7 -

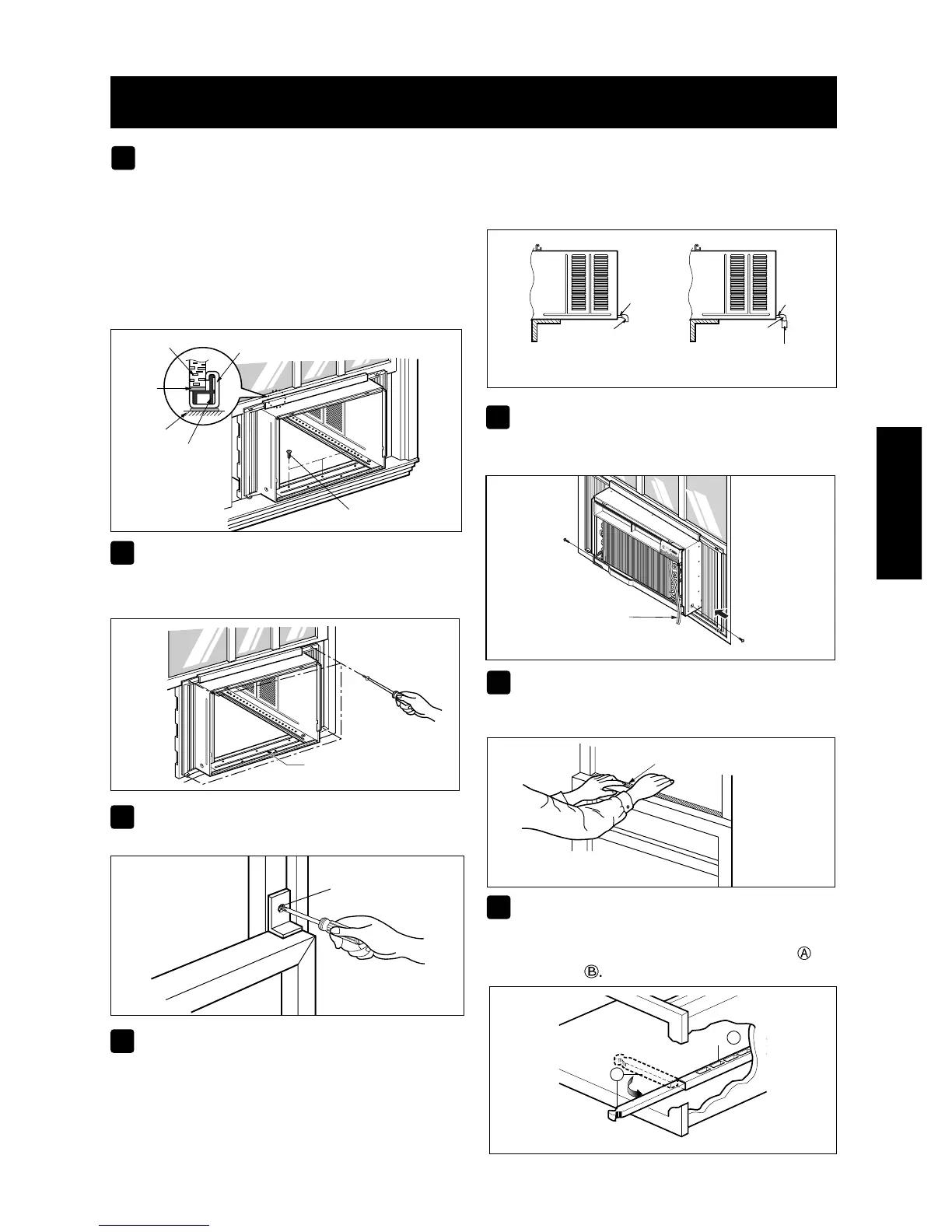

INSTALLATION
Pull the bottom window sash down behind the
upper guide until they meet.
NOTE:
•
Do not pull the window sash down so tightly that the
movement of sliders is restricted. Attach the cabinet
to the window inner sill by driving the screws (ITEM F)
through the cabinet into window inner sill.
•
The cabinet should be installed with a very slight tilt
downward by 1/4" from level.
Expand side curtains to fill opening.
Attach each side curtain to the window sash using 4
screws (ITEM G). (FIG. 11)
Attach the window locking bracket
(ITEM L)
with
a screw
(ITEM G)
. See FIG. 12.
DRAINAGE
A drain hole is provided at the rear of the air
conditioner unit. Select a drain method according to
the following.
• Remove the hole rubber from the base-pan.
• Connect a drain elbow of 9/16" inside diameter to
the drain pipe.
• Connect a drain hose of 9/16" inside diameter to the
drain elbow. (Drain hose is not supplied.)
Slide the air conditioner into the cabinet. (FIG. 14)
CAUTION: For security purposes, reinstall side
screws that were removed in step 1.
Cut the foam stripl
(ITEM K)
to the proper length
and insert between the upper window sash and the
lower window sash. (FIG. 15)
Adjust the vent handle before the decorative
front is attached. (FIG. 16)
Straighten the lever, as shown. Pull down part
to
align with part
