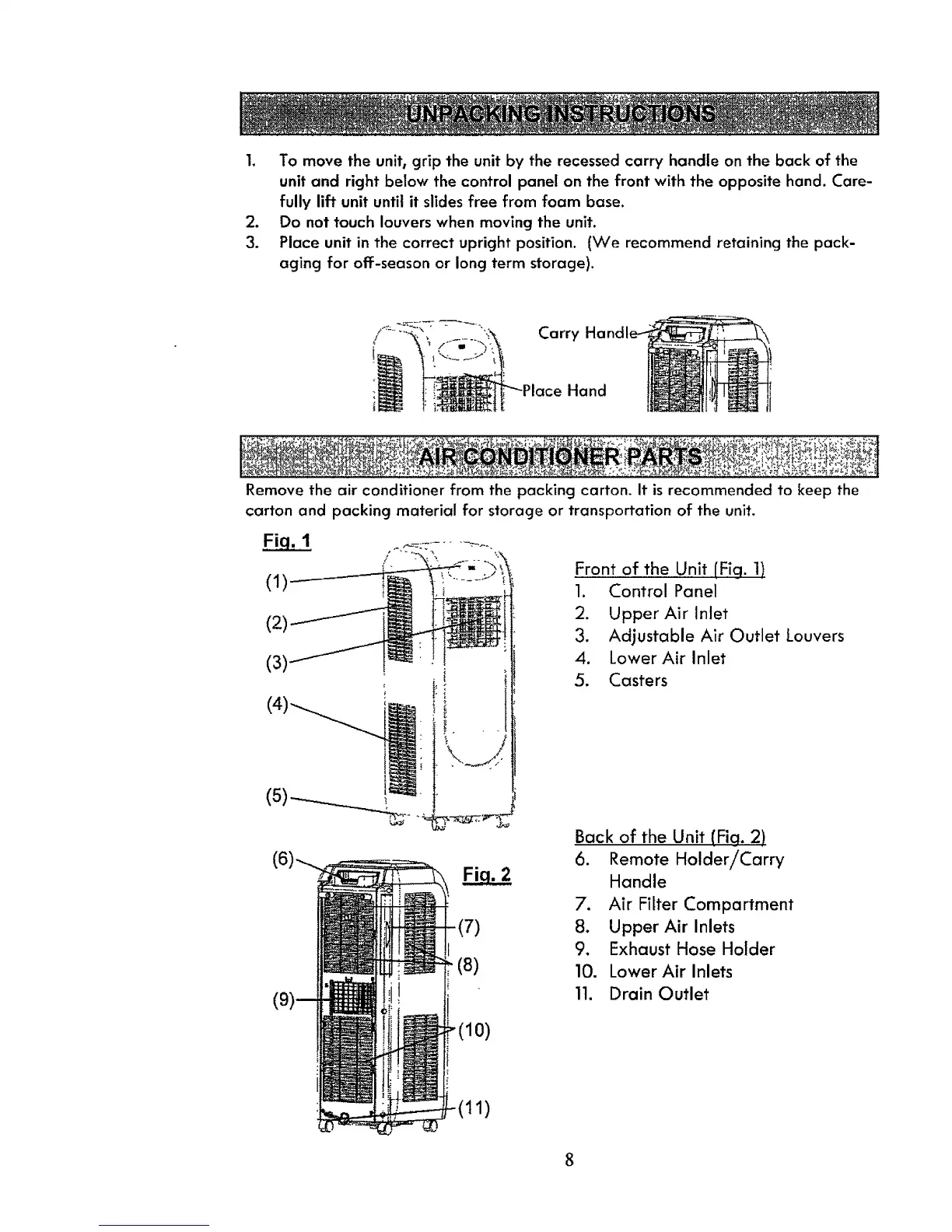

1. Tomovetheunit,grip the unitby therecessedcarry handleonthebackofthe
unitandrightbelowthecontrolpanelonthefrontwiththe oppositehand.Care-
fully lift unituntil it slides free from foam base.
2. Do not touch louvers when moving the unit.
3. Place unit in the correct upright position. (We recommend retaining the pack-
aging for off-season or long term storage).
Carry
Hand
.,_-_ , ._ . ._= _._4._.. . ;: _ _. . ,_:z_q_,< _.:_:_.r._:_._,._ .._,_ _:.
Remove the air conditioner from the packing carton. It is recommended to keep the
carton and packing material for storage or transportation of the unit.
(1)
/
(2)
(31
!.
(5)--_..__._.
-(7)
(8)
Front of the Unit [Fig. 1)
1. Control Panel
2. Upper Air Inlet
3. Adjustable Air Outlet Louvers
4. Lower Air Inlet
5. Casters
Back of the Unit (Fig. 2)
6. Remote Holder!Carry
Handle
7. Air Filter Compartment
8. Upper Air Inlets
9, Exhaust Hose Holder
10. Lower Air Inlets
11. Drain Outlet
